7-M9
L3130 · L3430 · L3830 · L4630 · L5030, WSM
STEERING

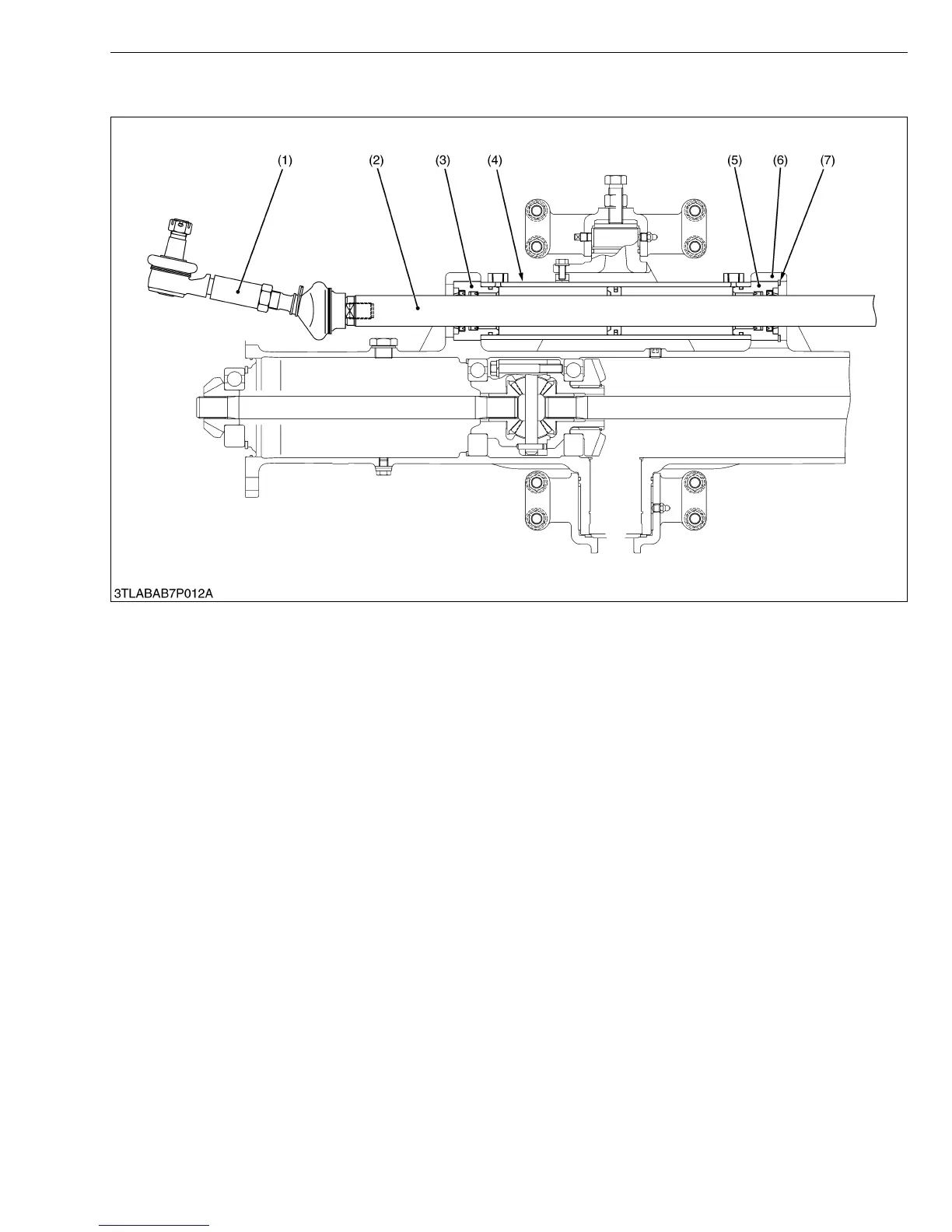

5. STEERING CYLINDER
The steering cylinder is single piston both rod double-acting type. This steering cylinder is installed parallel to the
front axle and connected to tie-rods.
The tie-rods connected to both knuckle arm guarantees equal steering movement to both front wheels.
The steering cylinder provides force in both directions. Depending upon direction the steering wheel is turned
pressure oil enters at one end of the cylinder to extend, or the other end to retract it, thereby turning front wheel of the
tractor.
(1) Tie-rod
(2) Piston Rod
(3) Head Cover
(4) Cylinder Tube
(5) Head Cover
(6) Front Axle Case
(7) Internal Snap Ring
