7-M8
L3130 · L3430 · L3830 · L4630 · L5030, WSM
STEERING

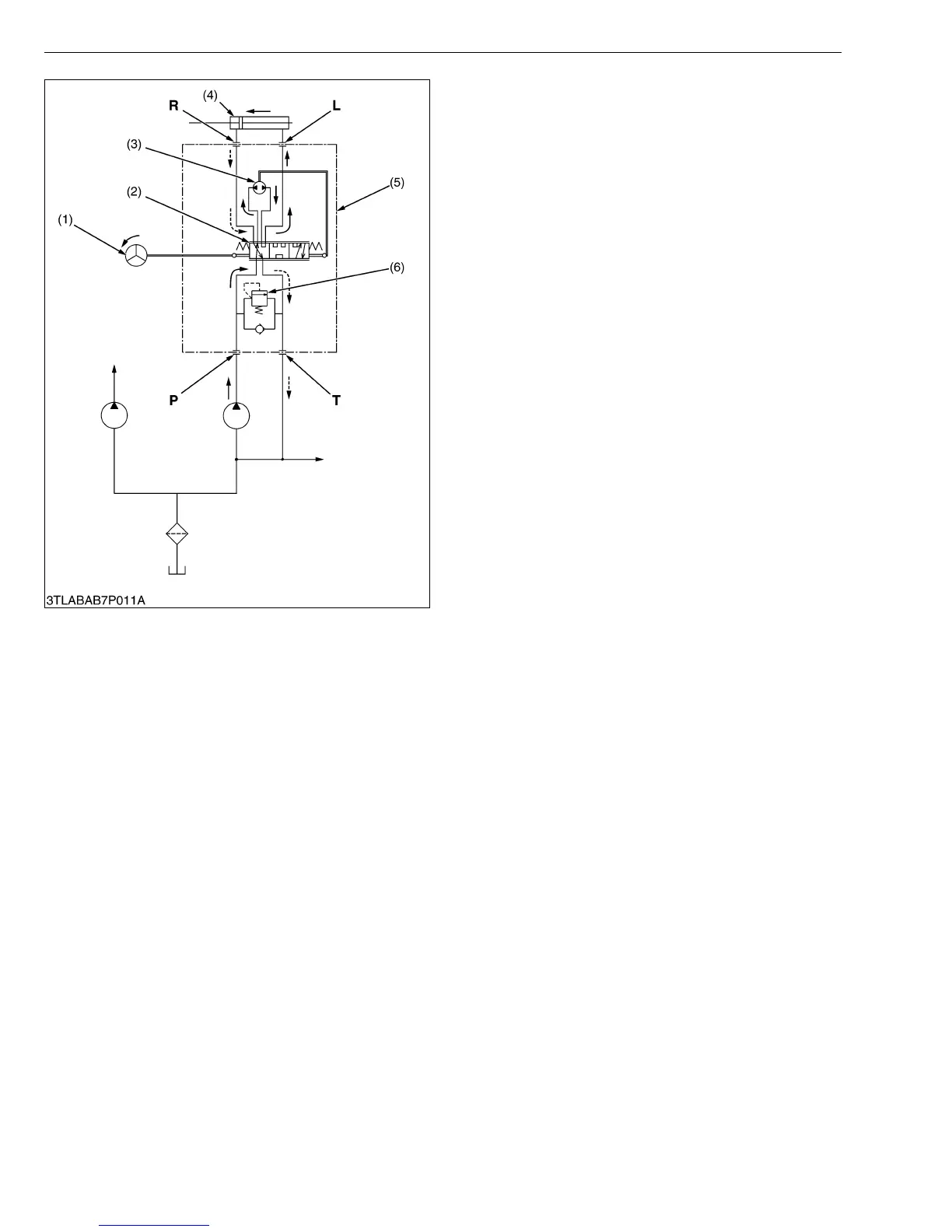

■ Left Turn
The steering system operates in the same way at a
left-turn as well, except that oil flows into and out of
steering cylinder in the directions opposite to those at a
right-turn.
W1013826
(1) Steering Wheel
(2) Valve Plate
(3) Gerotor
(4) Steering Cylinder
(5) Steering Controller
(6) Relief Valve
P : Pump Port
T : Tank Port
R : Cylinder Port R
L : Cylinder Port L
