10-M1
L3130 · L3430 · L3830 · L4630 · L5030, WSM
CABIN
1. AIR CONDITIONER SYSTEM
[1] OUTLINE OF AIR CONDITIONING SYSTEM

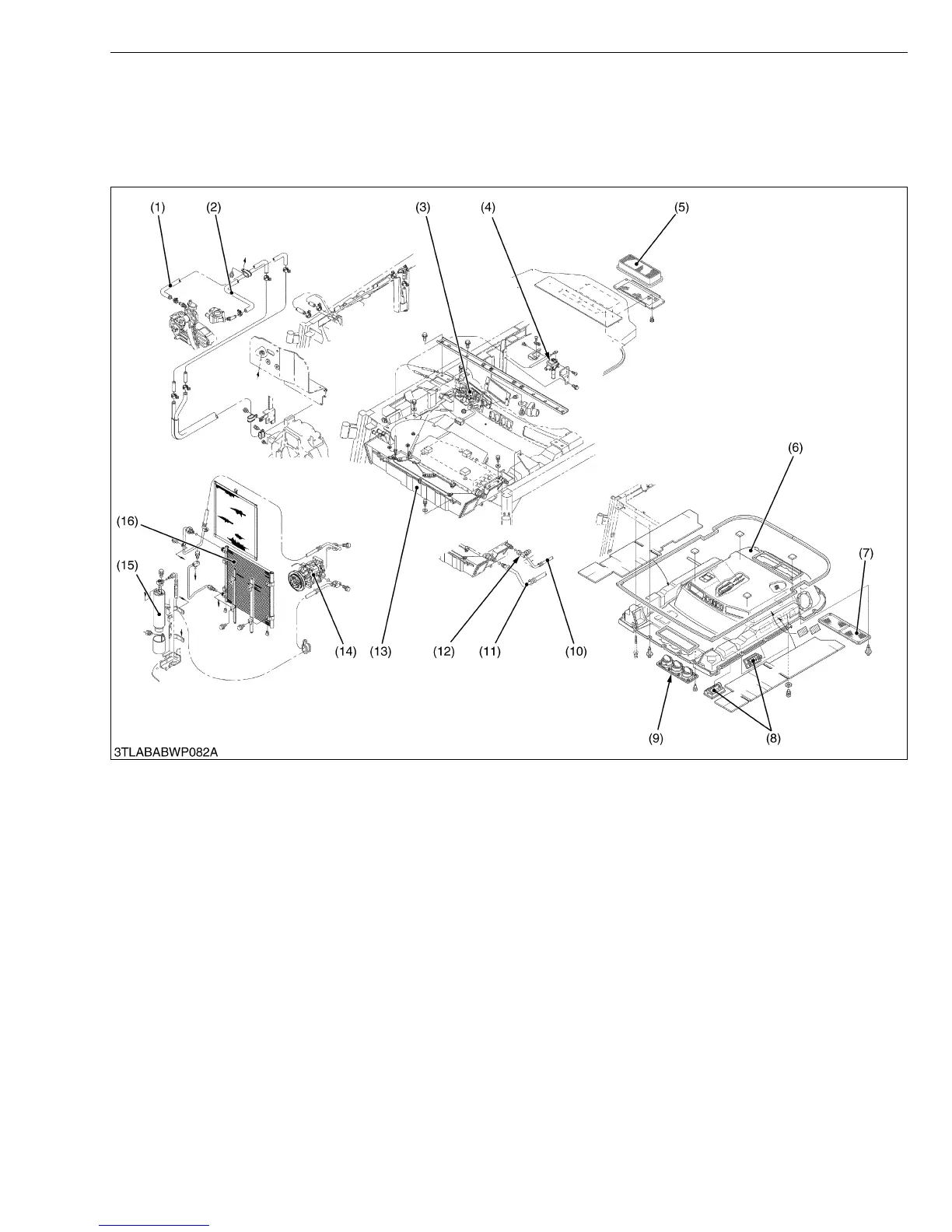

(1) A/C Model
(1) Heater Hose (Out Side)
(2) Heater Hose (In Side)
(3) Control Panel
(4) Water Valve
(5) Outside Air Filter
(6) Inner Roof
(7) Inside Air Filter
(8) Side Air Outlet
(9) Front Air Outlet
(10) High Pressure Pipe
(11) Low Pressure Pipe
(12) Pressure Switch
(13) Air Conditioner Unit
(14) Compressor
(15) Receiver
(16) Condensor
KiSC issued 02, 2007 A
