(5) Creep Gear Shift Lever

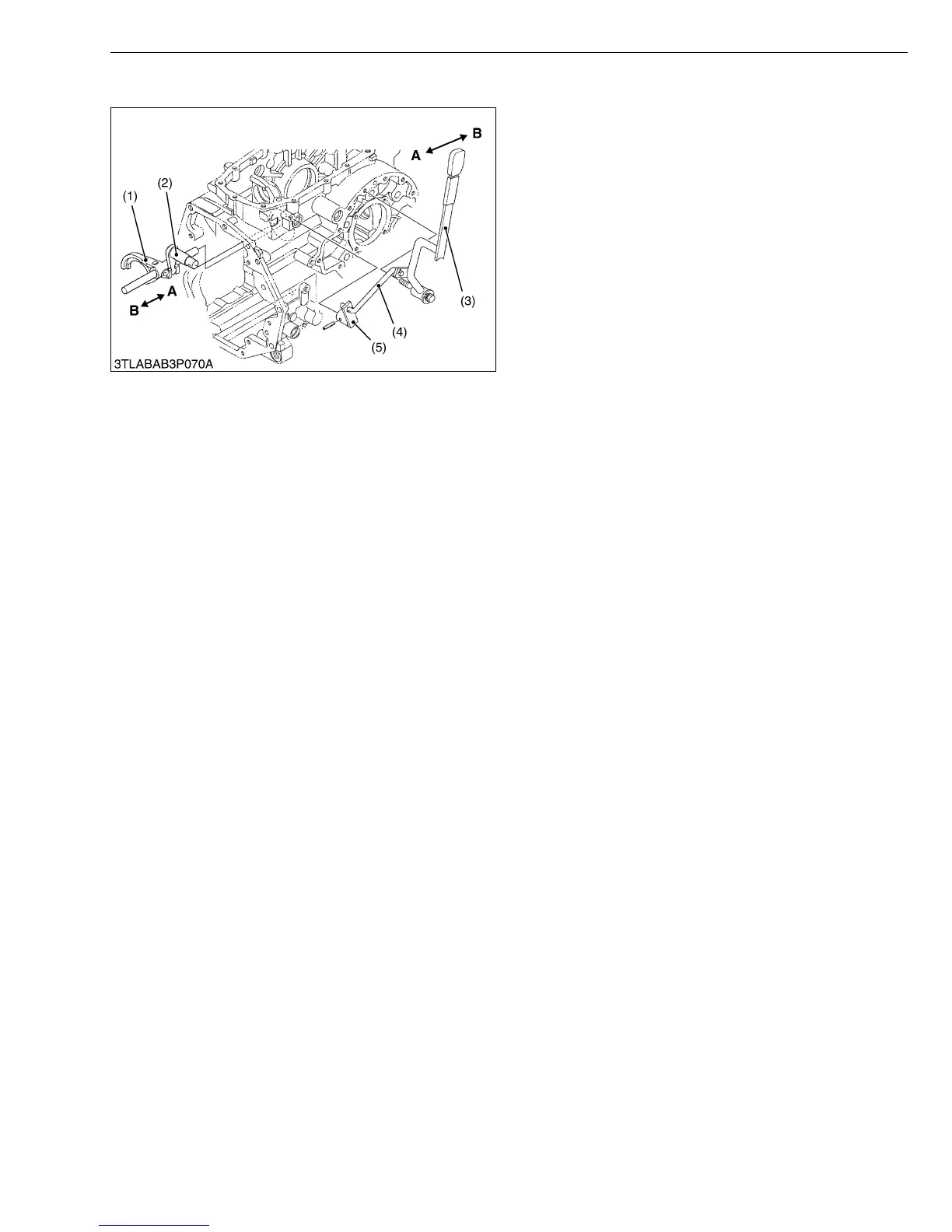

The links are connected from the shift lever (3) to the
shift fork (1) as shown in the left figure.
When the shift lever (3) is moved to the A side, the
shift fork (1) is moved to the A side by means of the rod
(4), sub-arm (5), and shift arm (2), thereby causing the
creep shift.
When the shift lever (3) is moved to the B side, the
shift fork (1) is moved to the B side to cause the normal
shift.
W1021330
(1) Shift Fork
(2) Shift Arm
(3) Shift Lever
(4) Rod
(5) Sub-arm
A : Creep Speed Shift
B : Normal Speed Shift
