[3] CHECK POINTS OF EVERY 50 HOURS
Greasing

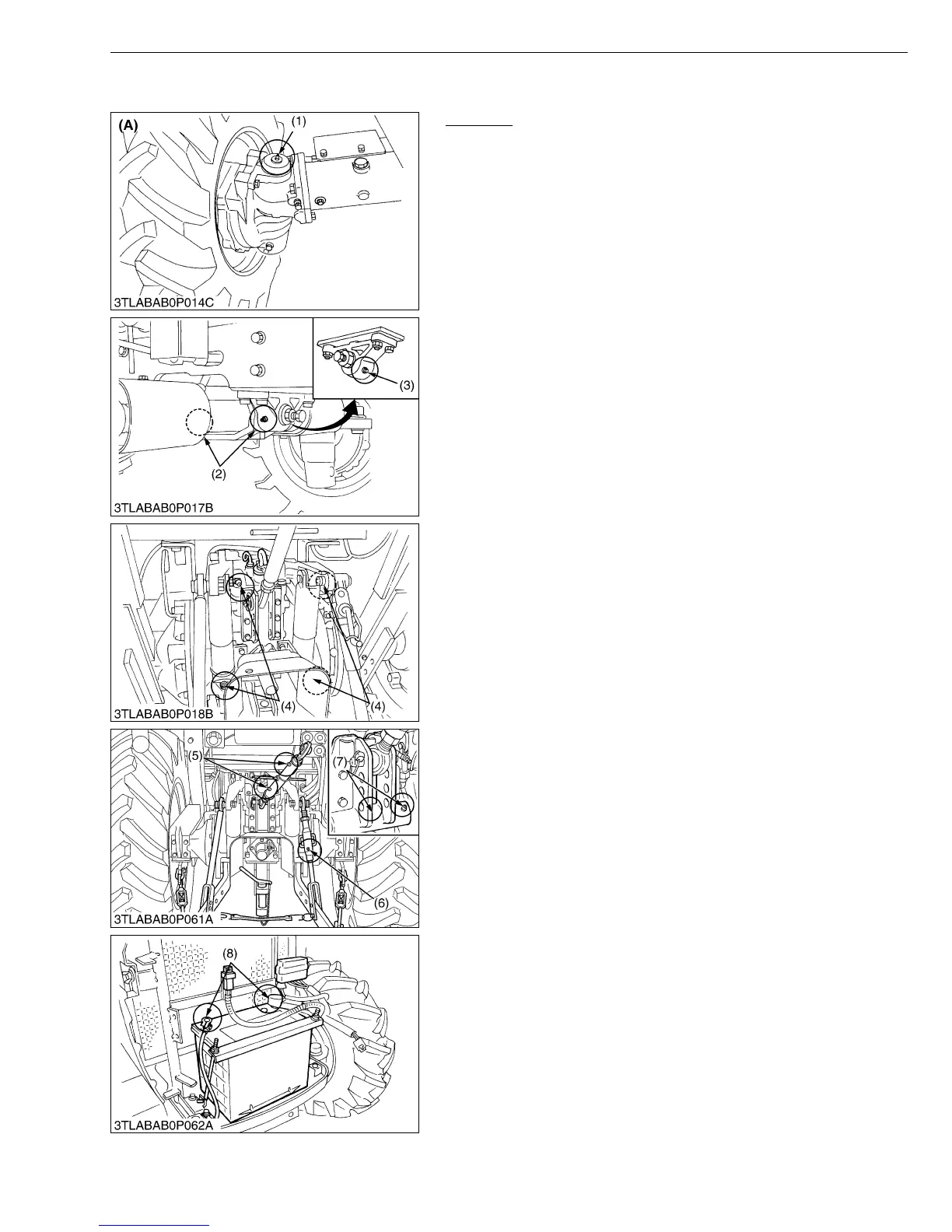

1. Apply a grease to the following position as figures.
NOTE■
• Apply a small amount of multipurpose grease to the
following points every 50 hours.
If you operated the machine in extremely wet and muddy
conditions, lubricate grease fittings more often.
• When apply a grease to the front axle support, remove the
breather plug and apply a grease until grease overflows
from breather plug. After greasing reinstall the plug.
W10308650
(1) Grease Fitting (Front Wheel Case
Support RH, LH)
(2) Grease Fitting (Front Axle Support)
(3) Breather Plug
(4) Grease Fitting (Lift Cylinder)
(5) Grease Fitting (Top Link)
(6) Grease Fitting (Lifting Rod RH)
(7) Grease Fitting (Toplink Bracket)
(8) Battery Terminal
(A) L5030
