4-S6
L3130 · L3430 · L3830 · L4630 · L5030, WSM
REAR AXLE

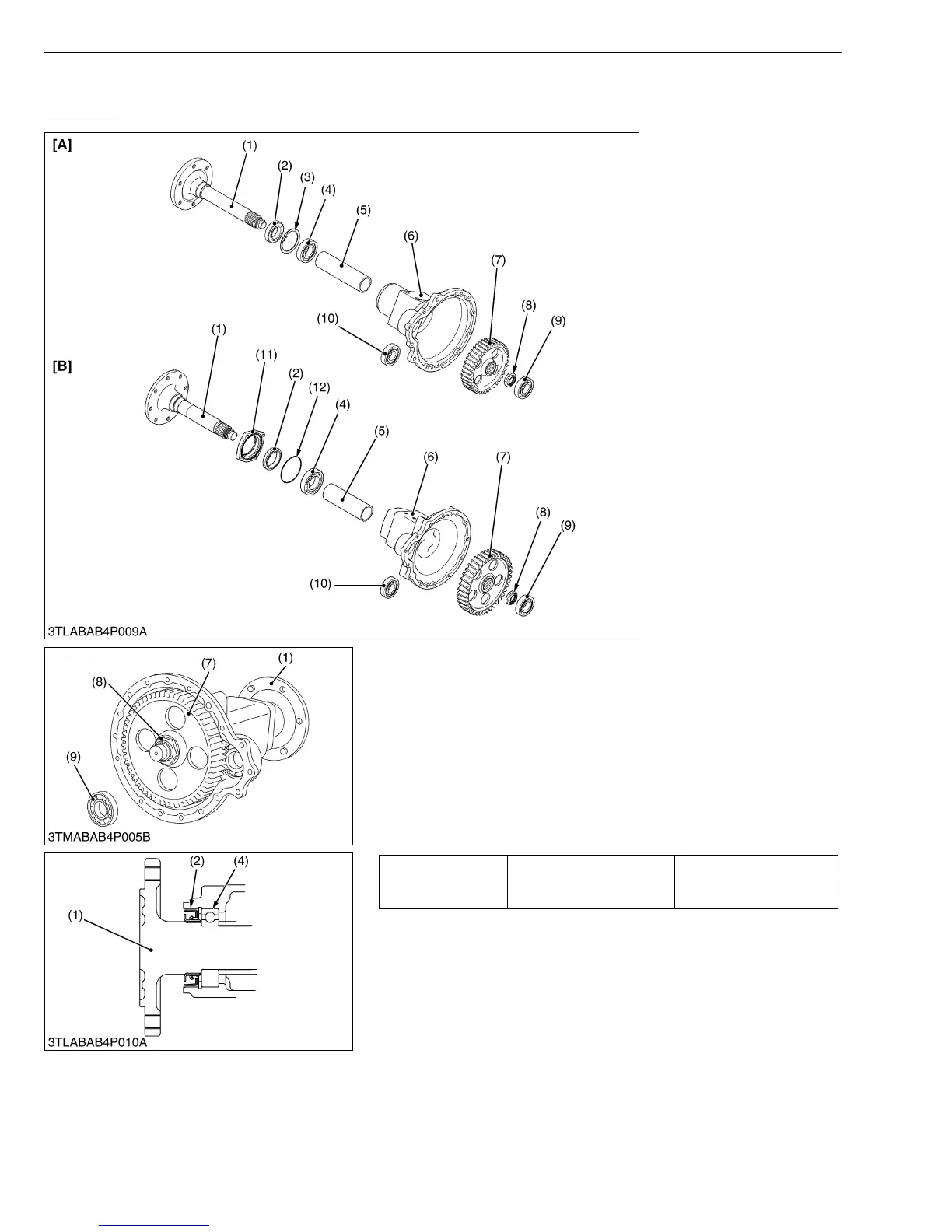

(2) Disassembling Rear Axle
Rear Axle
W10115940
1. Remove the ball bearing (9) with a puller.
2. Remove the stake of lock nut (8).
3. Secure the rear axle (1) in a vise and remove the lock nut.
4. Take out the gear (7) and spacer (5).
5. Tap out the rear axle (1).
6. Remove the rear axle cover (11). (L5030 only)
(When reassembling)
• Apply grease to the oil seal (2) and install it.
• Replace the lock nut with new one, and after tightening it to
specified torque, stake it firmly.
• Assemble the oil seal (2) with correct direction. (See figure.)
W10116810
(1) Rear Axle
(2) Oil Seal
(3) Internal Snap Ring
(4) Ball Bearing
(5) Spacer
(6) Rear Axle Case
(7) Gear
(8) Lock Nut
(9) Ball Bearing
(10) Ball Bearing
(11) Rear Axle Cover
(12) O-ring
[A] L3130, L3430, L3830,
L4630
[B] L5030
Tightening torque Lock nut
196 to 245 N·m
20 to 25 kgf·m
145 to 181 ft-lbs
