2-S6
L3130 · L3430 · L3830 · L4630 · L5030, WSM
CLUTCH

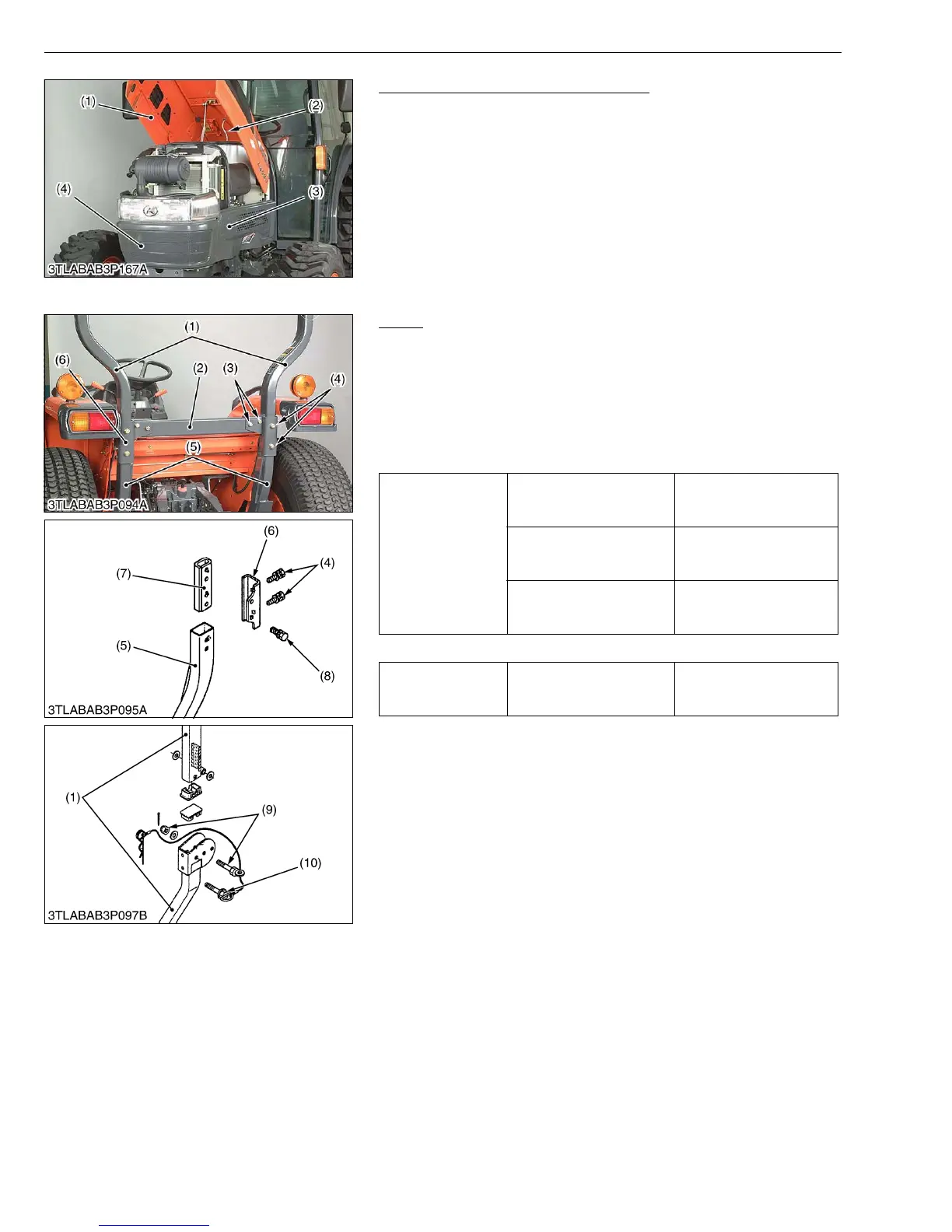

Battery, Front Grill, Skirt and Bonnet
1. Open the bonnet and disconnect the battery negative cable.
2. Disconnect the head light connector and remove the front grill (4).
3. Remove the left and right side skirts (3).
4. Disconnect window washer hoses (2). (Cabin model only.)
5. Remove the bonnet (1).
• When disconnecting the battery cords, disconnect the
negative cord first, when connecting, positive cord first.
W1018348
ROPS
1. Remove the lower connector (2).
2. Remove the plate mounting screws (4), (8).
3. Remove the upper frame (1) from ROPS lower frame (5).
(When reassembling)
• Do not firmly tighten all screws until most components are
attached.
(Reference)
W1015970
(1) Bonnet
(2) Window Washer Hose
(3) Skirt
(4) Front Grill
Tightening torque
Lower connector mounting
screw (3)
103 to 118 N·m
10.5 to 12.0 kgf·m
75.9 to 86.8 ft-lbs
Plate mounting screw (4)
138 to 147 N·m
14.0 to 15.0 kgf·m
102 to 108 ft-lbs
Plate mounting screw (8)
167 to 196 N·m
17.0 to 20.0 kgf·m
123 to 145 ft-lbs
Tightening torque Fulcrum bolt and nut (9)
118 to 137 N·m
12.0 to 14.0 kgf·m
86.8 to 102 ft-lbs
(1) Upper Frame
(2) Lower Connector
(3) Screw (M12 × 65)
(4) Screw (M14 × 40)
(5) Lower Frame
(6) Plate
(7) Connector
(8) Screw (M14 × 30)
(9) Fulcrum Bolt and Nut
(10) Lock Bolt
To Next Page
