3-S42
L3130 · L3430 · L3830 · L4630 · L5030, WSM
TRANSMISSION

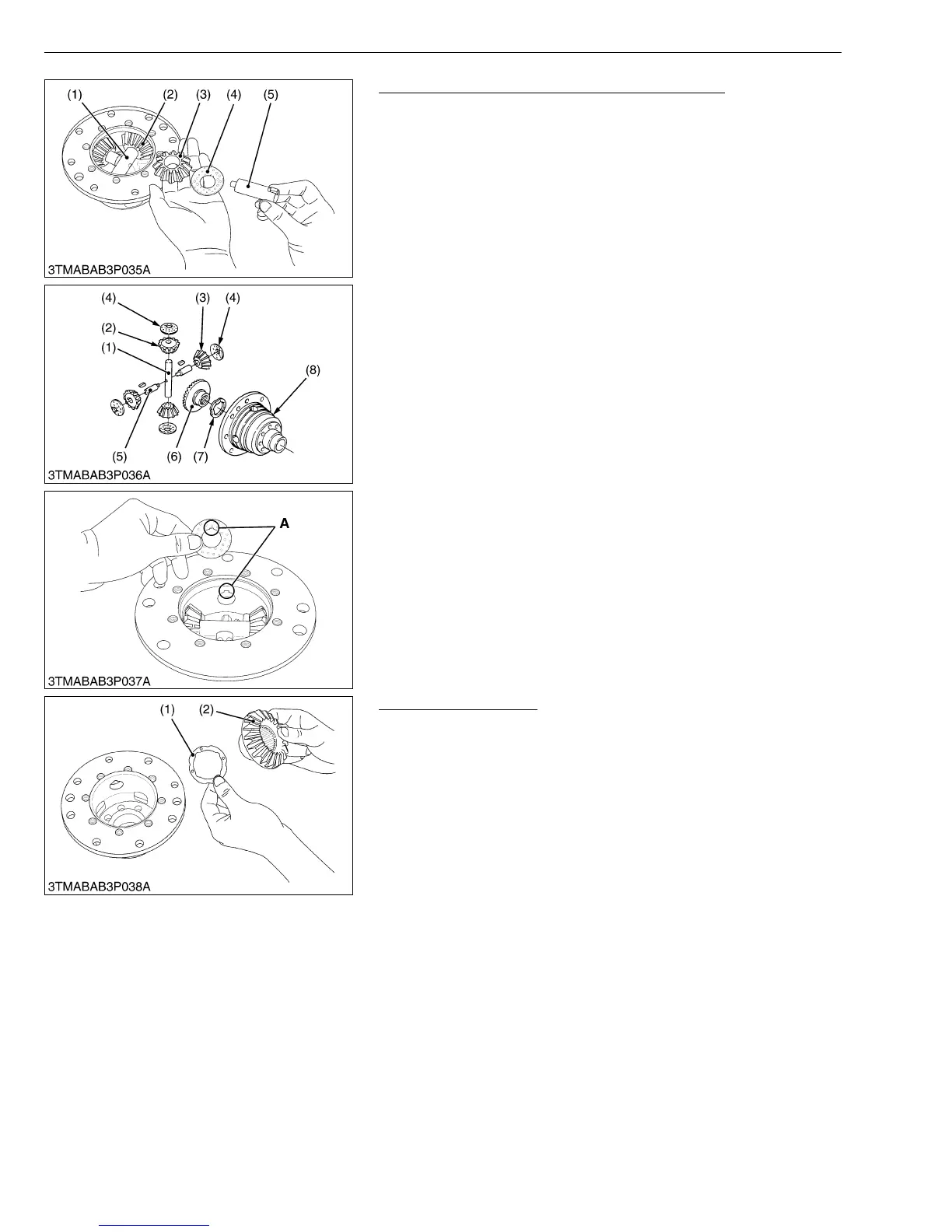

Differential Pinion Shaft and Differential Pinion
1. Draw out the differential pinion shaft 2 (5), and take out the
differential pinion (3) and differential pinion washer (4).
2. Draw out the differential pinion shaft (1), and take out the
differential pinion (2) and differential pinion washer.
• Arrange the parts to know their original position.
(When reassembling)
• Check the differential pinions (2) and (3), and pinion shaft (1) and
(5) for excessive wear. If these parts are damaged or
excessively worn, replace their parts they are in mesh with, or
they sliding on.
• Apply molybdenum disulfide (Three Bond 1901 or equivalent) to
the inner circumferential surface of the differential pinions.
• Install the parts to their original position.
• Install the differential pinion washer (4), noting its groove
position.
W10250420
Differential Side Gear
1. Take out the differential side gear (2) and differential side gear
washer (1).
(When reassembling)
• Check the thrust and bearing surface of both differential side
gears (2). If they are worn or damaged, bores in the differential
case may also be damaged. Be sure to replace their parts.
W10252580
(1) Differential Pinion Shaft
(2) Differential Pinion
(3) Differential Pinion
(4) Differential Pinion Washer
(5) Differential Pinion Shaft 2
(6) Differential Side Gear
(7) Differential Side Gear Washer
(8) Differential Case
A : Fit Groove
(1) Differential Side Gear Washer (2) Differential Side Gear
To Next Page
