3-S85
L3130 · L3430 · L3830 · L4630 · L5030, WSM
TRANSMISSION

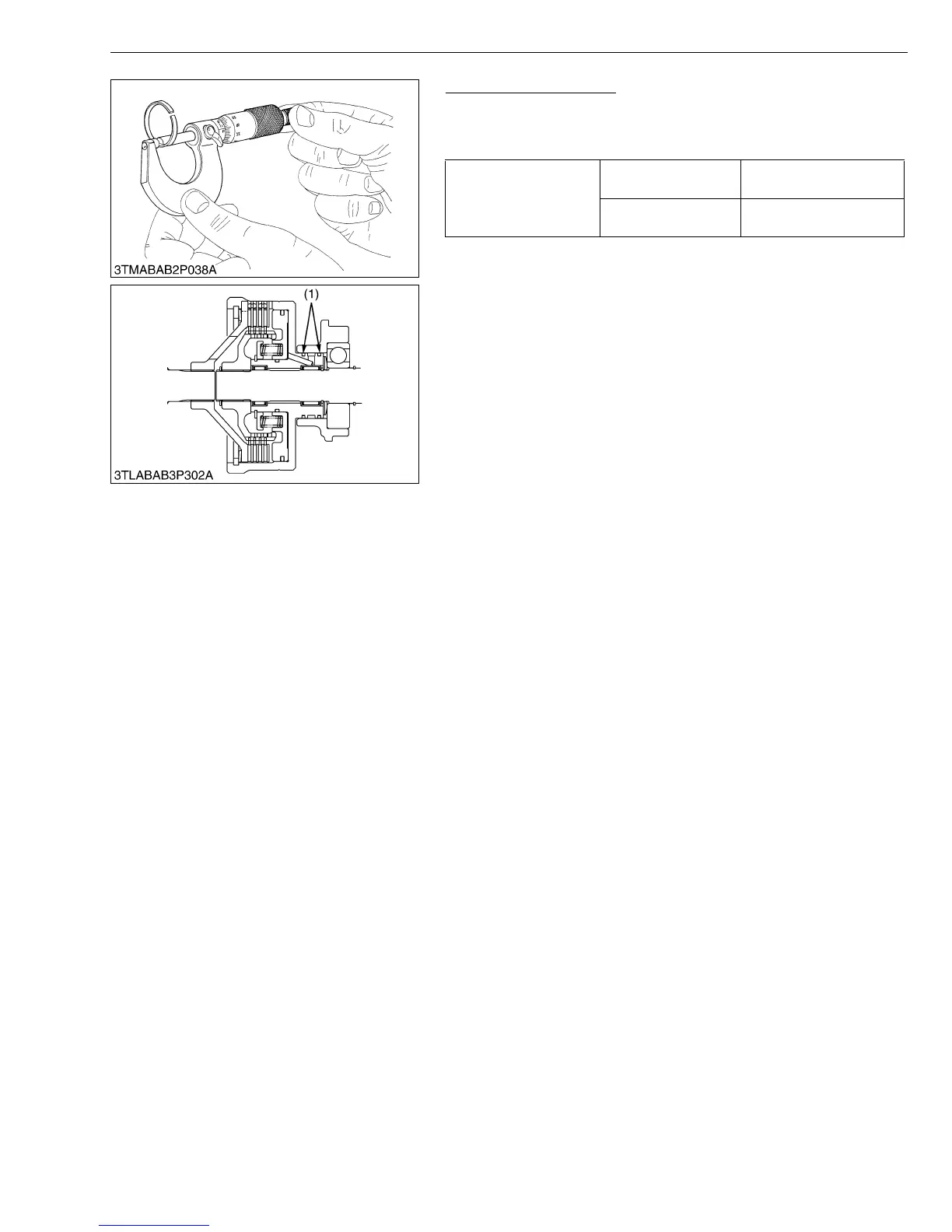

Thickness of Seal Ring
1. Measure the thickness of seal rings (1) with an outside
micrometer.
2. If the measurement is less than the allowable limit, replace it.
W1061536
Thickness of seal ring
Factory spec.
2.45 to 2.50 mm
0.096 to 0.098 in.
Allowable limit
2.0 mm
0.0079 in.
(1) Seal Ring
KiSC issued 02, 2007 A
