3-S113
L3130 · L3430 · L3830 · L4630 · L5030, WSM
TRANSMISSION
Shaft Assemblies

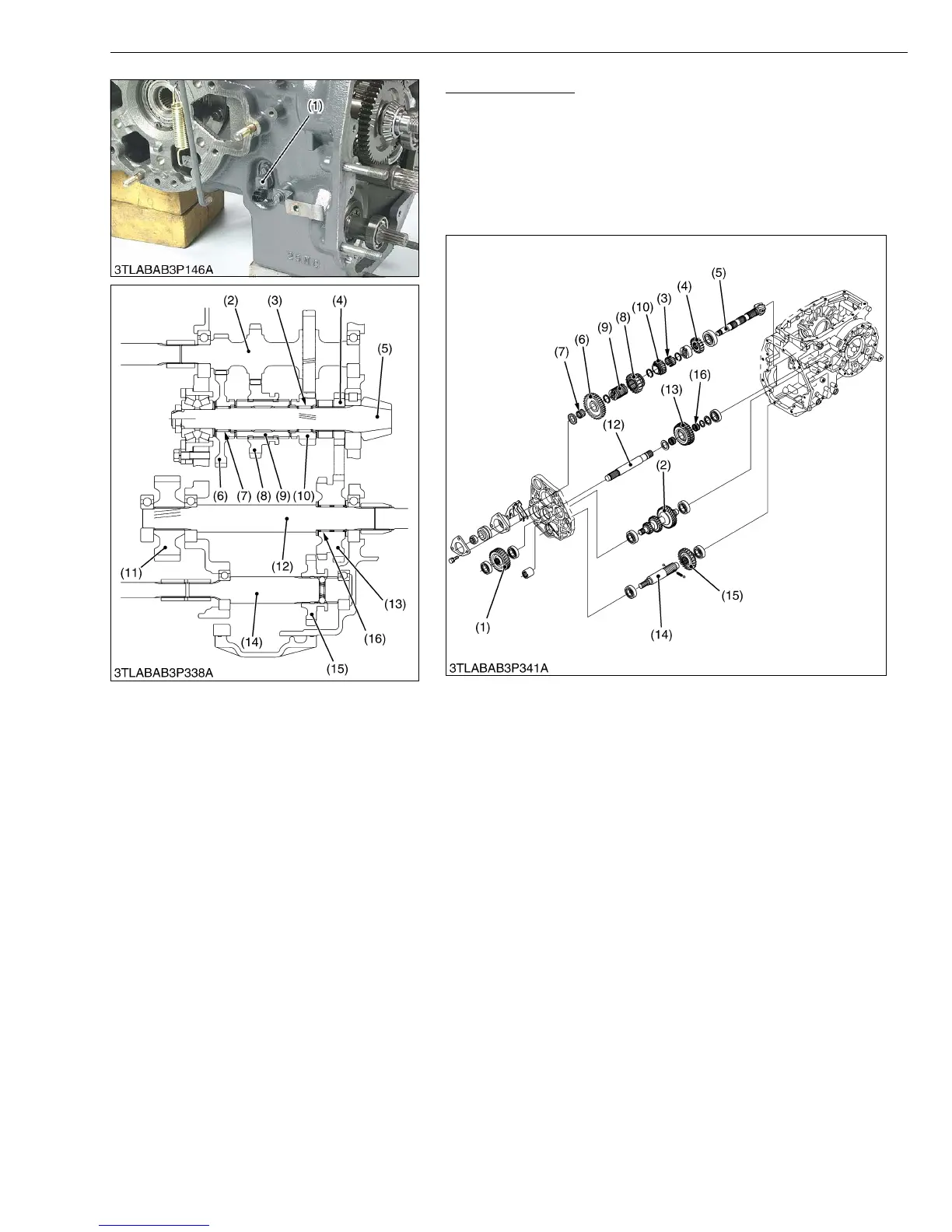

1. Remove the traveling speed sensor (1).
2. Take out the spiral bevel pinion shaft assembly (4) with shift fork
(6), range gear shaft assembly (5) and PTO drive shaft assembly
(3).
3. Take out the front wheel drive shaft (2).
(When reassembling)
• Apply transmission fluid to needle bearings (12).
W1268230
(1) Traveling Speed Sensor
(2) 19T-24T-31T Gear Shaft
(3) Needle Bearing
(4) 17T Gear
(5) Spiral Bevel Pinion Shaft
(6) 49T Gear
(7) Needle Bearing
(8) 32T Gear
(9) Spline Boss
(10) 17T Gear
(11) 11T Gear
(12) PTO Drive Shaft
(13) 29T-32T Gear
(14) Front Wheel Drive Shaft
(15) 24T Shifter Gear
(16) Needle Bearing
To Next Page
