6-S20
L3130 · L3430 · L3830 · L4630 · L5030, WSM
FRONT AXLE
Clearance between Bevel Gear Case Boss and Front Axle
Support Bushing (for L5030)

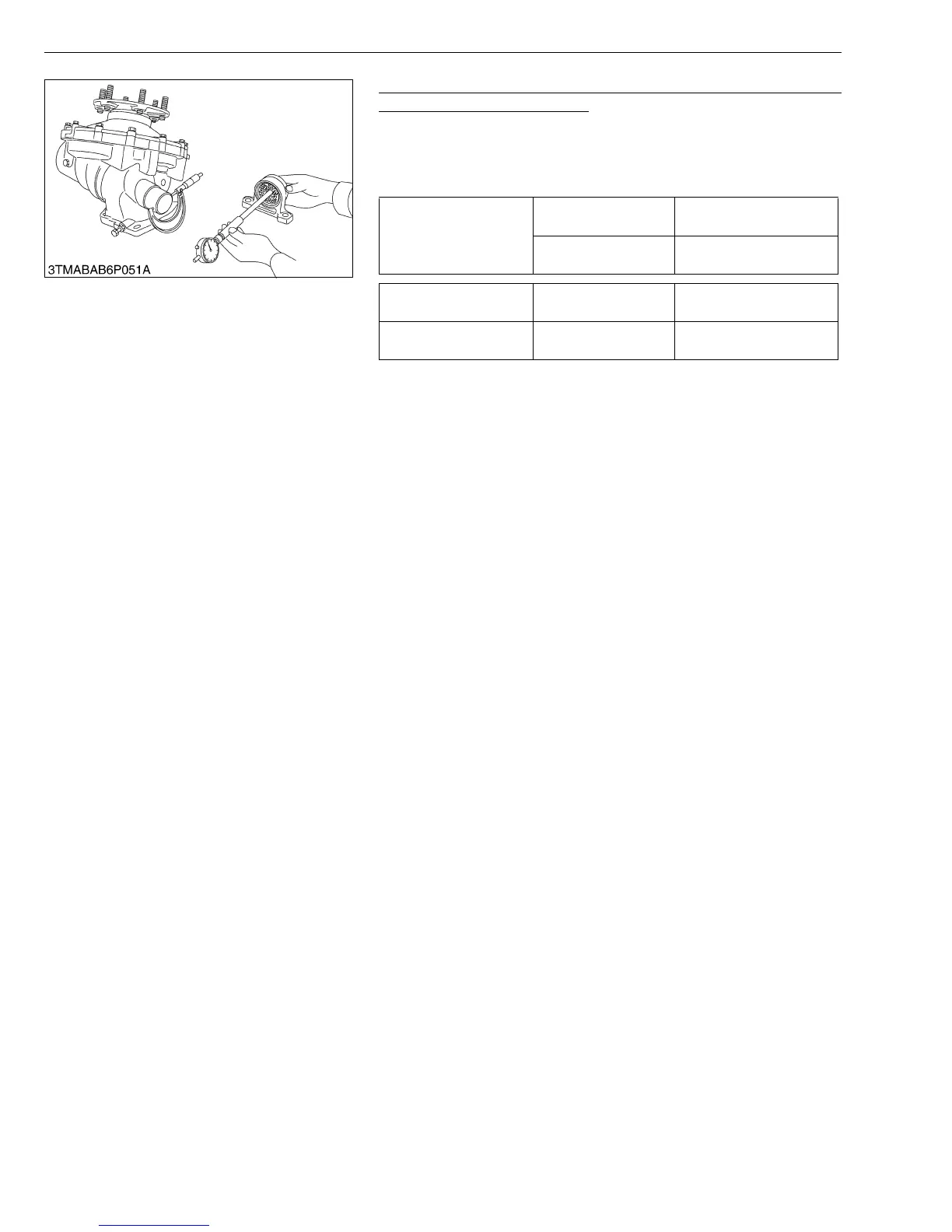

1. Measure the bevel gear case boss O.D. with an outside
micrometer.
2. Measure the support bushing I.D. and calculate the clearance.
3. If the clearance exceeds the allowable limit, replace it.
W10198060
Clearance between
bevel gear case boss
and front axle support
bushing
Factory spec.
0.080 to 0.232 mm
0.00315 to 0.00913 in.
Allowable limit
1.0 mm
0.03937 in.
Bevel gear case boss
O.D.
Factory spec.
54.970 to 55.000 mm
2.16417 to 2.16535 in.
Front axle support
bushing I.D.
Factory spec.
55.080 to 55.202 mm
2.16850 to 2.17331 in.
To Next Page
