8-M24
L3130 · L3430 · L3830 · L4630 · L5030, WSM
HYDRAULIC SYSTEM

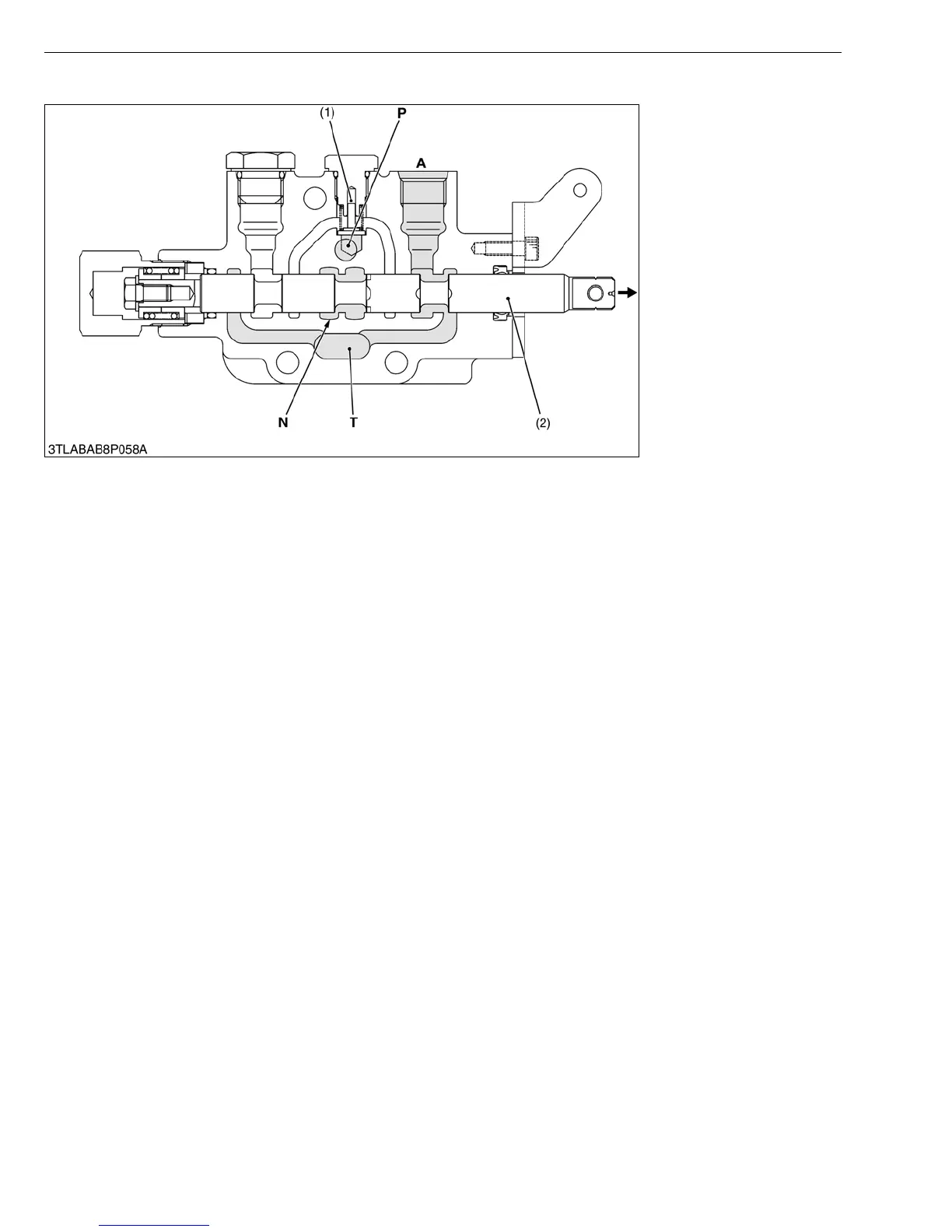

■ Down
When the spool (2) is moved in the direction of the arrow, return oil from the implement cylinder flows from the A
port.
(1) Check Valve
(2) Spool
A : A Port
(Implement Cylinder)
P : Pump Port
N : Neutral Port
T : Tank Port
KiSC issued 02, 2007 A
