G-28
L3130 · L3430 · L3830 · L4630 · L5030, WSM
G GENERAL

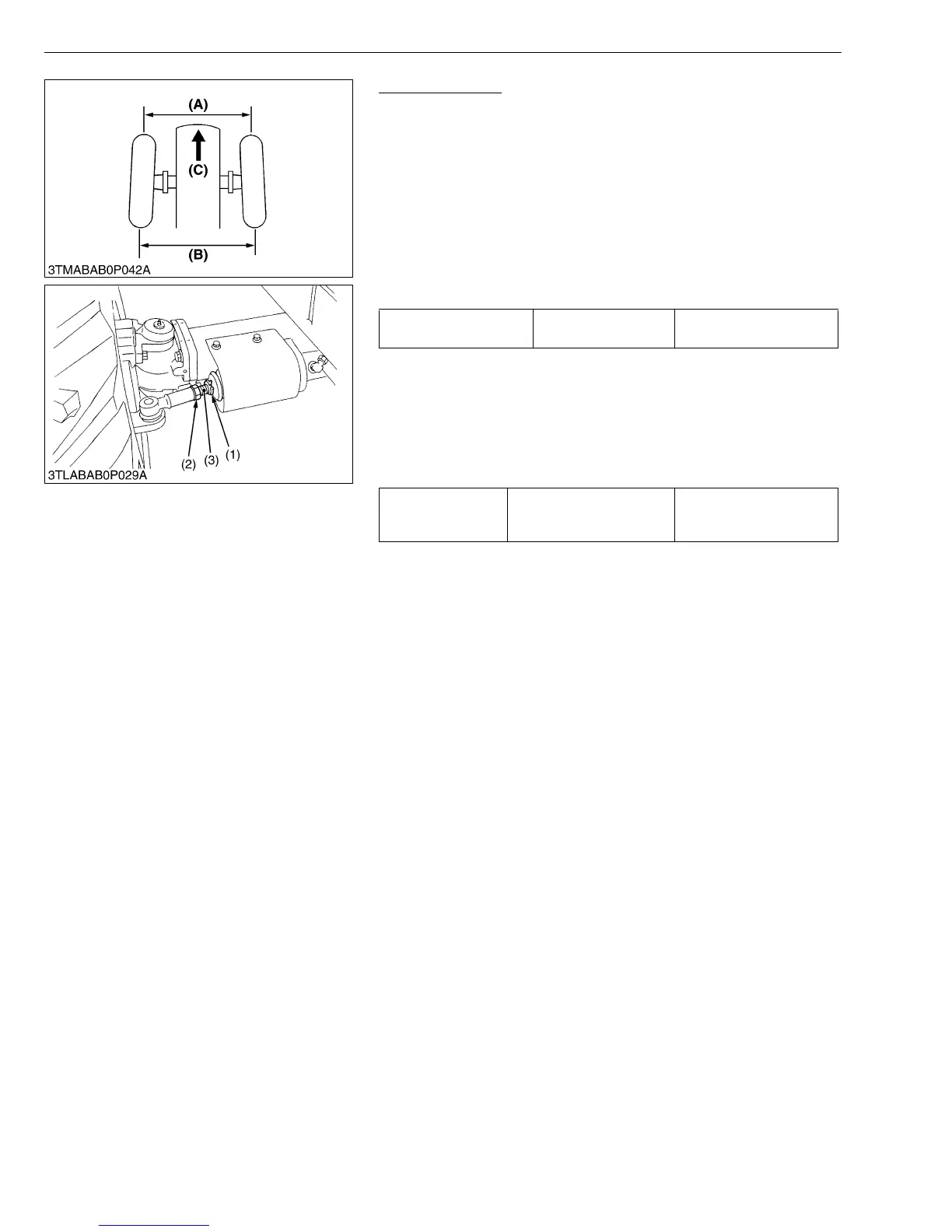

Adjusting Toe-in
1. Park the tractor on the flat place.
2. Inflate the tires to the specified pressure.
3. Turn steering wheel so front wheels are in the straight ahead
position.
4. Lower the implement, lock the parking brake and stop the engine.
5. Measure distance between tire beads at front of tire, hub height.
6. Measure distance between tire beads at rear of tire, hub height.
7. Front distance should be 2 to 8 mm (0.079 to 0.315 in.) less than
rear distance.
8. If the measurement is not within the factory specifications, adjust
by changing the tie-rod length.
■ Adjusting
1. Detach the snap ring (1).
2. Loosen the tie-rod nut (2) and turn the tie-rod joint (3) to adjust
the tie-rod length until the proper toe-in measurement is
obtained.
3. Retighten the tie-rod nut (2).
4. Attach the snap ring (1) of the tie-rod joint.
• A right and left tie-rod joint is adjusted to the same length.
W1082751
Toe-in (B - A) Factory spec.
2 to 8 mm
0.079 to 0.315 in.
Tightening torque Tie-rod lock nut
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123 to 145 ft-lbs
(1) Snap Ring
(2) Tie-rod Nut
(3) Tie-rod Joint
(A) Wheel to Wheel Distance at front
(B) Wheel to Wheel Distance at rear
(C) Front
