9-M16
L3130 · L3430 · L3830 · L4630 · L5030, WSM
ELECTRICAL SYSTEM

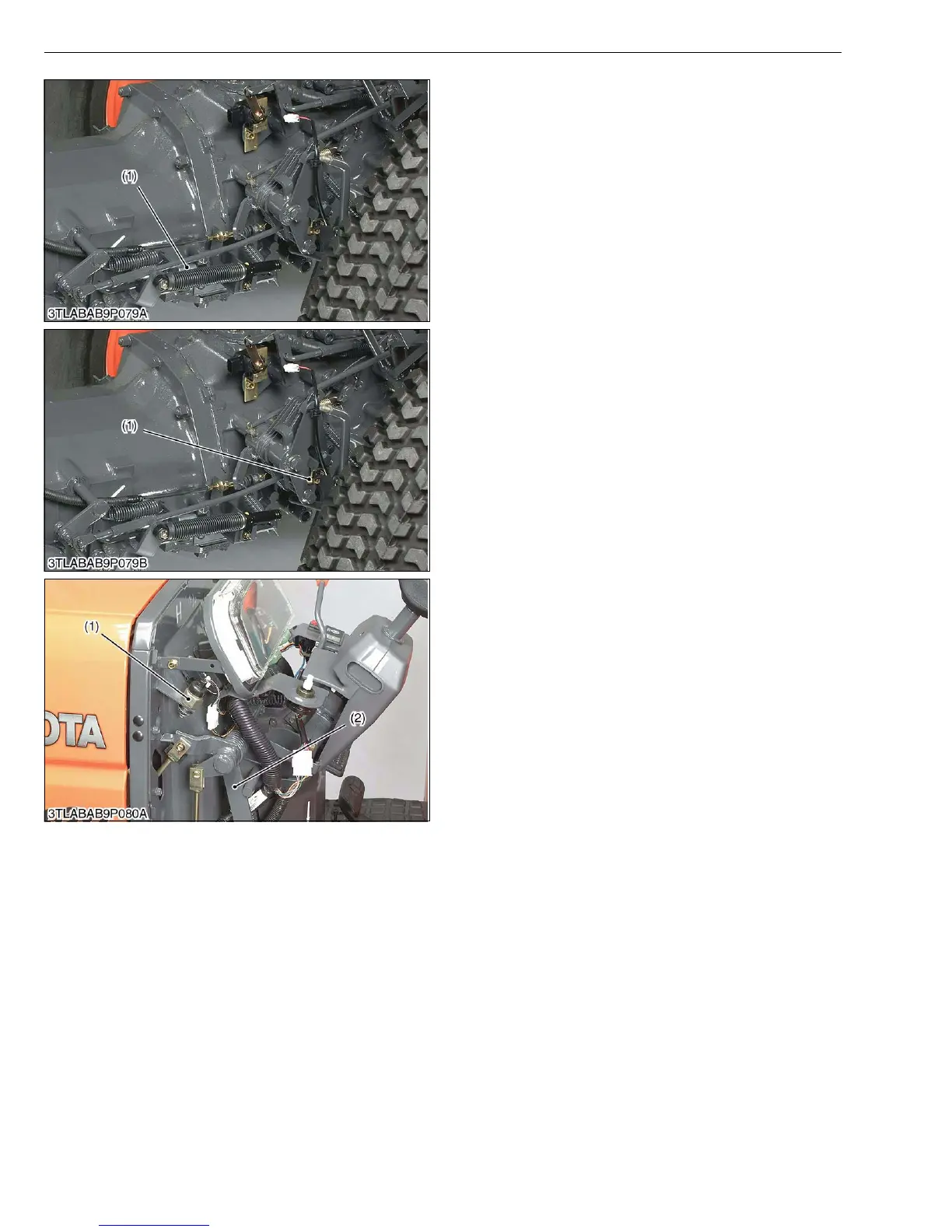

■ HST Pedal Neutral Switch : for HST Model
This switch (1) is mounted on the HST pedal link, and
is turned on when the HST pedal is in the neutral
position. It serves as a safety switch when the engine is
started.
W1015847
■ Cruise Control Switch : for HST Model
This switch (1) is mounted at the bottom of the cruise
lever assembly, and is turned on when the lever is
operated, thereby sending a signal to light up the pilot
lamp at the electronic instrument panel.
W1015910
■ Clutch Pedal Switch : for HST Model
This switch (1) is mounted close to the fulcrum of the
clutch pedal, and is turned on when the pedal is
depressed (clutch “OFF”). It serves as a safety switch
when the engine is started.
W1014615
(1) HST Pedal Neutral Switch
(1) Cruise Control Switch
(1) Clutch Pedal Switch (2) Clutch Pedal
To Next Page
