9-S35
L3130 · L3430 · L3830 · L4630 · L5030, WSM
ELECTRICAL SYSTEM

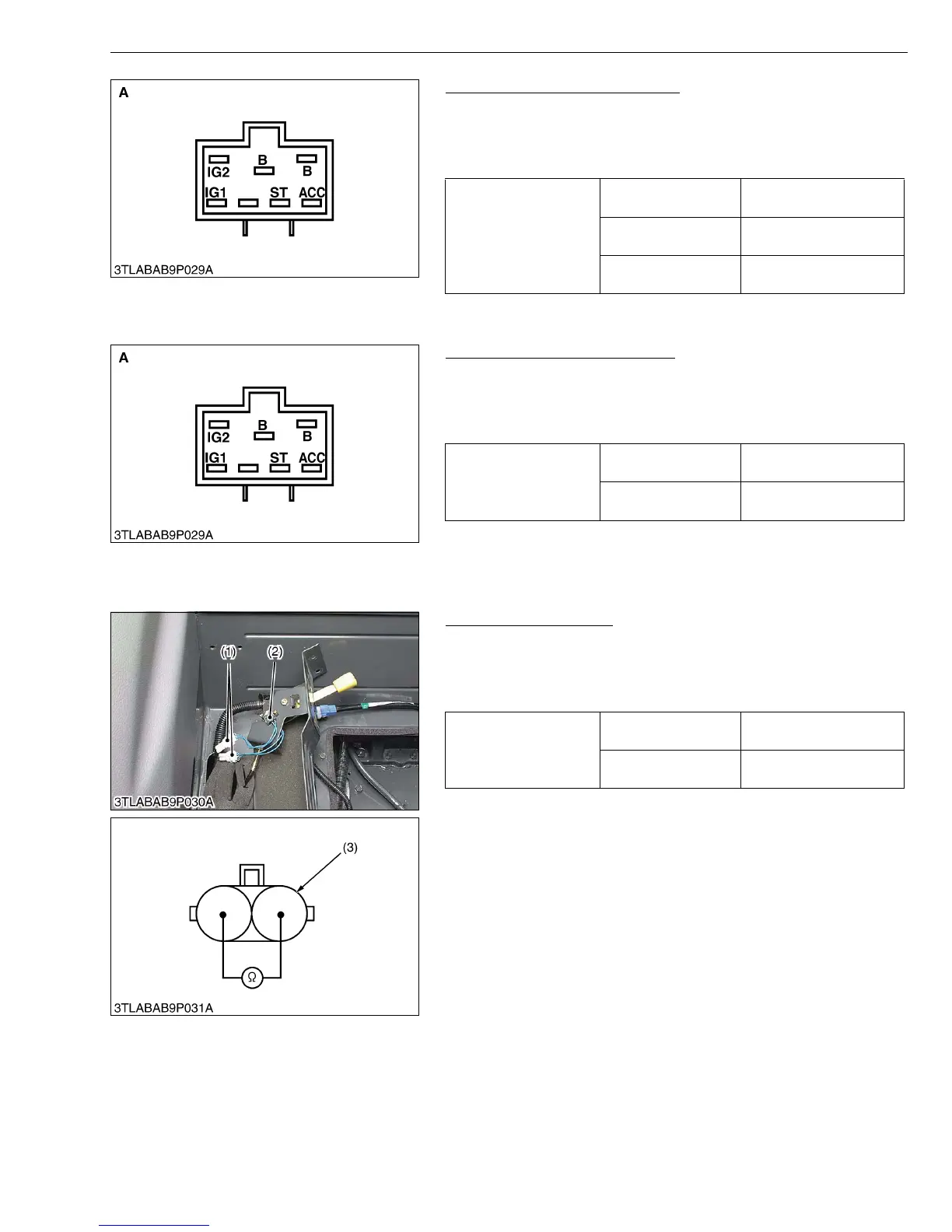

Main Switch at Key ON Position
1. Turn and hold the main switch at the ON position.
2. Measure the resistances between the terminal B and the terminal
ACC, the terminal IG1, the terminal IG2.
3. If 0 Ω is not indicated, renew the main switch.
W1014641
Main Switch at START Position
1. Turn and hold the main switch at the START position.
2. Measure the resistances between the terminal B and the terminal
IG1, the terminal ST.
3. If 0 Ω is not indicated, renew the main switch.
W1015222
(C) Safety Switch
PTO Switch Continuity
1. Disconnect the PTO switch connector (1).
2. Measure the resistance between connector terminal as shown in
table below.
3. If the switch is defective, replace it.
W1044513
Resistance
Terminal B –
Terminal ACC
0 Ω
Terminal B –
Terminal IG1
0 Ω
Terminal B –
Terminal IG2
0 Ω
A : Main Switch Side Connector 6G
Resistance
Terminal B –
Terminal IG1
0 Ω
Terminal B –
Terminal ST
0 Ω
A : Main Switch Side Connector 6G
Resistance between
connector terminal
When switch spring is
pushed (Neutral)
0 Ω
When switch spring is
Released
Infinity
(1) PTO Switch Connector
(2) PTO Switch
(3) Connector of Switch Side
KiSC issued 02, 2007 A
