G-52
L3130 · L3430 · L3830 · L4630 · L5030, WSM
G GENERAL
Adaptor (For R134a)
Code No.: DENSO.CO. 95048-10190 (AC220V)
95048-10200 (AC240V)
Application: Use for evacuating the air conditioning system.
W1013888
Stopper Magnet Clutch (For A/C Compressor)
Application: Use for loosen and tighten the magnet clutch mounting nut.
NOTE

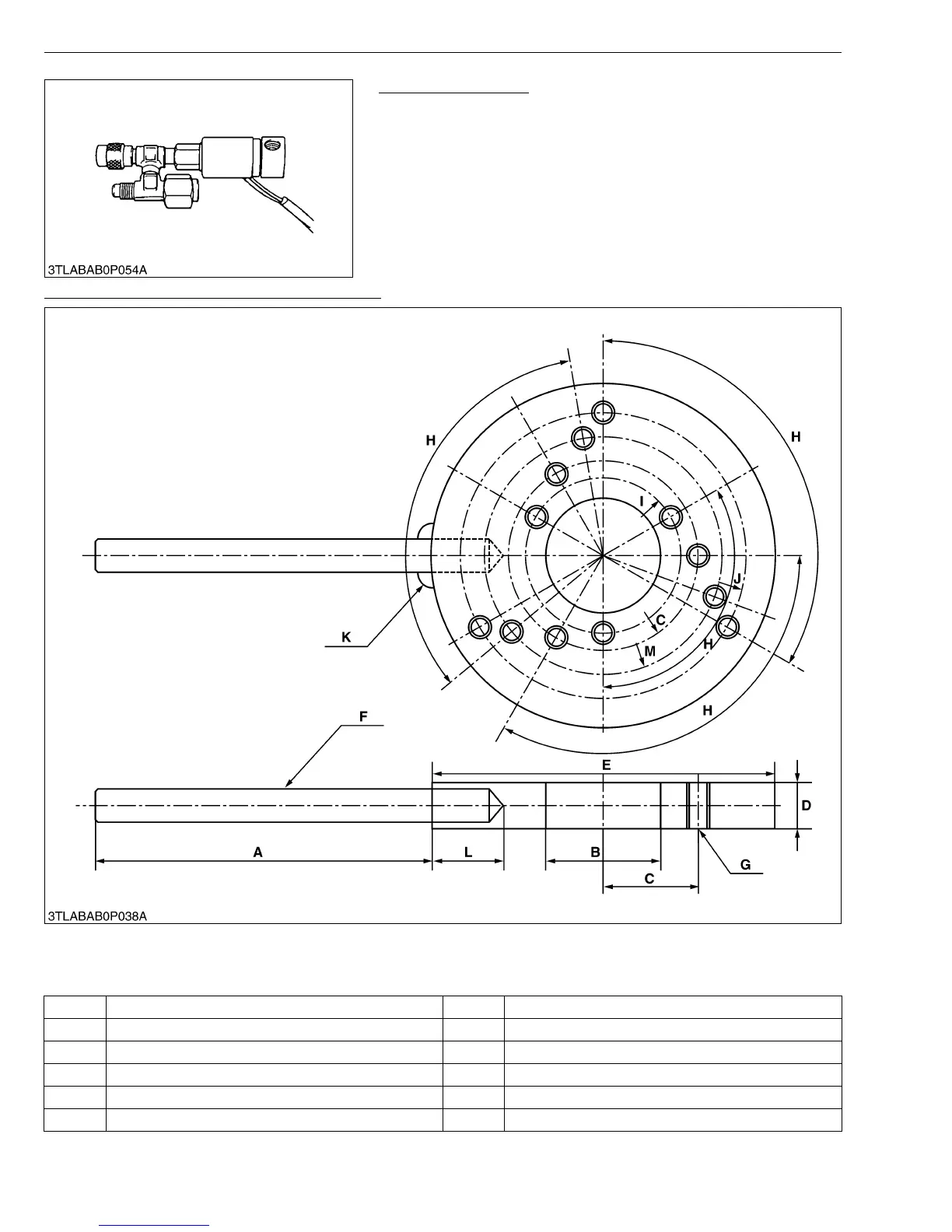

• This special tool is not provided, so make it referring to the figure.
A 125 mm (4.92 in.) H 4.52 rad (120 °)
B 40 mm dia. (1.57 in. dia.) I Radius 27 mm (Radius 1.06 in.)
C Radius 33 mm (Radius 1.30 in.) J Radius 50 mm (Radius 1.97 in.)
D 16 mm (0.63 in.) K Weld all around
E 120 mm dia. (4.72 in. dia.) L 20 mm (0.78 in.)
F 12 mm dia. (0.47 in. dia.) M Radius 41 mm (Radius 1.61 in.)
