wsm L503 - Page 77

G-57
L3130 · L3430 · L3830 · L4630 · L5030, WSM
G GENERAL
W10529090

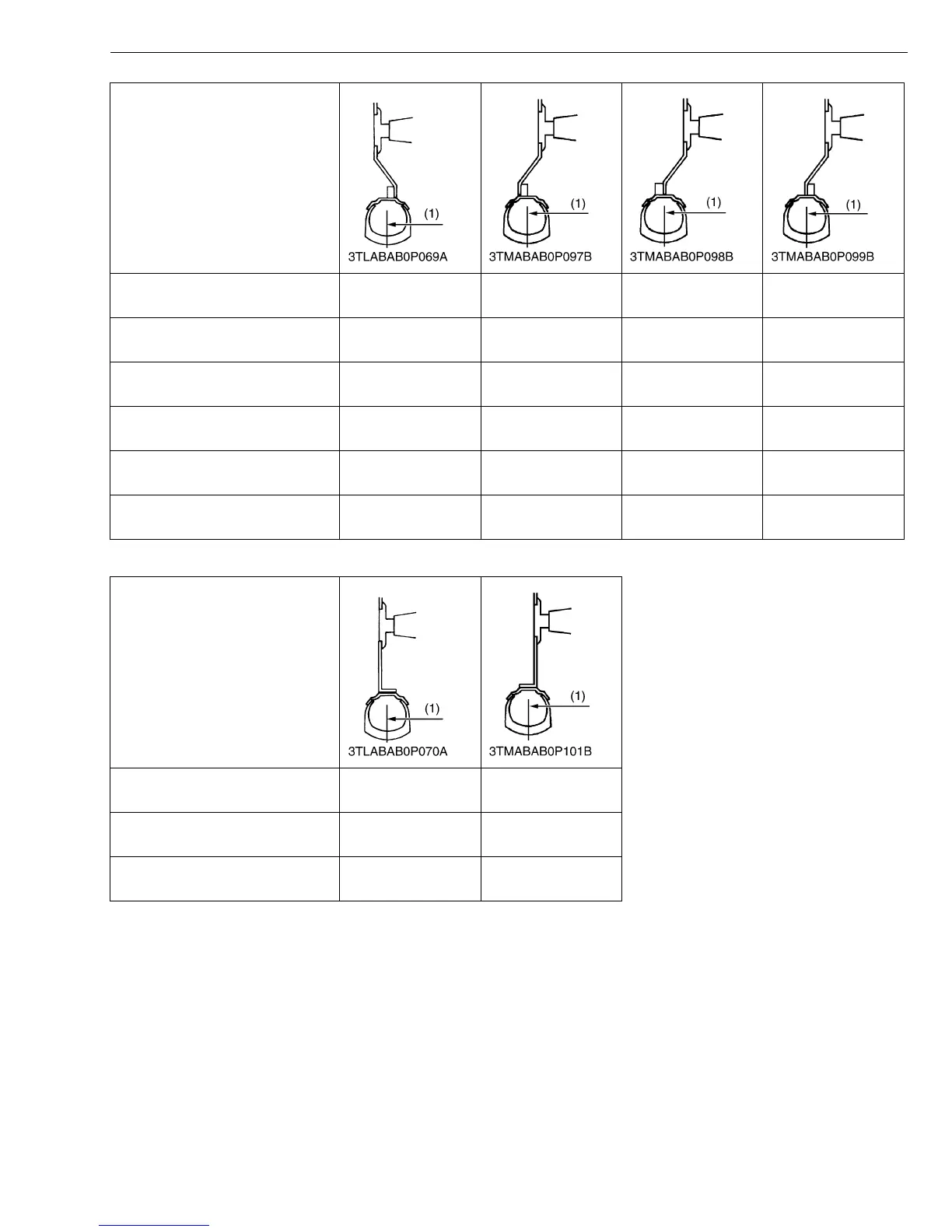

(1) Tread
W10531370
Models
L3130, L3430
11.2-24 Farm
1110 mm
(43.7 in.)
1205 mm
(47.4 in.)
1300 mm
(51.2 in.)
1385 mm
(54.5 in.)
L3130, L3430
11.2-24 Farm
1110 mm
(43.7 in.)
1205 mm
(47.4 in.)
1300 mm
(51.2 in.)
1385 mm
(54.5 in.)
L3830, L4630
12.4-24 Farm
1130 mm
(44.5 in.)
1220 mm
(48.0 in.)
1320 mm
(52.0 in.)
1400 mm
(55.1 in.)
L3830, L4630
13.6-24 Farm
1140 mm
(44.9 in.)
1210 mm
(47.6 in.)
1310 mm
(51.6 in.)
1410 mm
(55.5 in.)
L3830, L4630
13.6-26 Farm
1140 mm
(44.9 in.)
1210 mm
(47.6 in.)
1310 mm
(51.6 in.)
1335 mm
(52.6 in.)
L5030
13.6-28 Farm
1125 mm
(44.3 in.)
1225 mm
(48.2 in.)
1325 mm
(52.2 in.)
–
Models
L3130, L3430
355/80-D20 Turf
1125 mm
(44.3 in.)
1190 mm
(46.9 in.)
L3830, L4630
355/80-D20 Turf
1140 mm
(44.9 in.)
1210 mm
(47.6 in.)
L3830, L4630, L5030
475/65-D20 Turf
–
1285 mm
(50.6 in.)
