Page | 45

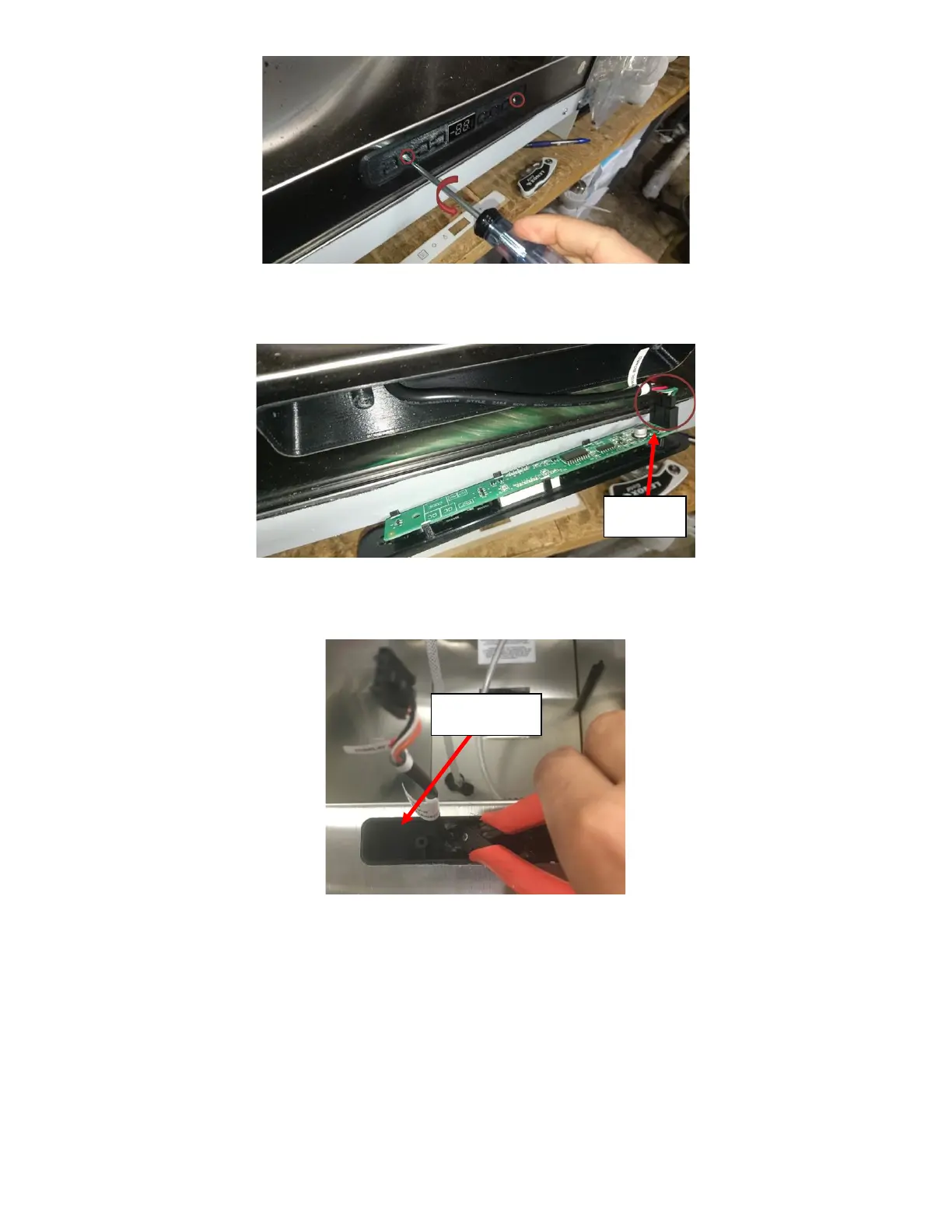

iii. Disconnect the existing UI Harness from the UI Board. Place the UI Board in secure place for reuse if it is
in good shape, replace UI Board if damaged. See Figure 100.
c. Cut off the damaged UI Harness as close to the back wall of the UI Board Housing as possible and discard it.
See Figure 101.
d. Drill the UI Harness Access Hole:
i. Mark 7.5inches from one edge of the Fridge on the bottom surface of the Overhang (below the plunger
the switch). See Figure 102a.
ii. Mark 1-inch from the front face of the Overhang and mark the drill location. See Figure 102b.
