Xerox AltaLink B8145 Series User Manual

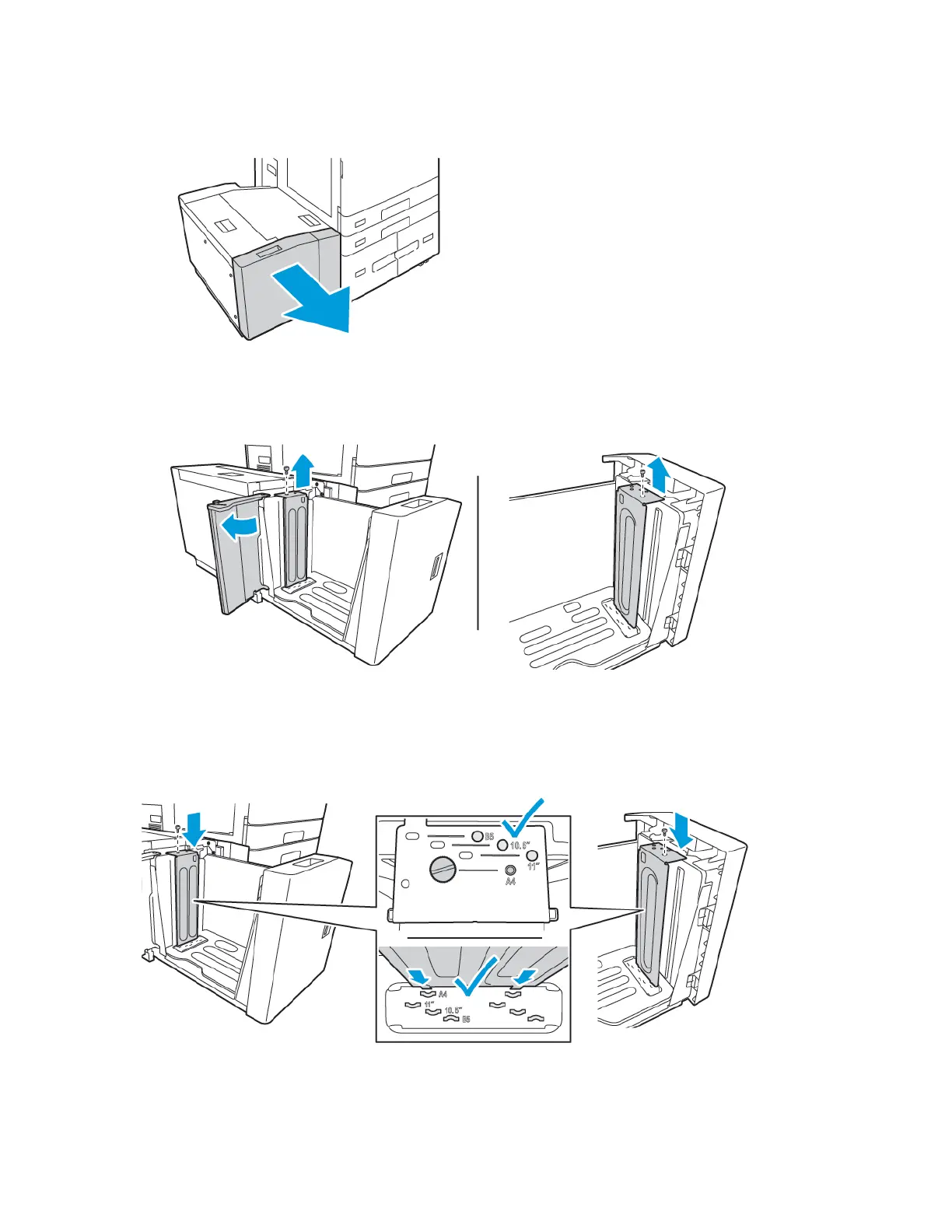

1. At the high capacity feeder, squeeze the handle, and pull out Tray 6 until it stops.
2. Open the side gate. Remove the screw that holds the spacer plate at the back of the tray, then lift the spacer
plate out of the tray. Repeat the procedure for the spacer plate at the front of the tray.
3. For the rear spacer plate, place the tabs at the bottom of the plate into the slots that correspond with the
correct paper size. Slide down the spacer plate, then engage the peg on the top of the tray with the matching
hole in the spacer plate. To secure the spacer plate, install the screw. Repeat the procedure for the spacer plate
at the front of the tray.
Xerox
®
AltaLink
®
B8145/B8155/B8170 Series Multifunction Printer User Guide 205
Paper and Media

Xerox AltaLink B8145 Series Specifications

General

Print Speed	Up to 45 ppm
Print Resolution	Up to 1200 x 2400 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Duplex Printing	Automatic
Touchscreen	10.1-inch color touchscreen
Functions	Print, Copy, Scan, Fax, Email
Memory	4 GB
Copy Speed	Up to 45 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	Ethernet, USB
Scanning	Color scanning
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria, Xerox Mobile Link App
Hard Drive	320 GB (optional)
