Parts of the Printer

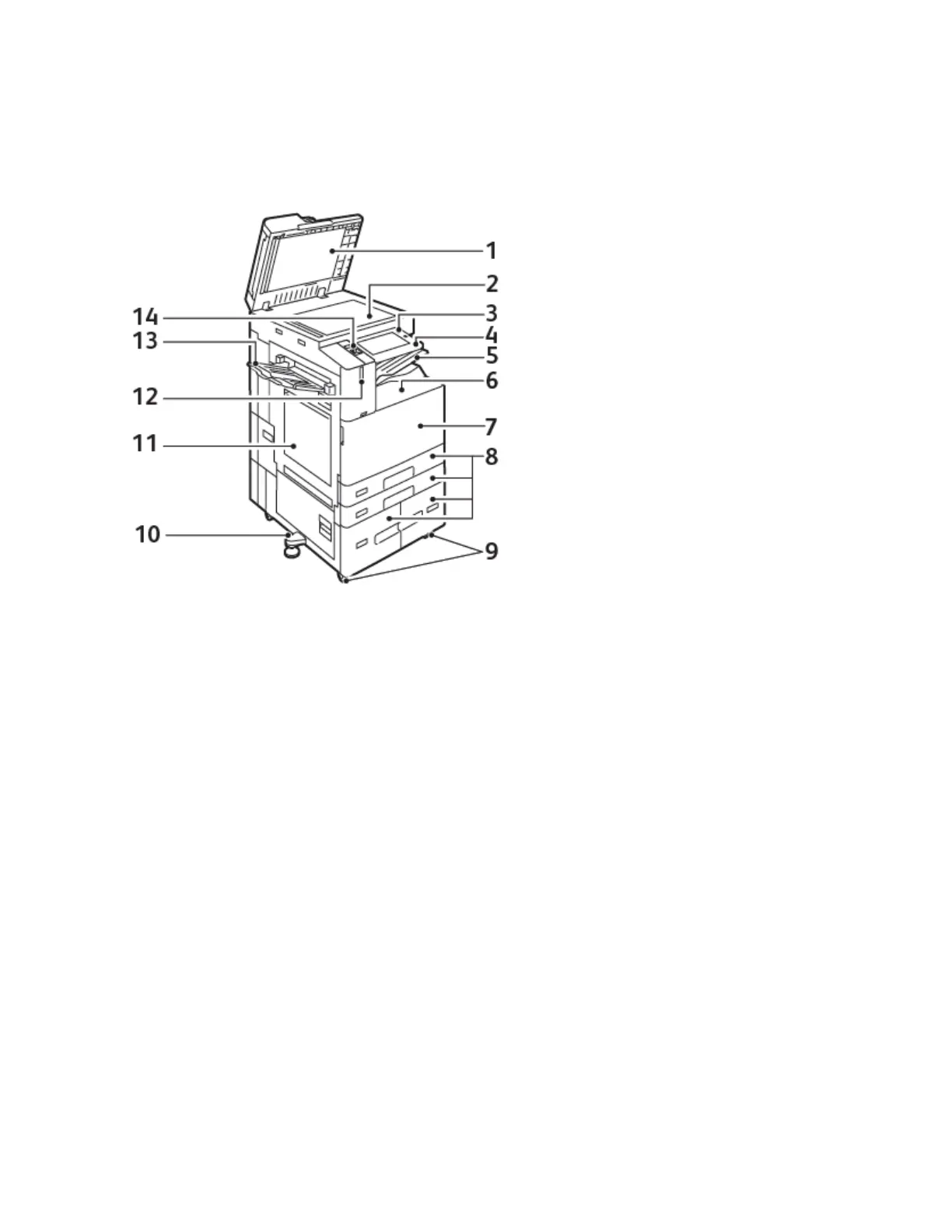

FRONT VIEW
1. Document Cover
2. Document Glass
3. Power/Wake Button
4. Near Field Communication (NFC) Area
5. Center Output Tray
6. Center Bottom Tray
7. Main Power Switch behind front door
8. Trays 1–4
9. Locking Casters
10. Leveler Foot
11. Tray 5 - Bypass Tray
12. Smart Proximity Sensor
13. Left Tray
14. Front USB Port, Type A
