8. Drum Cartridge
9. Transfer Belt Cleaner

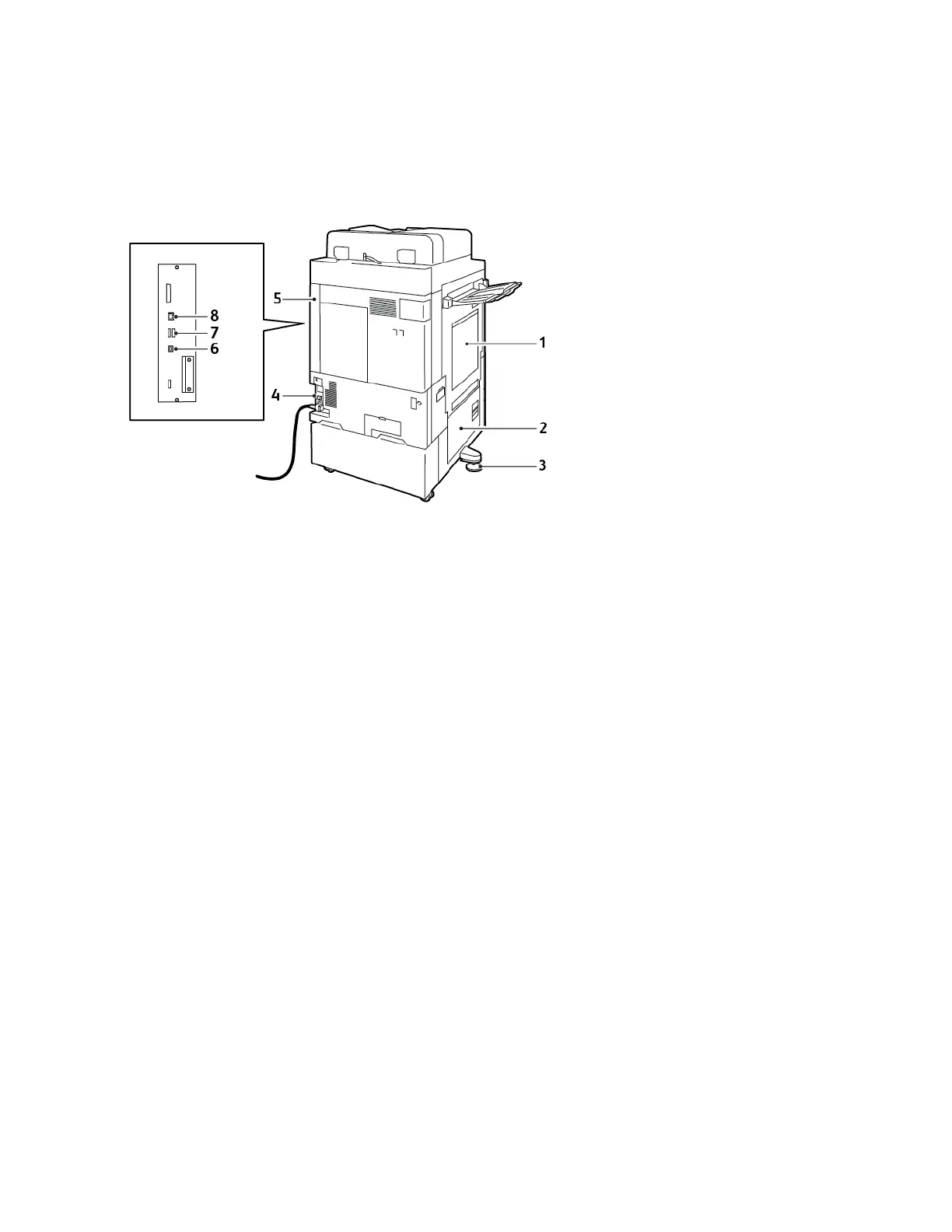

REAR VIEW
1. Bypass Tray
2. Door B
3. Leveler Foot
4. Circuit Breaker
5. Rear Right Cover
6. USB Port, Type B
7. USB Port, Type A
8. Ethernet Port
CONTROL PANEL
The control panel consists of a touch screen and buttons that you press to control the functions that are available
on the printer. The control panel has the following functions:
• Displays the current operating status of the printer.
• Provides access to print, copy, and scan features.
• Provides access to reference materials.
• Provides access to the Tools and Setup menus.
• Prompts you to load paper, replace supplies, and clear paper jams.
• Displays errors and warnings.
• Provides the Power/Wake button that is used to power on or off the printer. This button supports the power-
saver modes, and the button indicator pulses to indicate the power status of the printer.
Xerox
®
AltaLink
®
B8145/B8155/B8170 Series Multifunction Printer User Guide 25
Getting Started

Xerox AltaLink B8145 Series Specifications

General

Brand	Xerox
Model	AltaLink B8145 Series
Category	All in One Printer
Language	English
