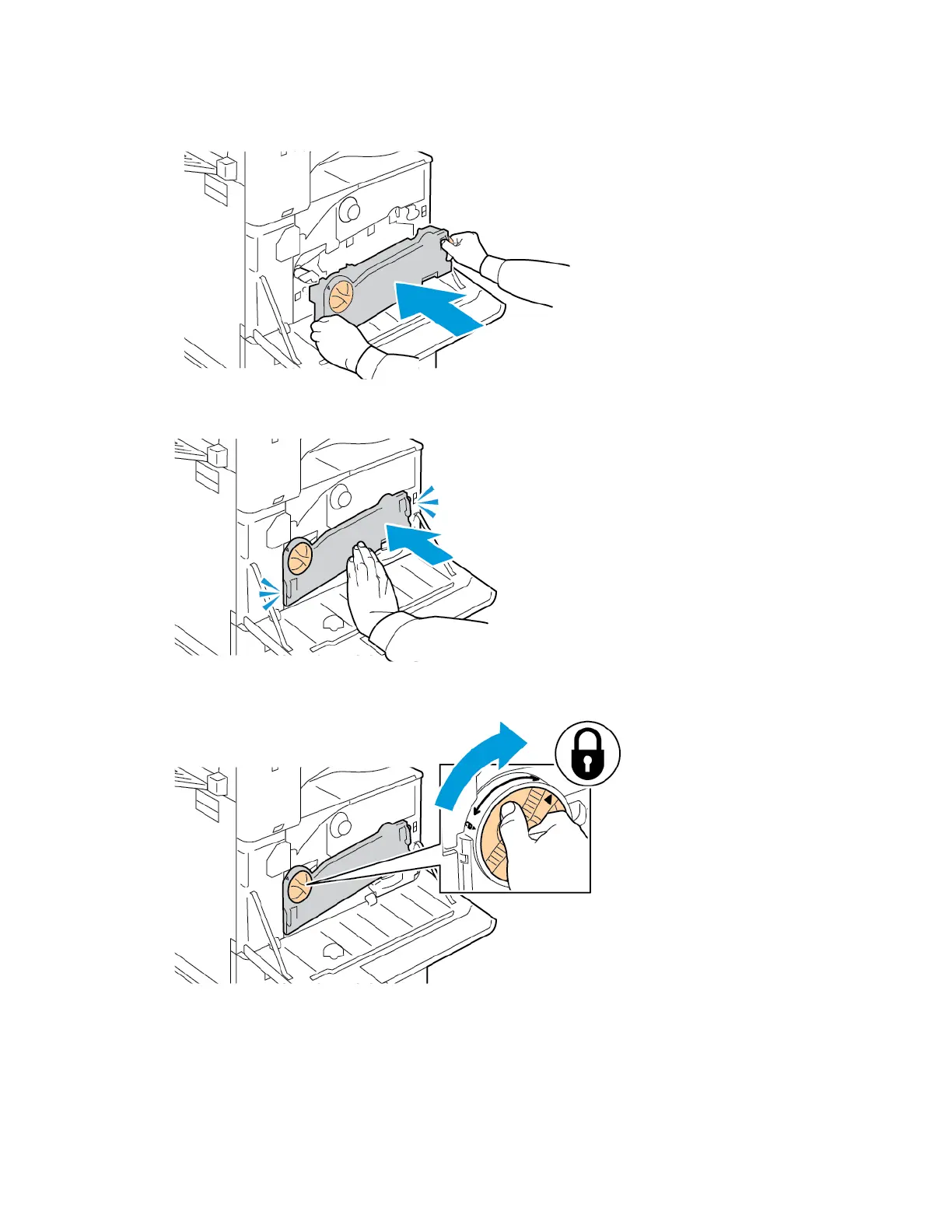

a. Position the waste toner transport unit as shown.
b. Press the waste toner transport unit toward the printer, until both ends click into place.
c. To lock the waste toner transport unit, rotate the locking lever 45 degrees clockwise.
Xerox
®
AltaLink
®
B8145/B8155/B8170 Series Multifunction Printer User Guide 241
Maintenance
