Xerox AltaLink B8145 Series - Clearance Requirements

Clearance Requirements

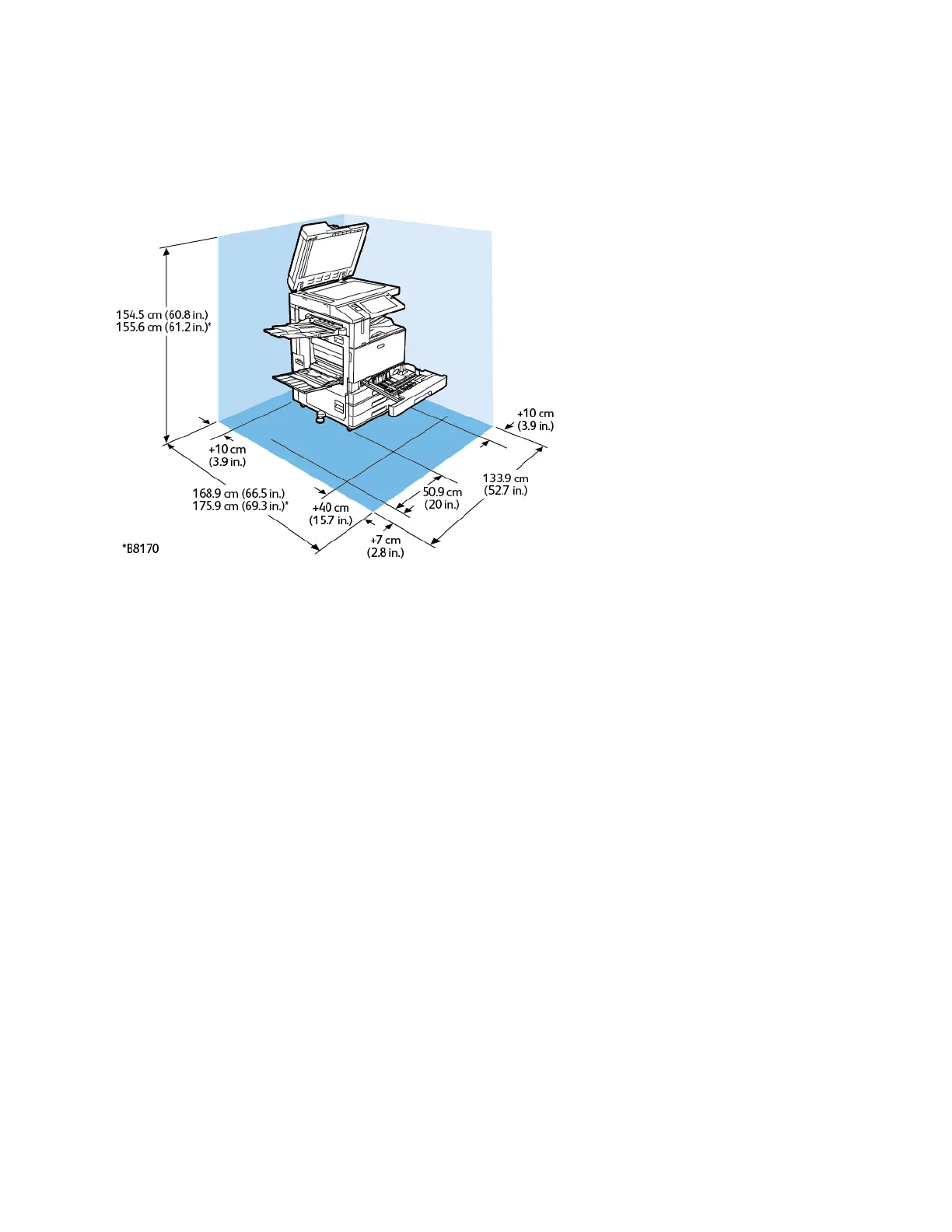

BASE CONFIGURATION
Installation Space
• Width: 133.9 cm (52.7 in.)
• Depth:
– B8145 / B8155: 168.9 cm (66.5 in.)
– *B8170: 175.9 cm (69.3 in.)
• Height:
– B8145 / B8155: 154.5 cm (60.8 in.)
– *B8170: 155.6 cm (61.2 in.)
Clearance
• Front: 40 cm (15.7 in.)
• Rear: 10 cm (3.9 in.)
• Left: 57.9 cm (22.8 in.)
• Right: 10 cm (3.9 in.)
Xerox
®
AltaLink
®
B8145/B8155/B8170 Series Multifunction Printer User Guide 363
Specifications
