224 A Appendix

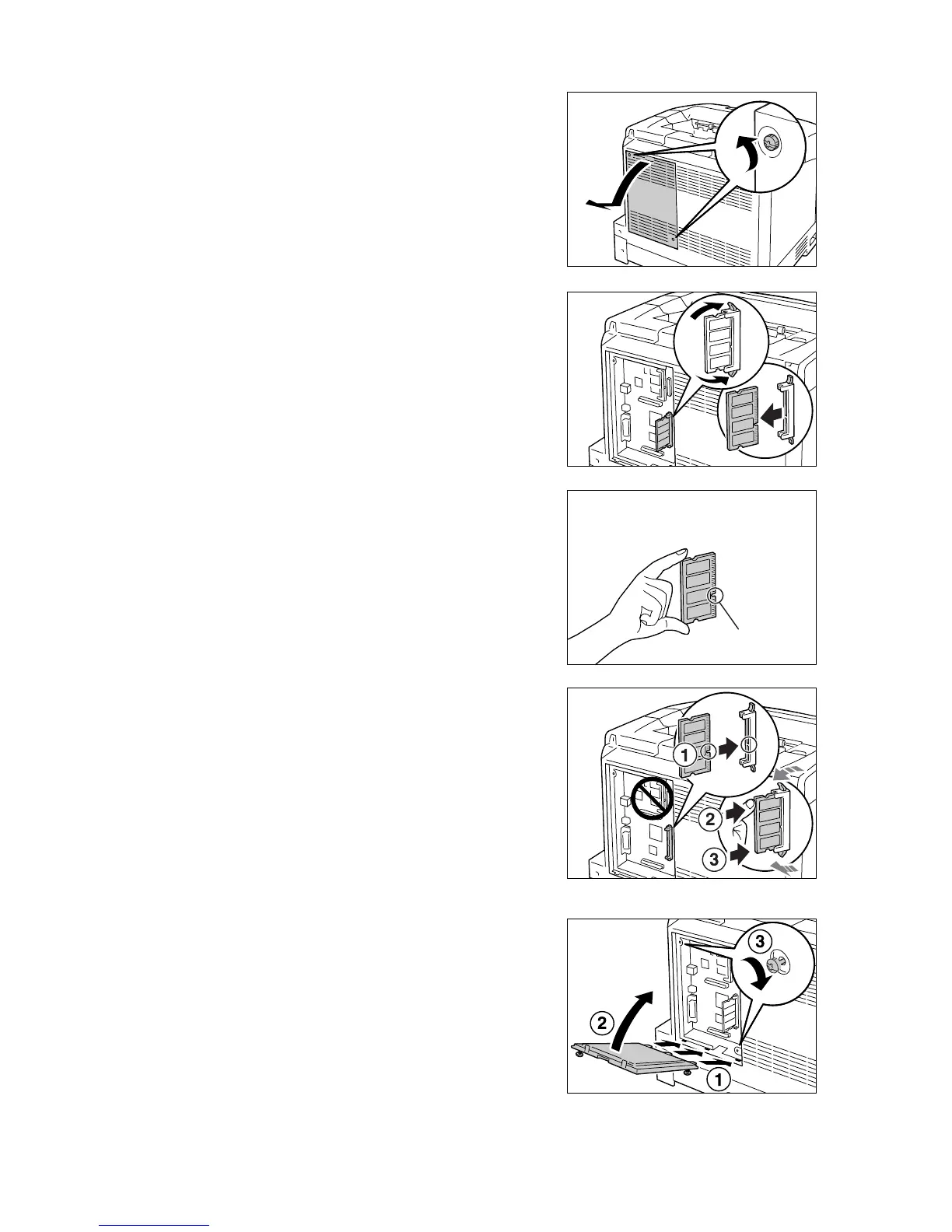

2. Loosen the two screws that secure the rear
cover to the printer.
Then, pull the rear cover forward and
remove it from the printer.
3. If another memory card is already installed,
push the retaining clips on both ends in the
outward direction and pull the memory card
straight out.
4. Hold the new memory card so that the
notch on the card comes below the center
of the card.
5. Align the notch on the new memory card
with the projection on the ROM slot, and
insert the memory card into the slot.
When the memory card is installed
correctly, the retaining clips on both ends
stand up.
Important
• The memory card should be installed perpendicular to
the controller board. The slot at the upper part of the
controller board is for an optional ROM, which is
installed parallel to the controller board. Make sure to
insert the memory card into the correct slot.
6. Re-attach the rear cover on the printer by
tightening the two screws loosened in Step
2.
7. Plug in the power cord and switch on the
power by pressing the power switch to the
<|> position.
The installation is now complete.
