Xinje DS2 series User Manual

2

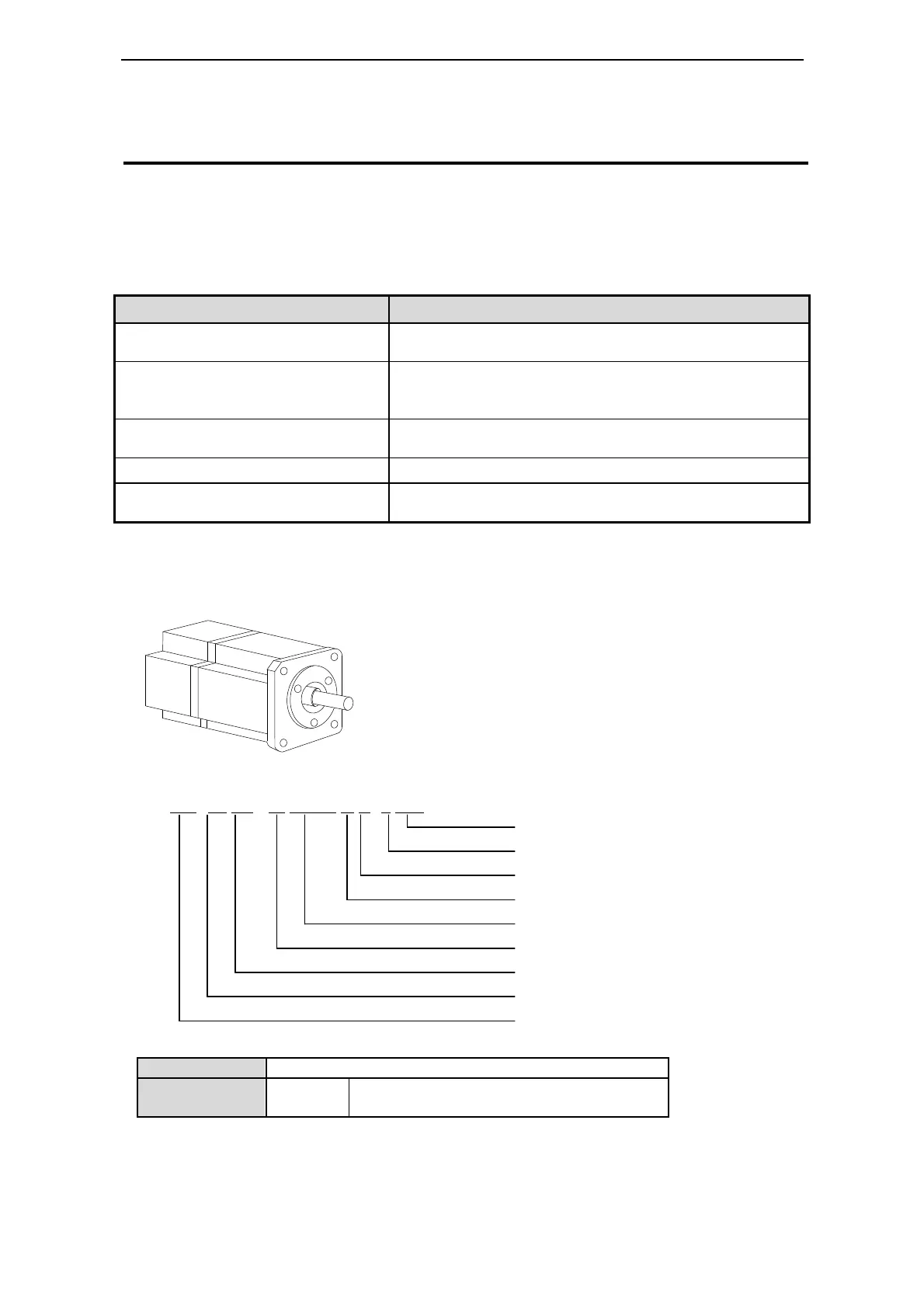

1 Checking Product and Part Names
This chapter describes the procedure for checking products upon delivery as well as names
for product parts.
1-1．Checking Products on Delivery
Use the following checklist when products are delivered.
Items Comments
Are the delivered products the ones
that were ordered?
Check the model numbers marked on the nameplates of the
servomotor and servo driver.
Does the
servomotor shaft rotate
smoothly?
The servomotor shaft is normal if it can be turned smoothly
by hand. Servomotors with brakes, however, cannot be
turned manually.
Is there any damage?
Check the overall appearance, and check for damage or
scratches that may have occurred during shipping.
Are there any loose screws? Check screws for looseness using a screwdriver.
Is the motor code the same with the
code in driver?
Check the motor code marked on the nameplates of the
servomotor and the parameter F0-00 on the servo driver.
If any of the above is faulty or incorrect, contact Xinje or an authorized distributor.
1-1-1. Servomotors
 External Appearance
 Nameplate
MS -80 ST - M 02430 A Z- 2 0P7
Capacity
Rated Voltage
Power-loss brake
Shaft Specifications
Performance Specifications
Feedback Component
Sinewave-drive Motors
Base Size
Motor Series Name
Base number
60
,
80
,
90
,
110
,
130
,180
Feedback
component no.
M Optical pulse encoder
