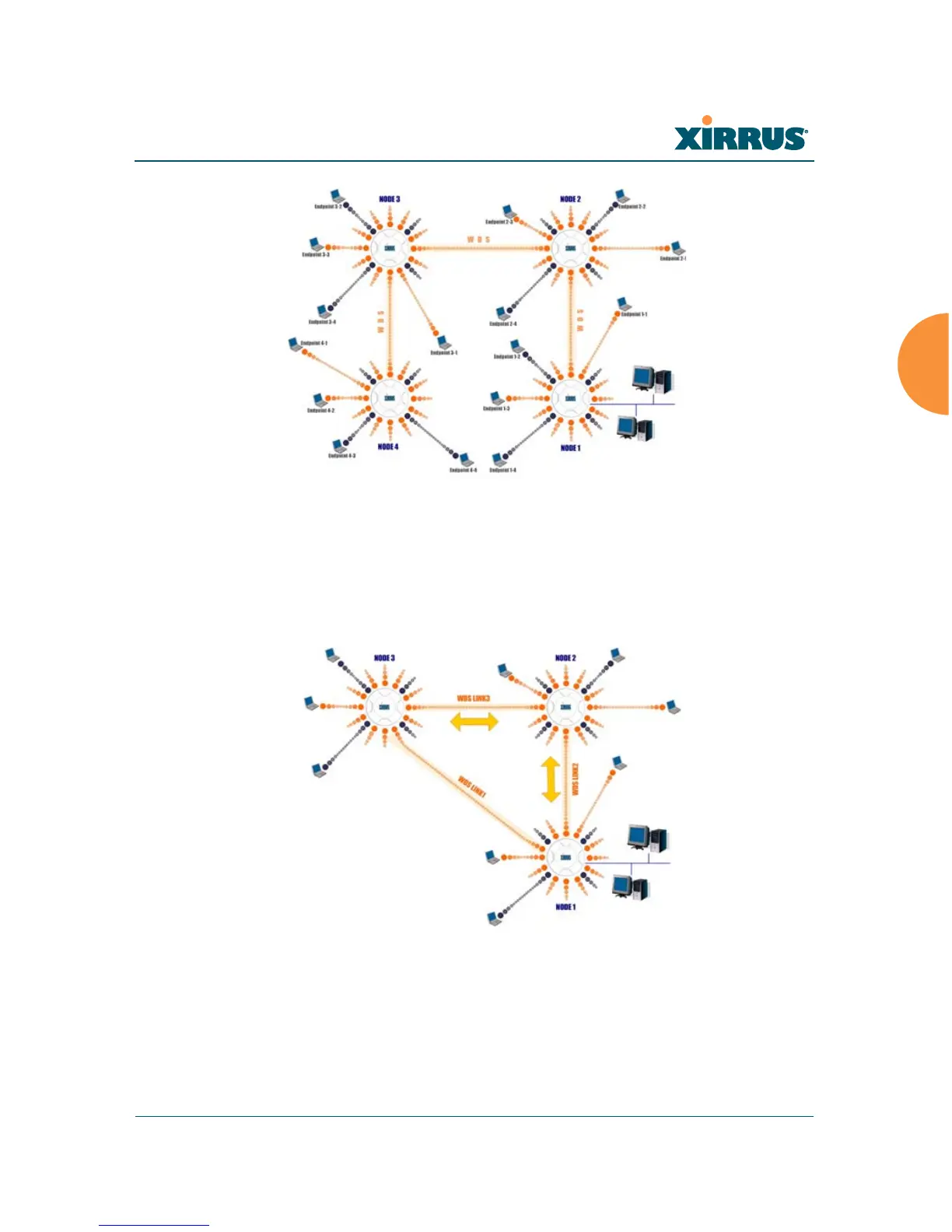

Figure 33. A Multiple Hop WDS Connection
 Multiple WDS links can provide link redundancy (failover capability - see
Figure 34). A network protocol (Spanning Tree Protocol — STP) prevents
Arrays from forming network loops.
Figure 34. WDS Failover Protection
