Wi-Fi Array
150 Viewing Status on the Wi-Fi Array
You may replace the range-finder background image above with your own
custom image of the floorplan of the area served by the Array — see “Working
with the Custom Image” on page 153
Hover the mouse over a station to show detailed information. (Figure 65) For a
station that is associated to this Array, the details include:
The IAP, Channel, and SSID to which the station is associated.
The MAC and IP address and Netbios name of the station.
The TX Rate and RX Rate of this connection.
The approximate Distance of this station from the Array. The distance is
estimated using the received signal strength and your environment
setting. The environment determines the typical signal attenuation due to
walls and other construction that affect signal reception.

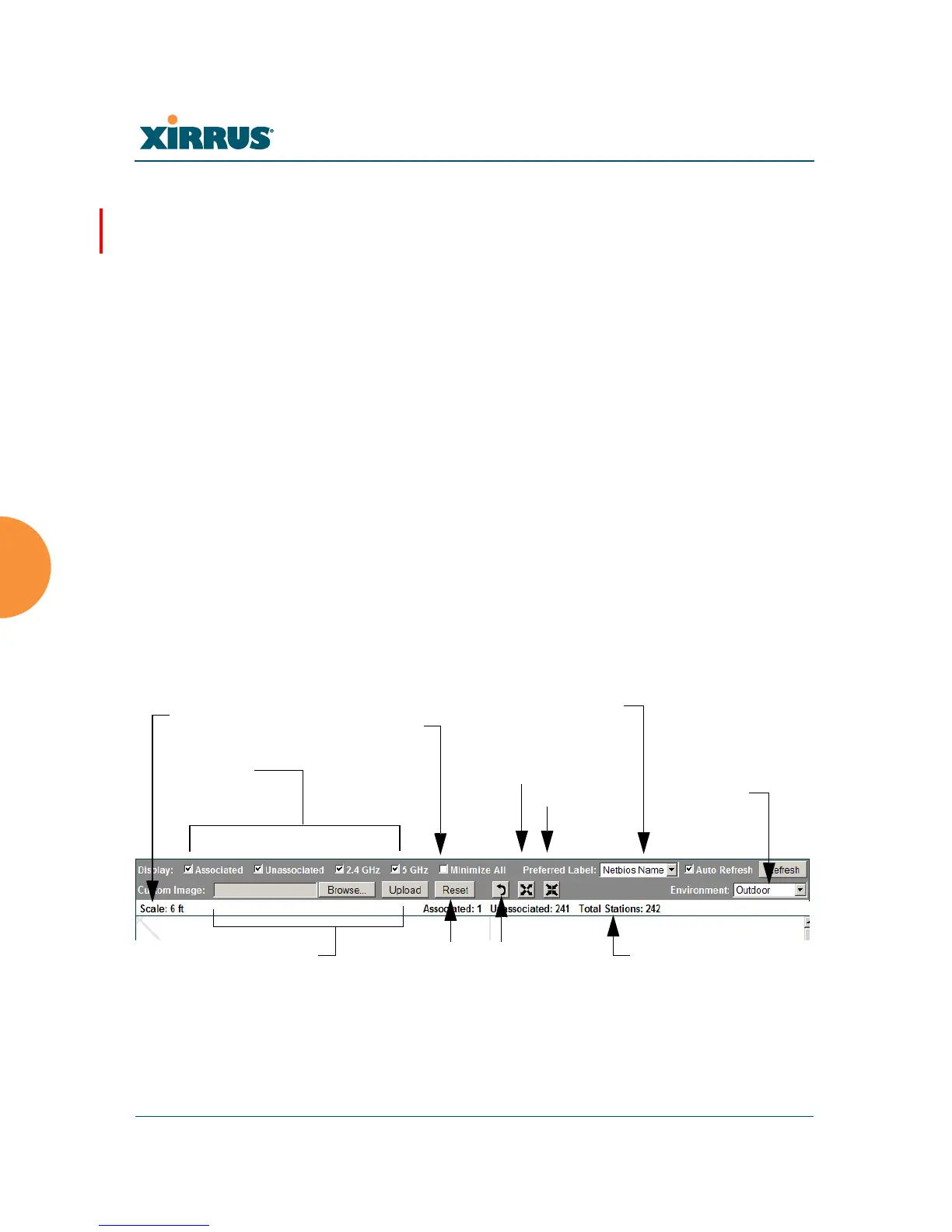

Controls and items displayed on the Location Map window
Figure 66. Controls for Location Map
Display Associated/Unassociated: Select whether to display stations that
are associated to the Array, stations that are not associated, or both.
The Location Map has its own scroll bars in addition to the browser’s scroll
bars. If you narrow the browser window, the map’s scroll bar may be hidden.
Use the browser’s bottom scroll bar if you need to move it into view.
