Xirrus Wi-Fi Array XR4420 User Manual

Wi-Fi Array
Viewing Status on the Wi-Fi Array 135
Routing Table
This status-only window lists the entries in the Array’s routing table. The table
provides the Array with instructions for sending each packet to its next hop on its
route across the network.

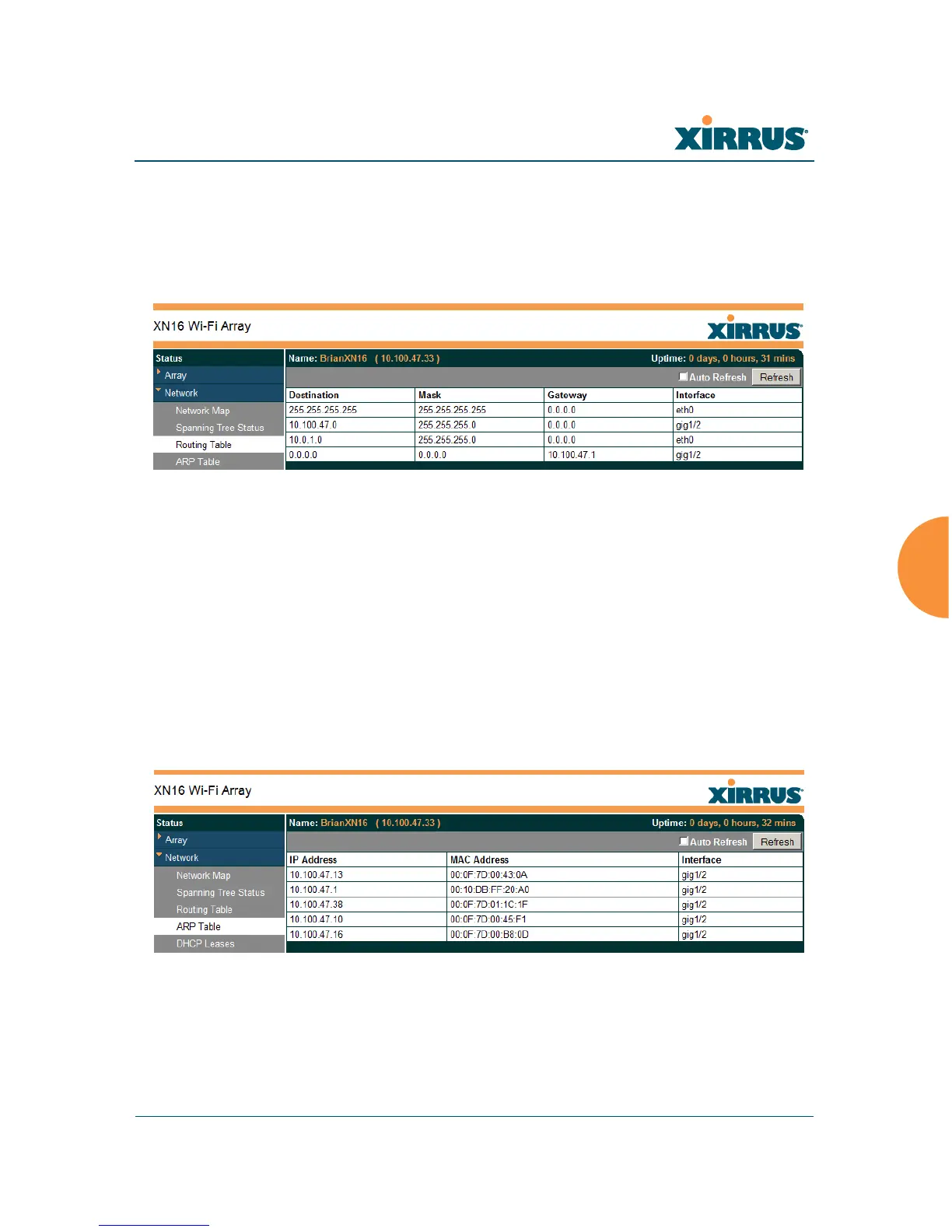

Figure 55. Routing Table
See Also
VLANs
Configuring VLANs on an Open SSID
ARP Table
This status-only window lists the entries in the Array’s ARP table. For a device
with a given IP address, this table lists the device’s MAC address. It also shows
the Array interface through which this device may be reached. The table typically
includes devices that are on the same local area network segment as the Array.
Figure 56. ARP Table
See Also
Routing Table
ARP Filtering
