124 Viewing Status on the Wi-Fi Array
Array Summary
This is a status only window that provides a snapshot of the global configuration
settings for all Wi-Fi Array network interfaces and IAPs. You must go to the
appropriate configuration window to make changes to any of the settings
displayed here — configuration changes cannot be made from this window.
Clicking on an interface or IAP will take you to the proper window for making
configuration changes.

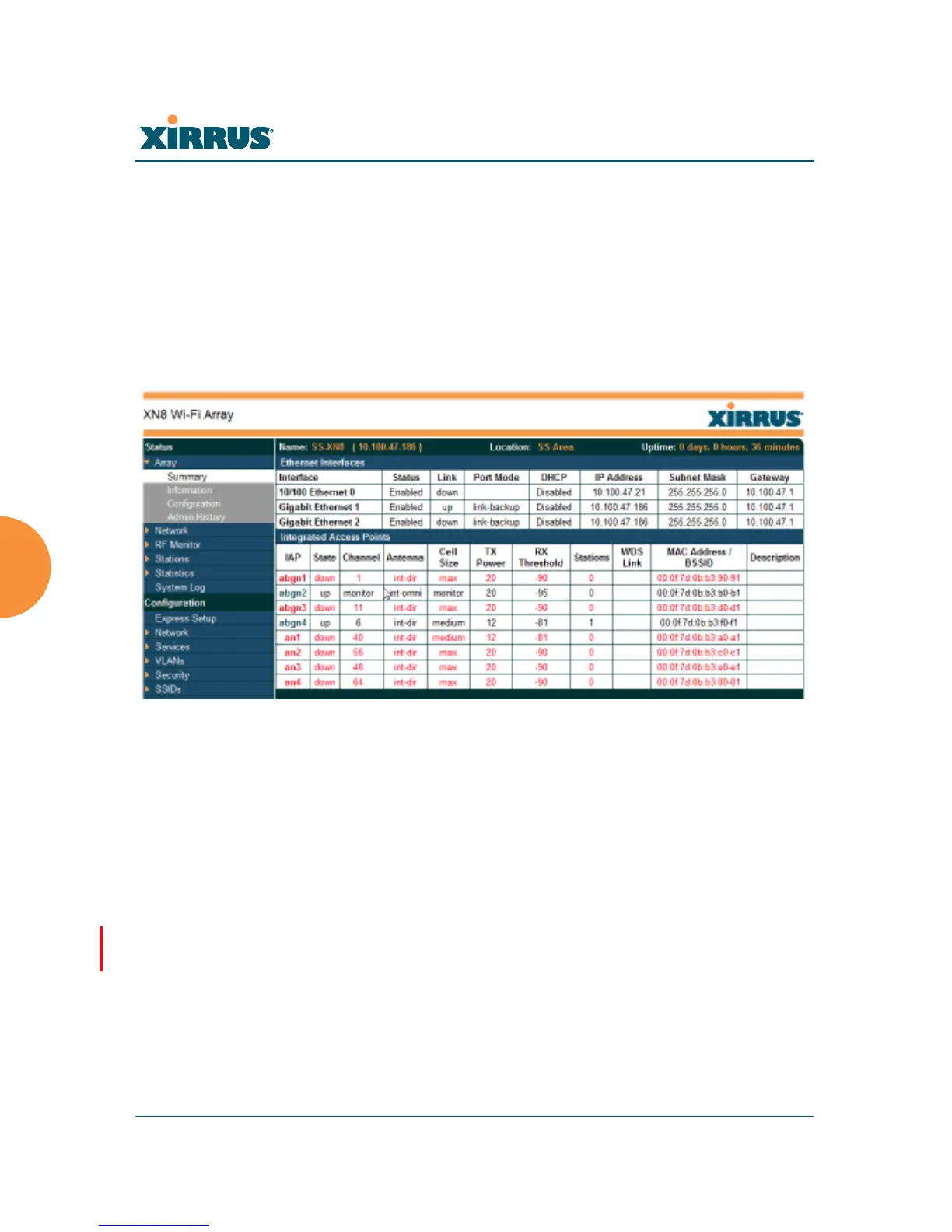

Figure 46. Array Summary
Content of the Array Summary Window
The Array Summary window is sub-divided into the Ethernet Interfaces section
and the Integrated Access Points (radio) section, providing you with the
following information:
 Ethernet Interfaces Section
This section provides information about network interface devices. To
make configuration changes to these devices, go to “Network Interfaces”
on page 180.
• Interface: Lists the network interfaces that are available on the Array
(10/100 Ethernet 0, Gigabit Ethernet 1 and Gigabit Ethernet 2).
• Status: Shows the current state of each interface, either enabled or
disabled.
