Wi-Fi Array

70 Installing the Wi-Fi Array

Deployment Examples

The following examples employ 802.11a cells, each offering minimum

throughputs of 54 Mbps, 36 Mbps, and 18 Mbps per sector respectively, and

assume a floor plan covering a total area of about 60,000 square feet (5574 sq m).

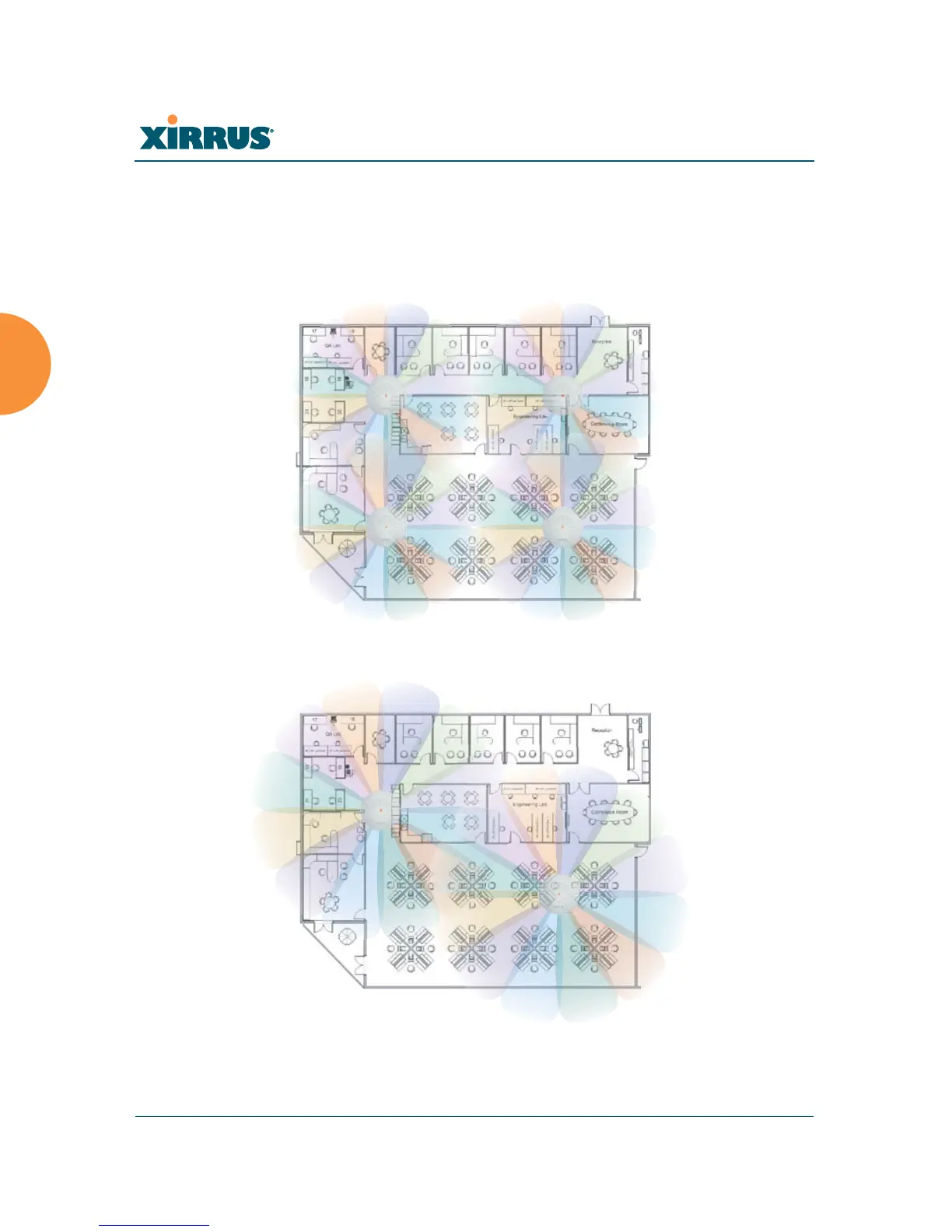

Figure 19. Deployment Scenario (54 Mbps) — Per Sector

Figure 20. Deployment Scenario (36 Mbps) — Per Sector
