Doc. 20780_03 57
A
DPRO Passive-Infrared (PIR) PRO Series by Xtralis Planning and Commissioning Manual

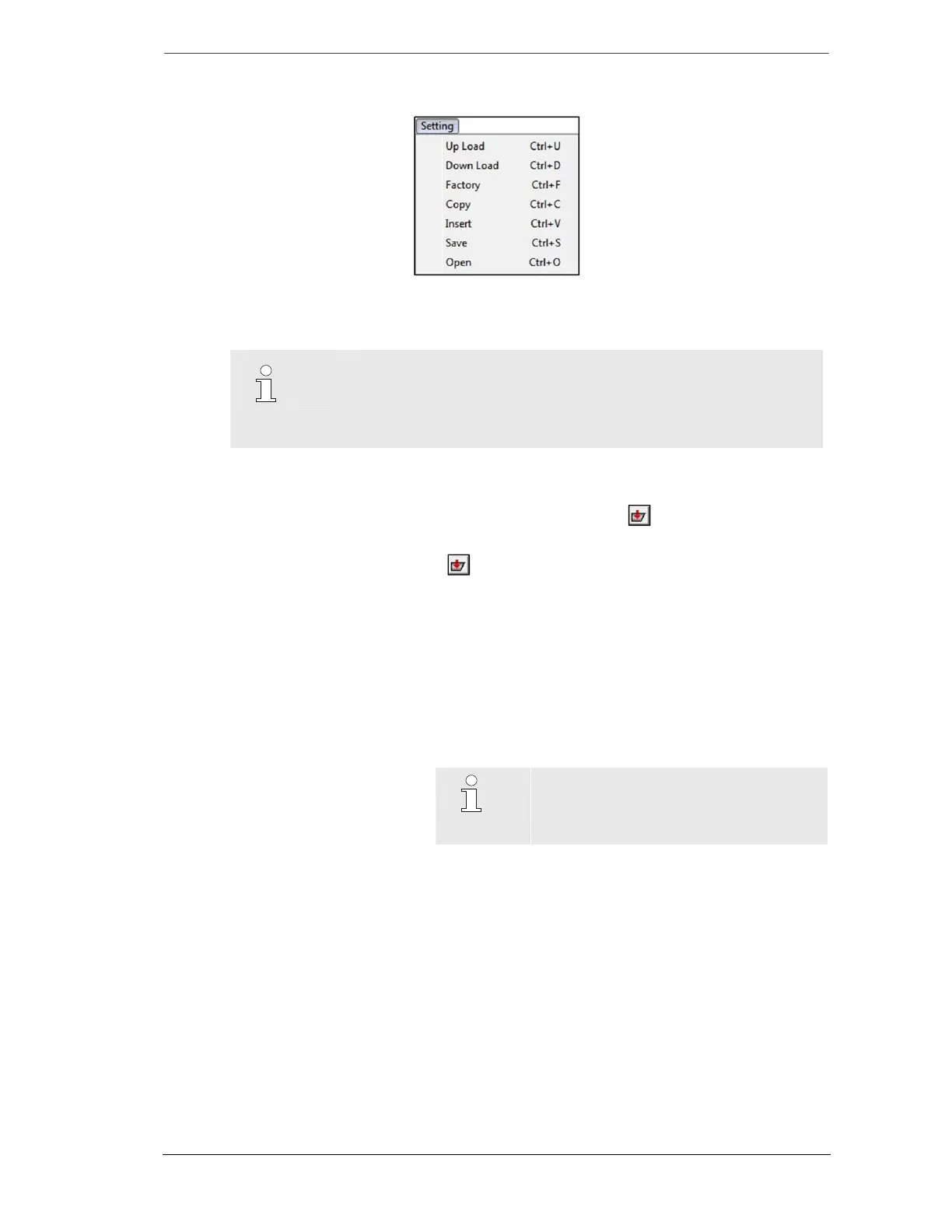

Also, the above actions can be accessed by clicking “Setting”, the following menu appears:
The following sections discuss all the actions you can perform, the available tools and how to
use them.
NOTE!
Setting options depend on detector model.
Displayed positions and displayed terms of option may vary depending
on detector model.
To select a detector to load its settings, you can:
Select the detector from the drop-down menu then click ( ).
Press <F3> and search for it by following the same steps mentioned in section (10.3.1
Select Detector), then click ( ).
10.3.4.2.1 Setting Options
The Setting window displays the setting options for the selected detector where each field
represents a certain value as follows:
Choice Lists all detectors of the same model.
Address Displays selected detector’s identification number.
Configuration Displays current operation mode: Hardware or Software.
NOTE!
Operation modes can only set by DIP-
switches 1 and 2 on connector board of
detector.
SW range Detection range can be individually set in seven steps. Pre-
set values vary depending on model.
Reduction of nominal range affects only coverage of long-
range channel (applies to long-range models only).
SW sensibility/
SW sensitivity
[%]
Modifies the overall sensitivity within a bandwidth 50% -
150%.
Reduction of overall sensitivity changes alarm threshold but
leaves coverage of long-range channel unchanged.
Channel L/M/S
1
ON Long, medium and short range channels may be enabled
individually by selecting “ON” from drop-down menu.
OFF Long, medium and short range channels may be disabled
individually by selecting “OFF” from drop-down menu.
Channel
right/left
2
ON/
OFF
Enables/ Disables right/ left channel.
