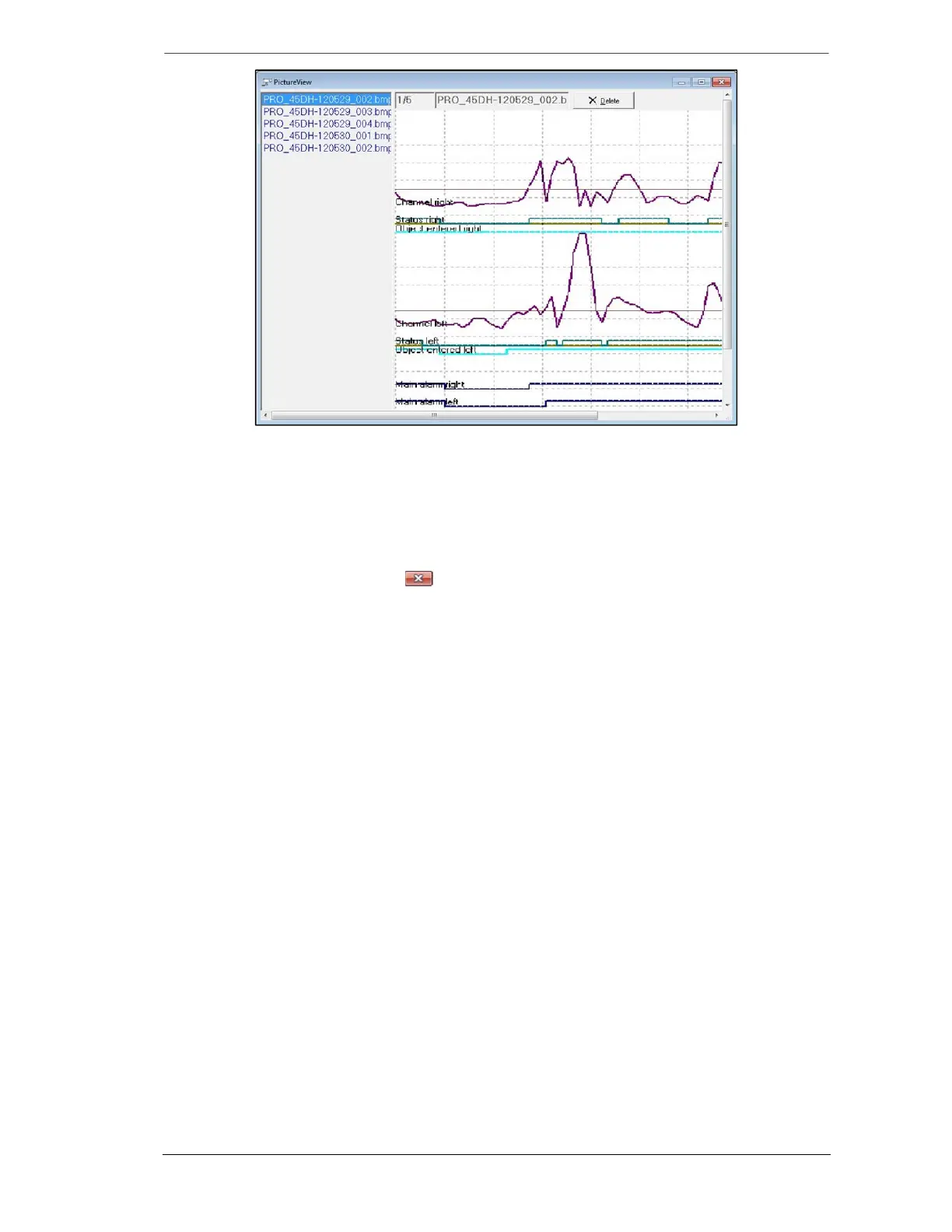

The window is divided into two parts: the left one lists all the pictures and the right a preview
of the selected picture.
To delete a picture, follow these steps:
1. Select the picture, its name is displayed in the field,
2. Click (Delete). It is immediately deleted from this window and from the “BMP” folder as
well.
To close the window, click ( ).
10.3.6.4 Picture Auto
If this feature is checked, each time the detector reads a signal or detects a movement, a
picture is automatically taken and saved in the “BMP” folder.
10.3.6.5 Picture Memo
If this feature is checked, the “Picture take” tool is activated and you can take pictures of the
Scope.
10.3.6.6 Statistics
Through this feature you can view data the detector transmits to the controller. The Statistics
view logs the actual alarm status of all detectors that have been discovered during the initial
“Search for Detectors” process. In addition to general alarm information, the view details the
zone that issued the alarm. It also shows warnings and detector‘s status under the system
column. Every status change from every detector adds a line in this log view.
This information is stored in text files on a daily basis, one file per detector. Files are saved
in the “DAT” sub-folder accessed through the ADPRO PRO Windows® Software folder.
Click (Statistics), the following window appears:
