LEDdeactivates continuously.
l While the detector is disabled, any faults may be cleared by pressing this button once.
The button will not operate if:
l the detector is disabled through the GPI function; or
l the RESET / DISABLE button has been configured as "locked out". Refer to section 5.5.11 for further
information.
2.3.3 Touch Screen
The built in 3.5" touch screen provides a range of status information, accessible via a series of screens.
Main Screen
The Main Screen displays a set of important information concerning the detector and its overall status.
Information and indicators include:
l Model number
l Location
l Current smoke level
l Current overall fault state
l Individual faults
VEP-A10[42]
Basement
0.0215%/m

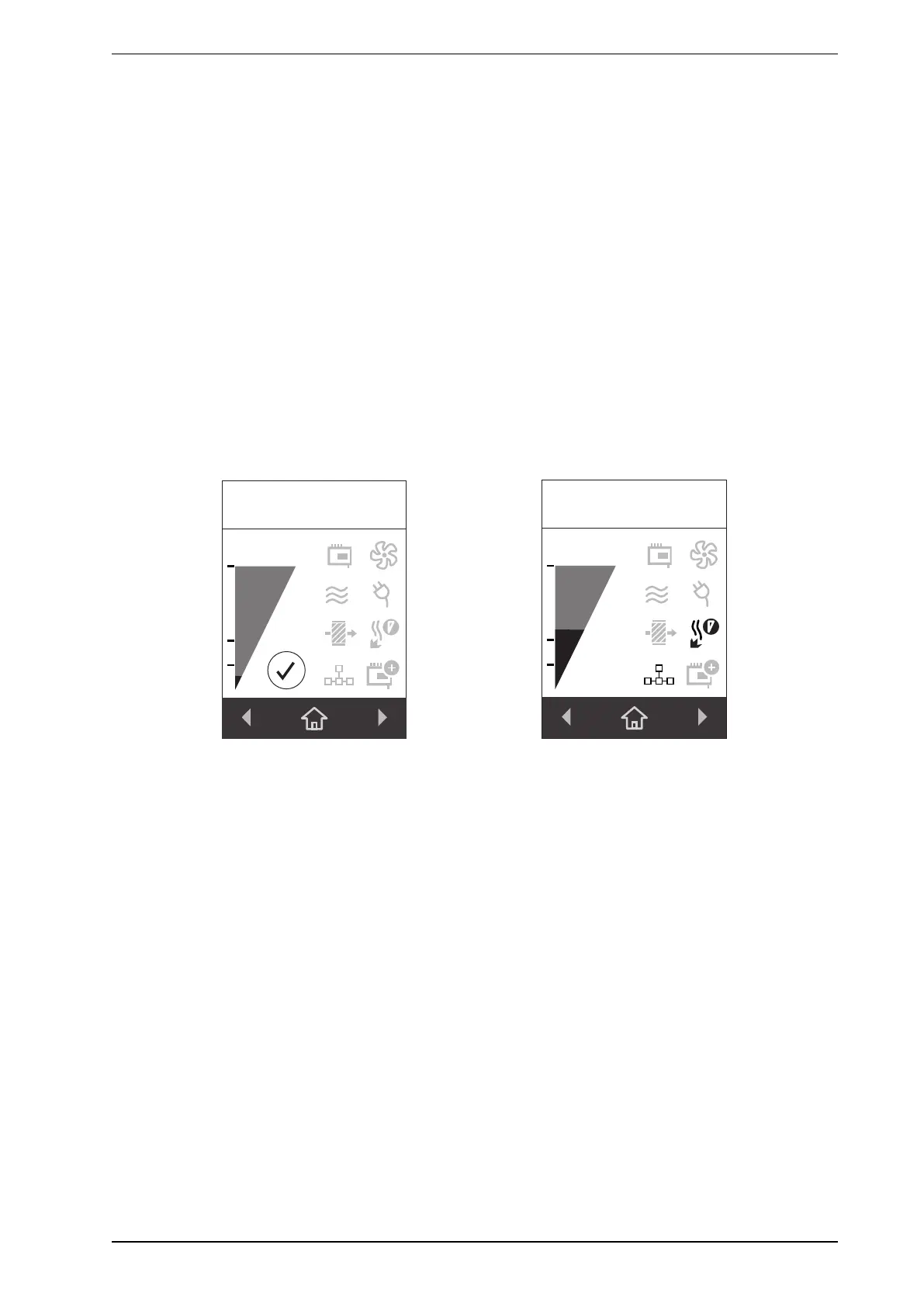

Figure2-3: Main Screen - Normal System
VEP-A10[42]
Basement
0.1100%/m
Figure2-4: Main Screen - System with Faults
Note: Refer to Section 8.2 on page 97 for further information on troubleshooting using the fault display
information on the main screen.
Airflow Screen
The Airflow screen displays the flow level for each of the sampling pipes that are in use. Sampling pipes that
have been deactivated are identified with a cross.
Note: Refer to Section 3.3 on page 17 for further information on Sampling Pipe configuration.
