6. Change from setup A in Figure4-11 to setup B by doing the following:
a. Leave the fascia upright.
b. Rotate the detector 180 degrees.
c. Rotate the door 180 degrees and place it next to the right side of the fascia.
7. Replace the door hinge pin. (Figure4-12, Figure4-13)
A
180
o
B

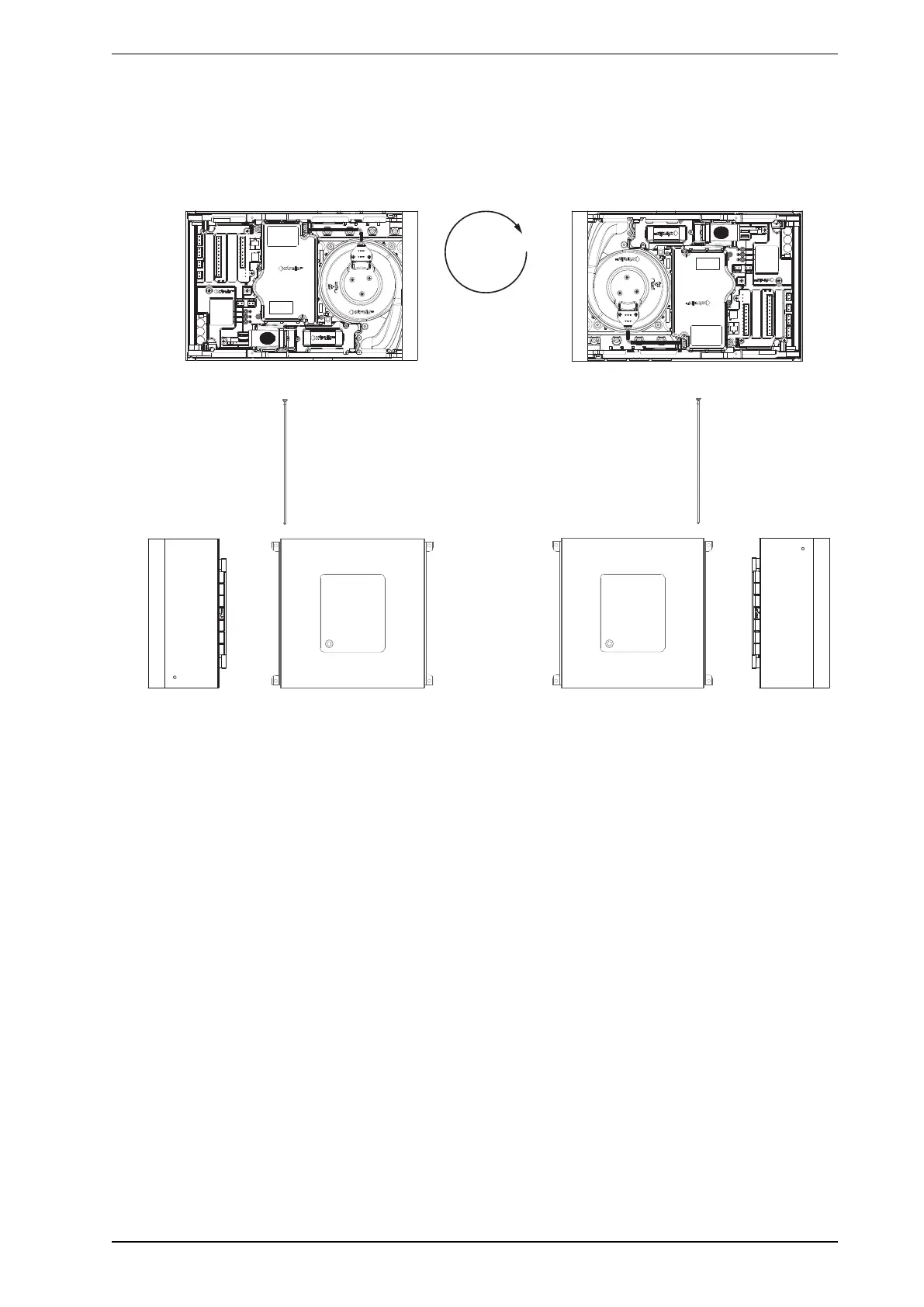

Figure4-11: Rotate detector and door and move door to right side of fascia
