VESDA-EVEP-A10-P Product Guide
www.xtralis.com 27

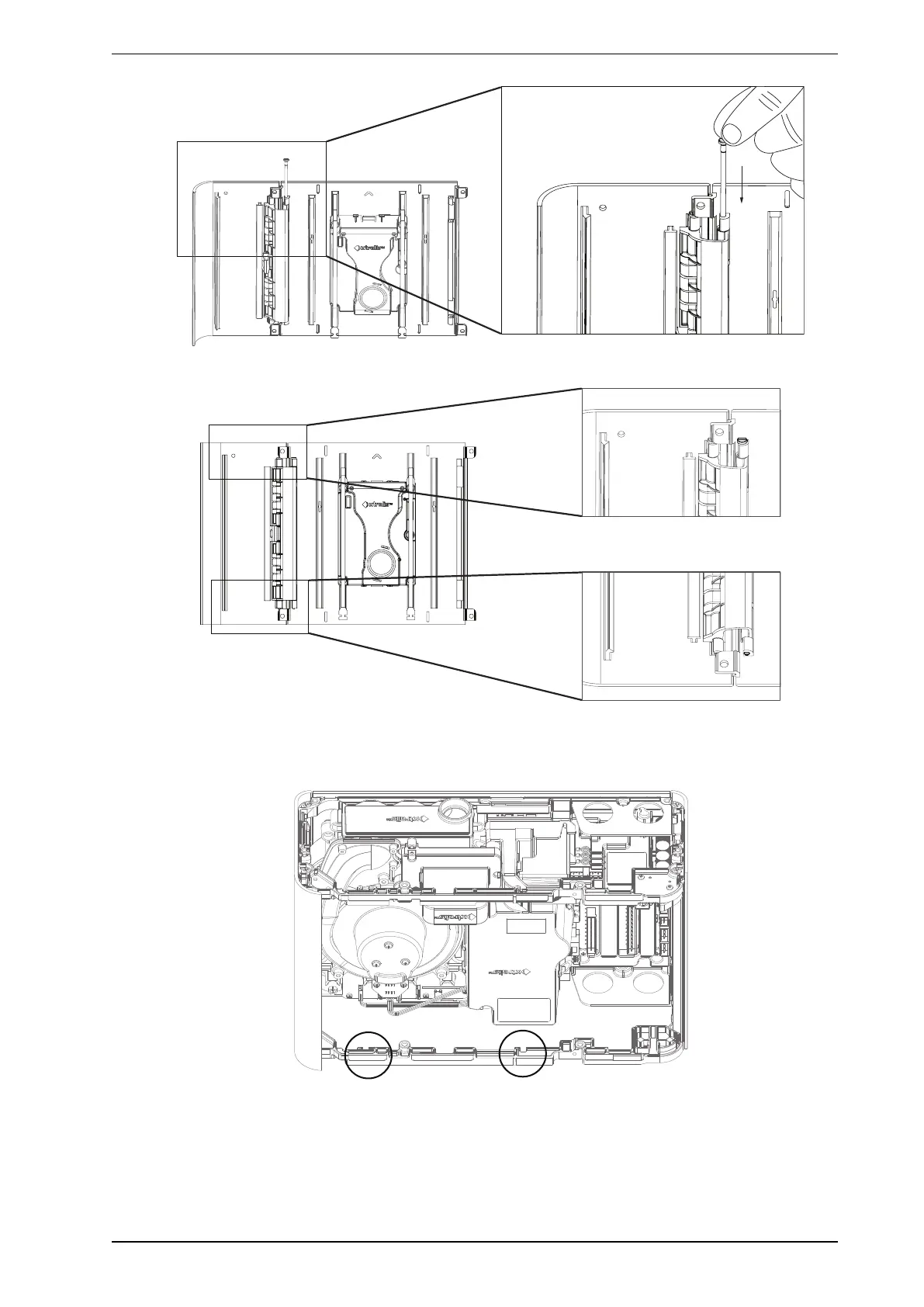

Figure4-13: Replacing the door hinge pin
Figure4-14: Correct positioning of door hinge pin when fully in place
8. Re-attach the tethers. Attach at the slots circled in Figure4-15. Position the tethers in the slots and pull
up as shown in Figure4-16.
Figure4-15: Re-attach tethers at circled positions

Xtralis VESDA-E VEP-A10-P Specifications

General

Brand	Xtralis
Model	VESDA-E VEP-A10-P
Category	Smoke Alarm
Language	English
