VESDA-EVEP-A10-P Product Guide
www.xtralis.com 91

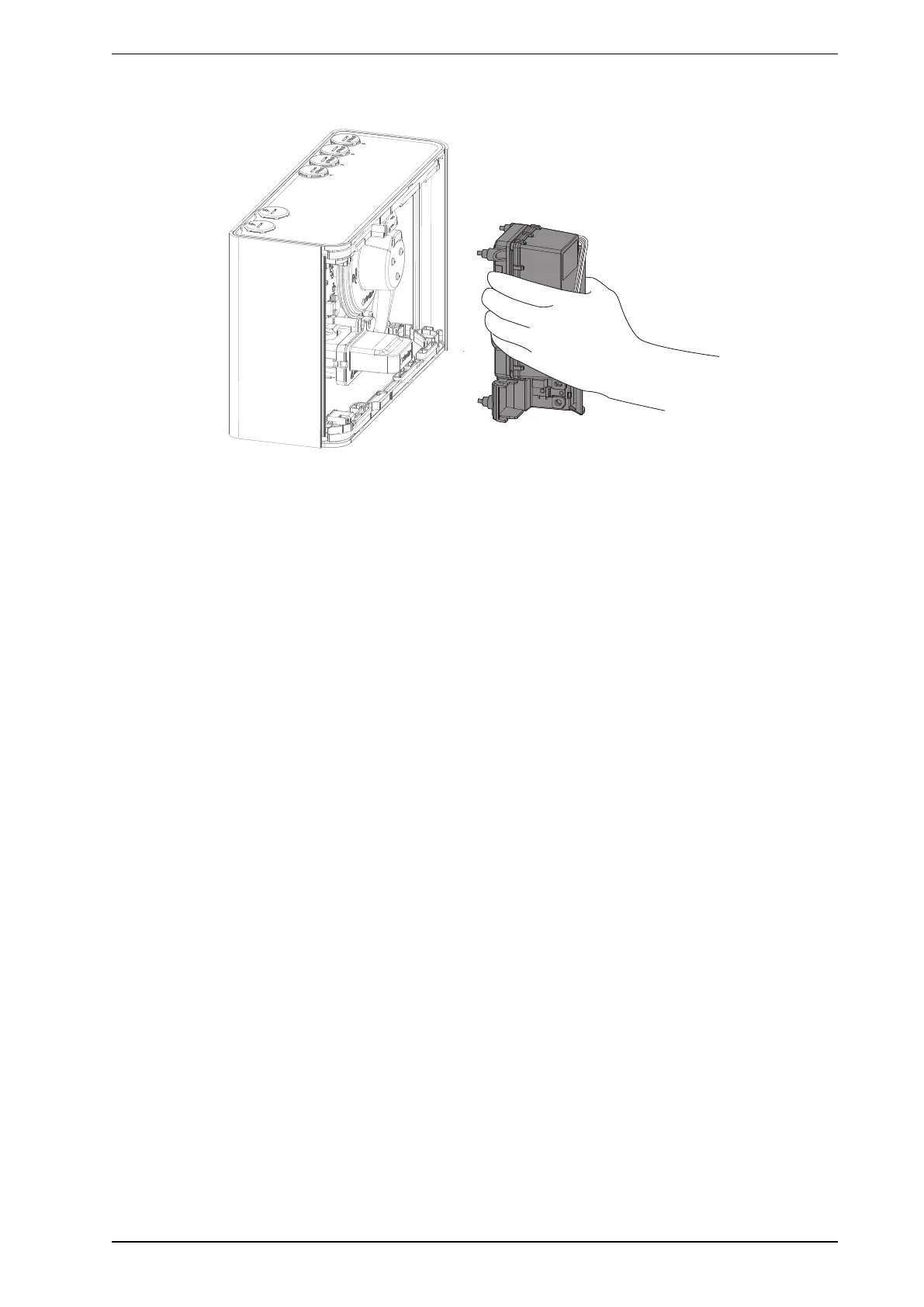

3. Re-install the chamber as shown in Figure7-18. Be careful to hold looms (A) and (B) in the position
shown so that the looms are not caught between the chamber and other parts of the detector.
Figure7-18: Install the Chamber
4. Secure the four screws which hold the chamber to the detector base (Figure7-13).
5. Reconnect the loom to J3 (Figure7-14).
6. Reinstall the Filter. Refer to Section 7.3 on page 81 for further information.
