VESDA-EVEP-A10-P Product Guide

72 www.xtralis.com

5.5.11 Button Lockout Options

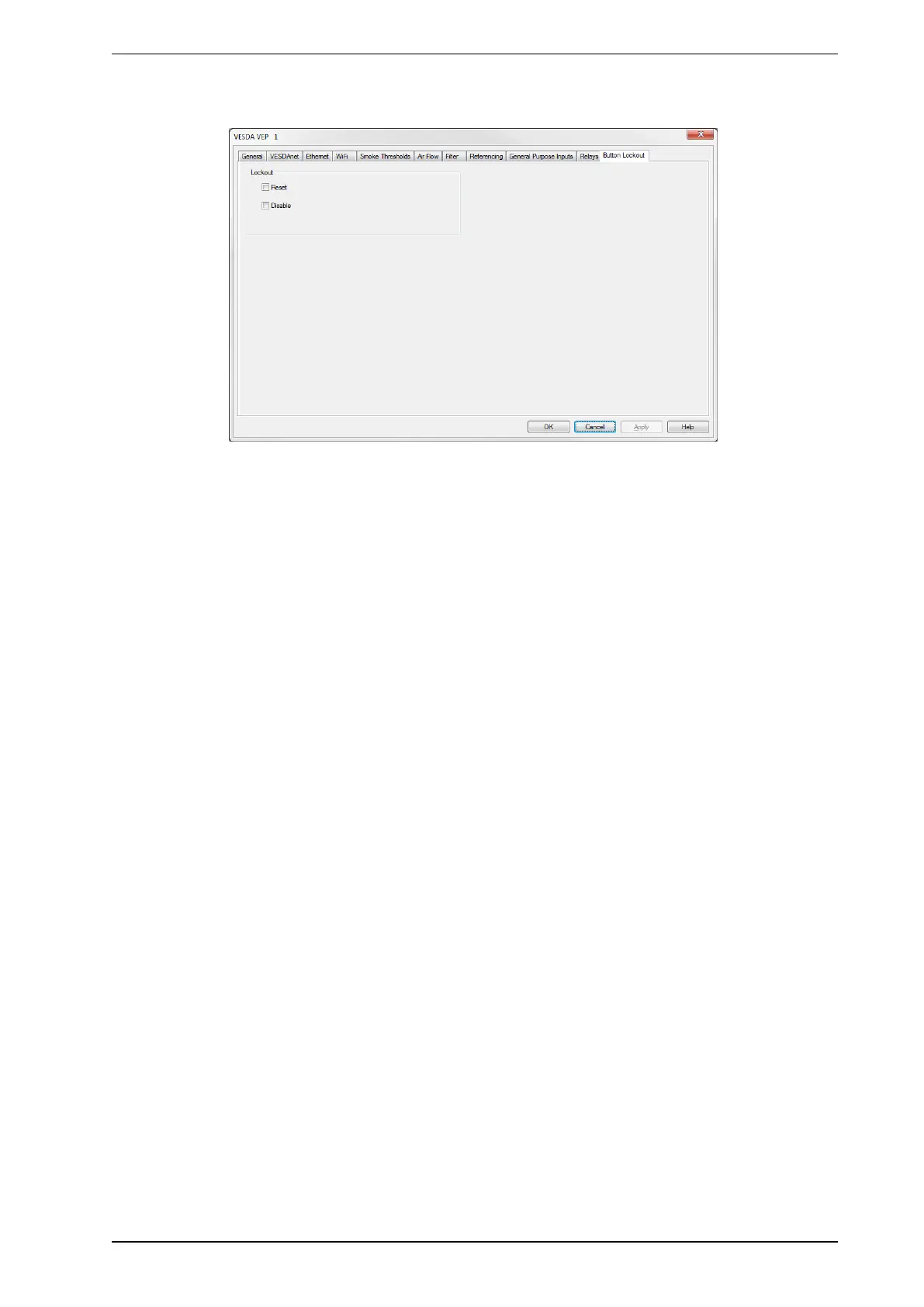

Figure5-22: Button Lockout Options

Lockout:

The Reset and Disable functions cannot be executed using the detector front panel button if the corresponding

checkbox is ticked."
