Xtralis VESDA-E VEP-A10-P - Rear Dimensions with Hole Locations for Direct Mounting

A
B
C D E
F
G
H
mm inch
A 224.0 8.82
B 112.0 4.41
C 40.9 1.61
D 268.39 10.57
E 40.71 1.6
F 20.25 0.8
G 183.5 7.22
H 20.25 0.8

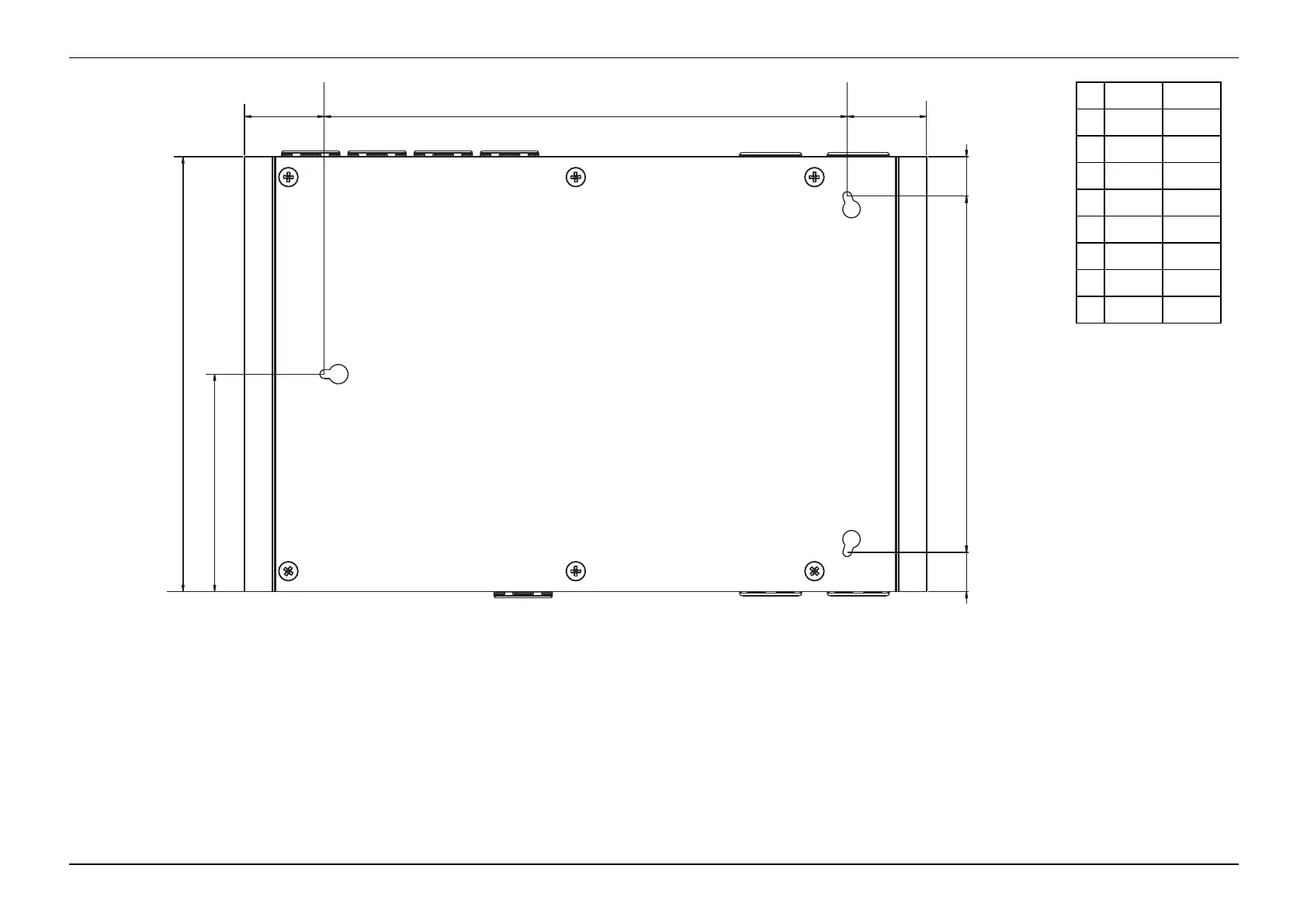

Figure2-11: Rear Dimensions with hole locations for direct mounting
