VESDA-EVEP-A10-P Product Guide

www.xtralis.com 85

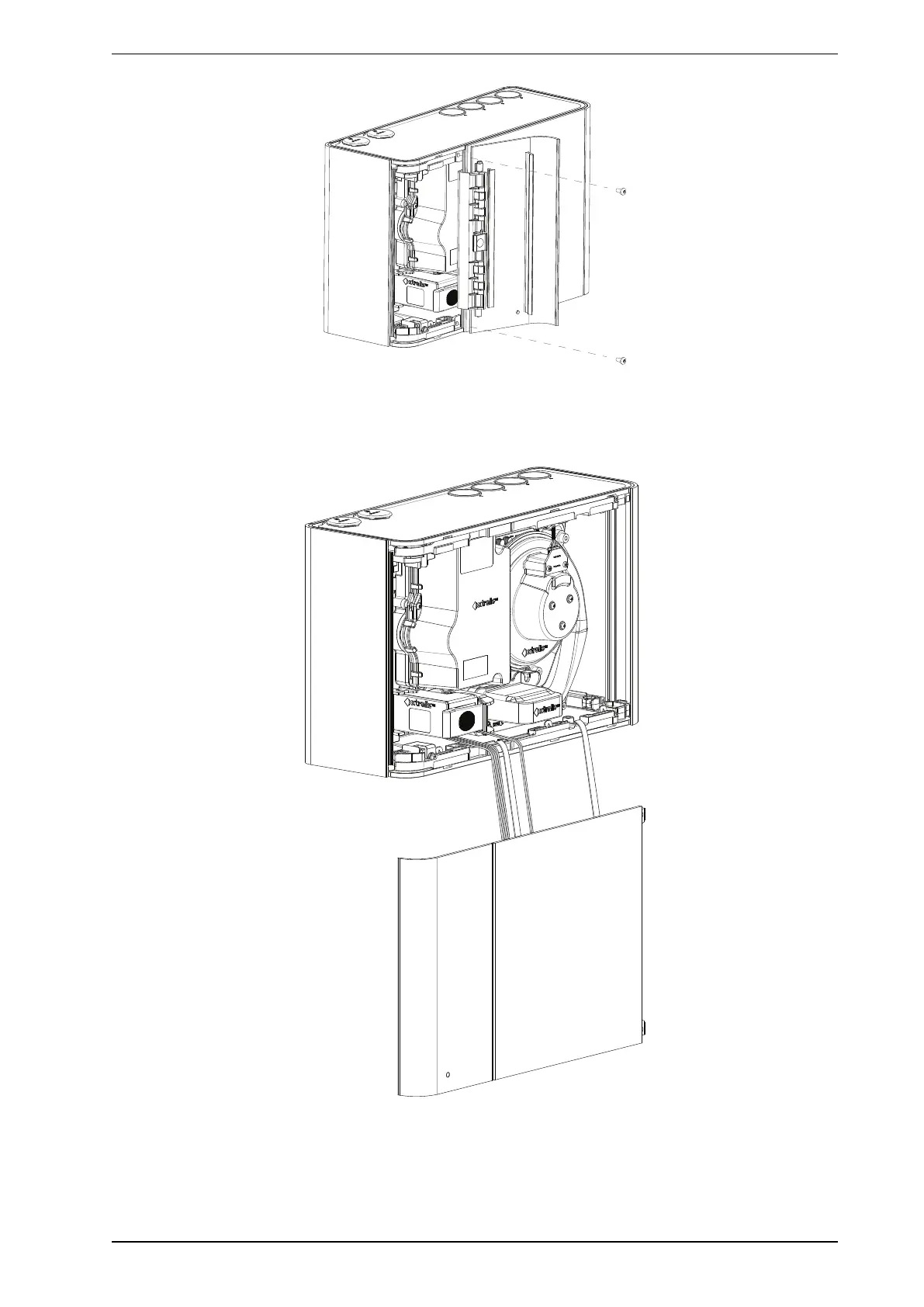

Figure7-8: Fascia removal - remove screws

2. Remove the fascia and allow it to hang by the two tether straps.

Figure7-9: Fascia hanging on two tethers
