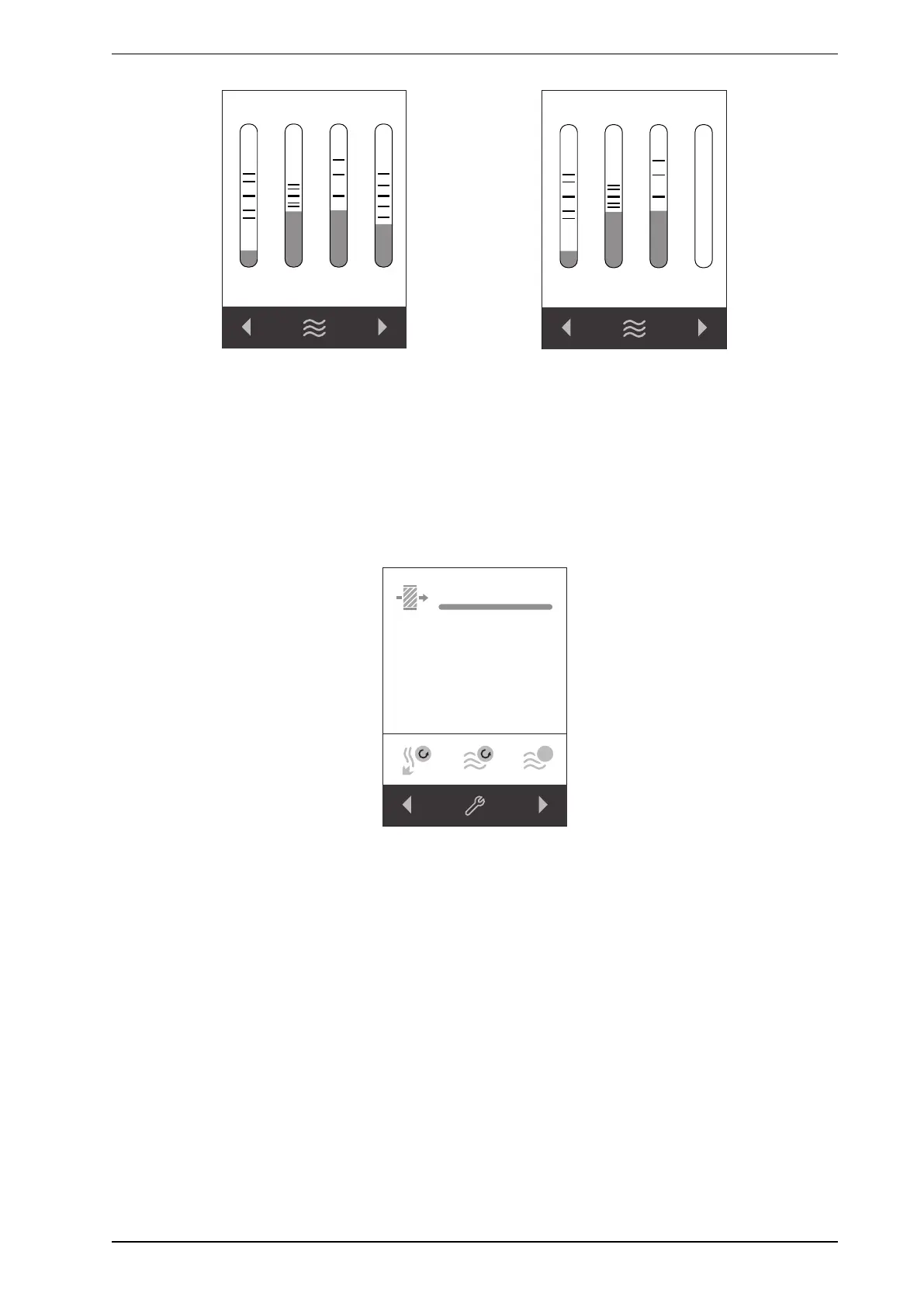

Figure2-5: Airflow Screen
1
25%
2
78%
3
80%
X
0%
Figure2-6: Airflow Screen with a disabled
Sampling Pipe
Note: VEP-A10-2P detectors show only two pipes.
Status Screen
The Status screen displays a usage indicator for the filter and status information for the Normalization,
AutoLearn Smoke and AutoLearn Flow functions.
Note: Refer to Chapter 6 for further information on the Normalization, AutoLearn Smoke and AutoLearn
Flow functions.
0%
%
Figure2-7: Status Screen
Navigation
Press Left or Right arrows at the bottom of the screen to cycle through the available screens.
2.4 Internal Buttons
AutoConfig
l To normalize the detector, press and hold the button until the AutoConfig LED illuminates continuously
(approximately 2 seconds), then release the button.
l To initiate AutoLearn Smoke and Flow, press and hold the AutoConfig button until the AutoConfig
LEDstarts flashing (approximately 15 seconds), then release the button.
l Cancel the AutoLearn or Normalization functions by pressing and holding the AutoConfig button for 5
seconds. The LED will turn off. If AutoLearn is halted, the flow and smoke thresholds will be left at the
previous settings.
