Xtralis VESDA-E VEP-A10-P User Manual

VESDA-EVEP-A10-P Product Guide
www.xtralis.com 33
Upright
Detector
Inverted
Detector

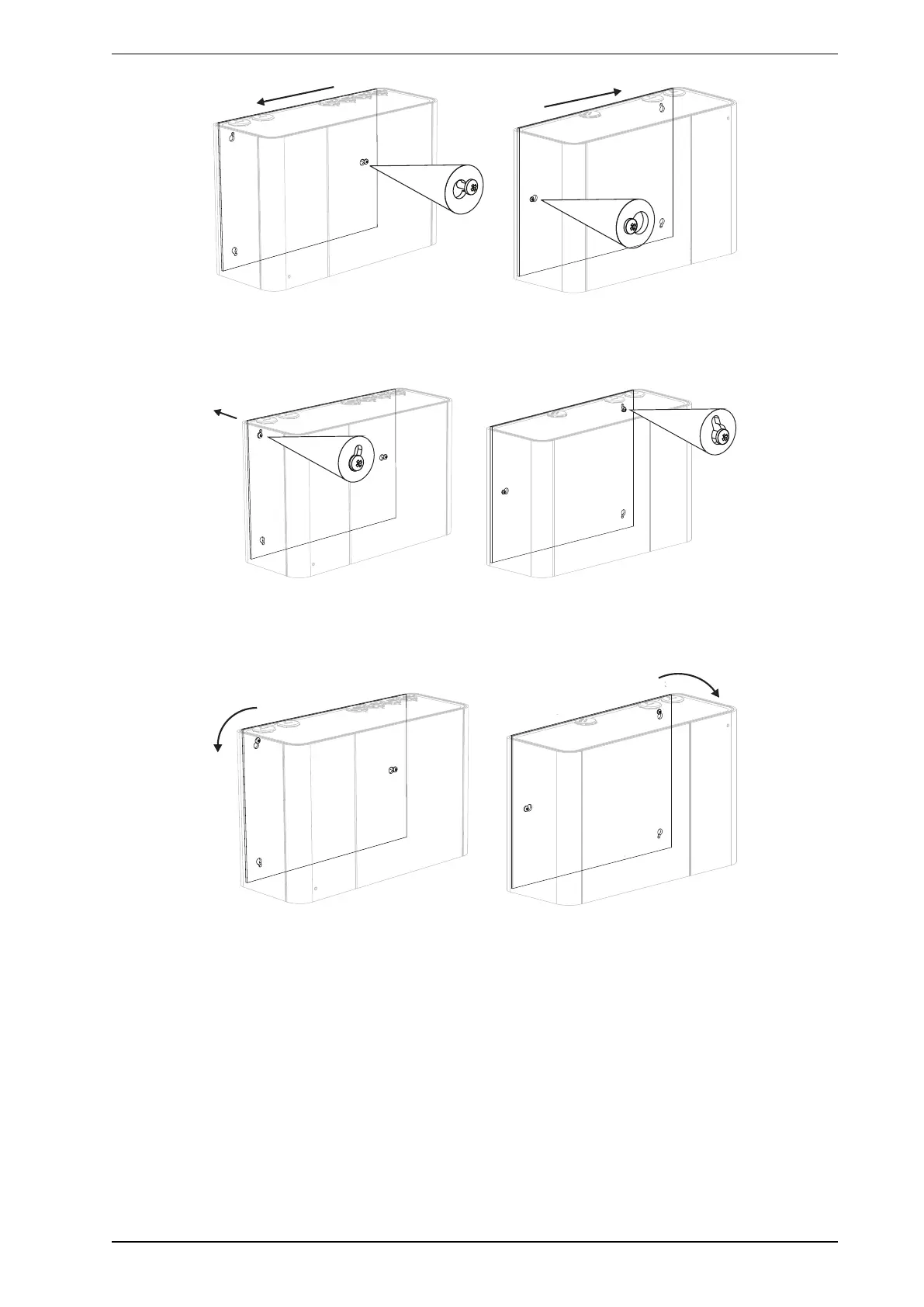

Figure4-28: Slide detector to the left
l Rotate the detector clockwise to position the large end of the detector’s top-left, or top-right for an
inverted detector, keyhole over the head of screw B. Push the detector to the wall (Figure4-29).
B
B
Upright
Detector
Inverted
Detector
Figure4-29: Position detector on the second screw
l Rotate the detector anticlockwise, or clockwise for an inverted detector, to lock the detector on to the
screw (Figure4-30).
Upright
Detector
Inverted
Detector
Figure4-30: Rotate the detector
12. Insert an M4 screw at the small end of the detector’s bottom-left, or bottom-right for an inverted detector,
keyhole (Figure4-31).
