Yamaha DSP-A2 Owner's Manual

13
English
4 Speaker System
Basic system.
You can enjoy widely diffused sound by only adding a pair of
rear speakers to a basic stereo speaker system.
1E. SYS. SETUP—Set to 5ch. (See page 27.)
1A. CENTER SP—Set to NONE. (See page 26.)
6 Speaker System
Good for sound fields from 2-channel stereo sources.
When a normal stereo source is played back with the sound
field programs No. 1 through No. 7, a sound effect matching
that of a 7-speaker system can be obtained. The addition of
front left and right effect speakers produces a more effective
sound field.
1E. SYS. SETUP—Set to 7ch. (See page 27.)
1A. CENTER SP—Set to NONE. (See page 26.)
5 Speaker System
Good for Audio/Video sources.
By the use of a center speaker, center sounds (dialog, vocals
etc.) are precisely localized.
1E. SYS. SETUP—Set to 5ch. (See page 27.)
1A. CENTER SP—Set to LRG or SML. (See page 26.)
7 Speaker System
This is the recommended speaker system, providing the
best sound effects.
The rear speakers and the front effect speakers produces a
360-degree sound field, and the center speaker provides
precise center localization.
You can experience the amazing YAMAHA “CINEMA DSP”
sound fields completely with the 7 speaker system.
1E. SYS. SETUP—Set to 7ch. (See page 27.)
1A. CENTER SP—Set to LRG or SML. (See page 26.)

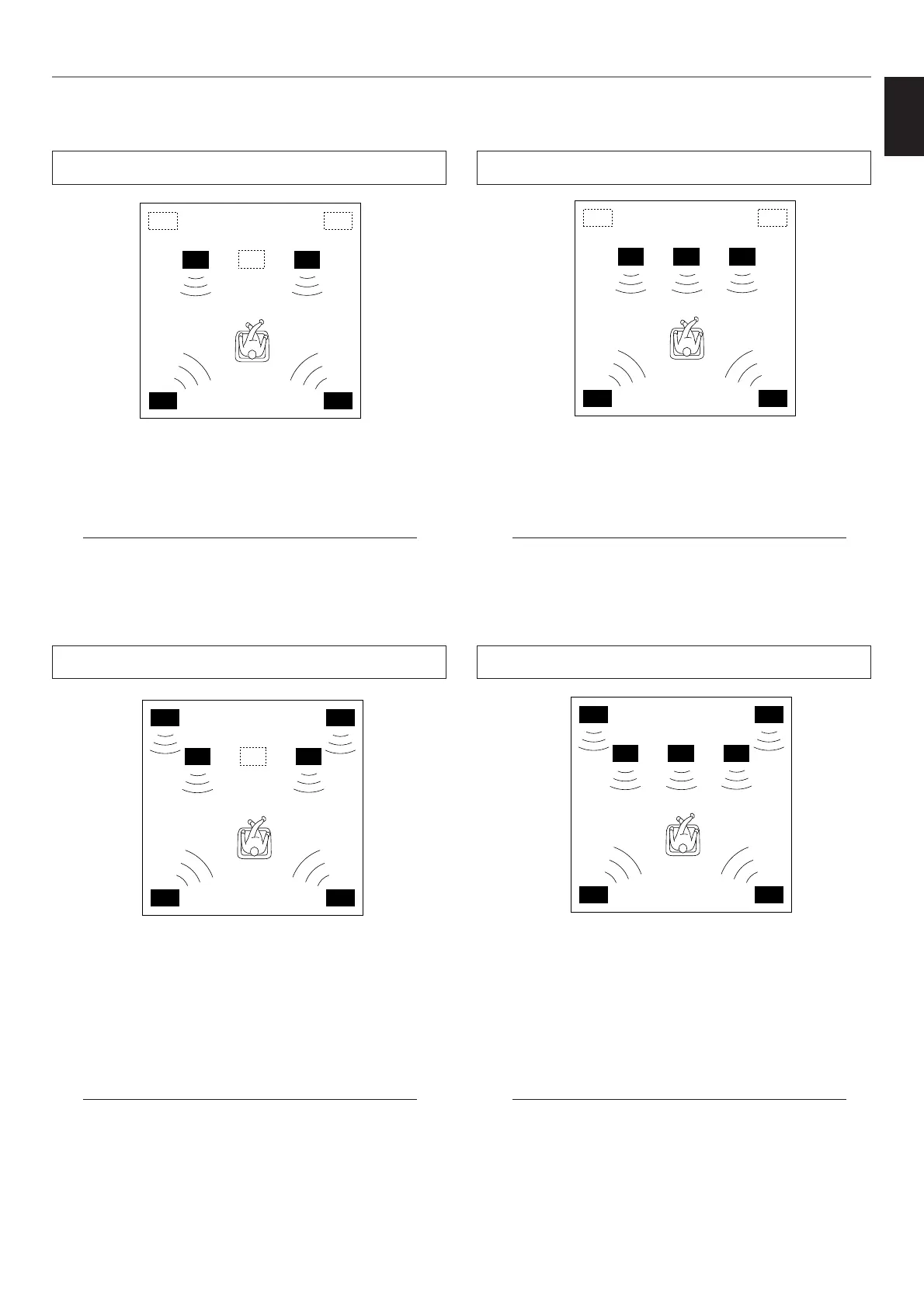

m Recommended speaker system configurations
PREPARATION

Yamaha DSP-A2 Specifications

General

Frequency Response	20Hz - 20kHz
Total Harmonic Distortion	0.015%
Type	AV Amplifier
Input Sensitivity	200 mV (Line)
Channel Separation	60 dB
Speaker Load Impedance	4-16 ohms
Video Connections	Composite, S-Video
Surround Sound Formats	Dolby Digital, DTS
Signal-to-Noise Ratio	100 dB
Dimensions	435 x 171 x 476 mm
Damping Factor	80 (8 ohms, 1kHz)
Digital Inputs	2 Coaxial
DSP Modes	Cinema DSP
Inputs	Phono
Outputs	Speaker Outputs
