Yamaha DSP-A2 Owner's Manual

14
Caution: Plug in this unit and other components after all connections are completed.
All connections must be correct, that is to say L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. Also refer to the owner’s manual for
each of your components.
Audio/video source equipment
●
Use RCA type pin plug cables for audio/video units with the exception described later.
●
The output (or input) terminals of YAMAHA audio/video units numbered as 1, 2, 3, 4, etc. on the rear panel must be
connected to the same-numbered terminals of this unit.
VIDEO
DVD/LD
TV/DBS
IN
VCR 1
OUT
IN
TUNER
VCR 2
OUT
VIDEO
S VIDEO
DVD/LD
TV/DBS
IN
VCR 1
OUT
IN
VCR 2
OUT
MONITOR
OUT
S VIDEO
AUDIO SIGNAL VIDEO SIGNAL
EXTERNAL DECODER INPUT
2
MAIN
SUB WOOFER CENTER
SURROUND
TV/DBS
CD
CD
DVD/LD
TAPE/MD
IN
(PLAY)
OUT
(REC)
DVD/LD
COAXIAL
OPTICAL
DIGITAL
RF SIGNAL
DIGITAL SIGNAL
GND
PHONO
1
CD
TAPE/MD
3
4
IN
( PLAY )
OUT
( REC )
AUDIO SIGNAL
OUTPUT
GND
OUTPUT
OUTPUT
LINE OUT
LINE IN
(Europe model)
Turntable
MD recorder,
Tape deck, etc.
CD player
Tuner

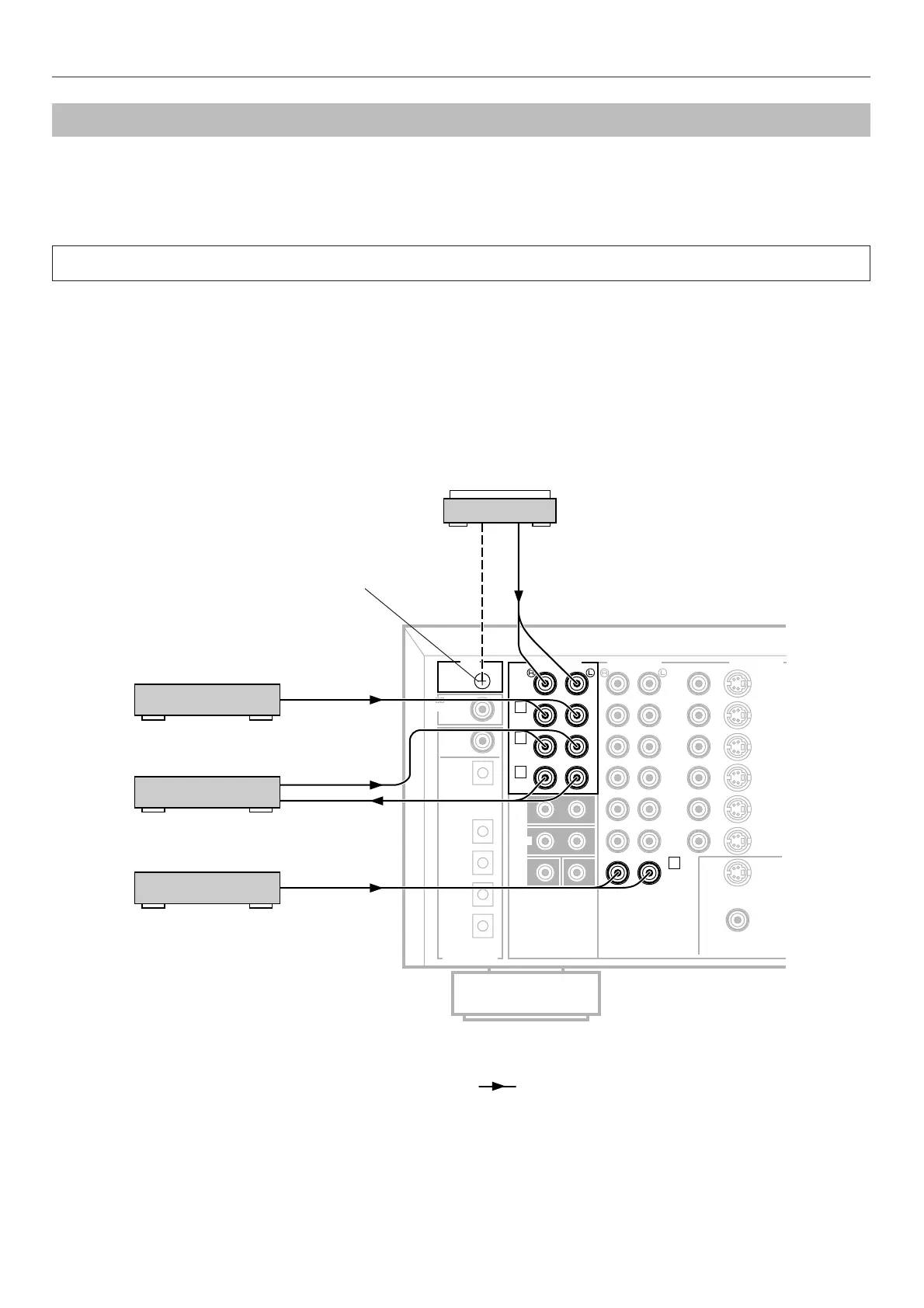

m Basic connections of audio units
(*1): GND terminal (For turntable use)
Connecting the ground wire of the turntable to the GND
terminal will normally minimize hum, but in some cases
better results may be obtained with the ground wire
disconnected.
: Indicates the direction of signals.
Connections
PREPARATION
(*1)

Yamaha DSP-A2 Specifications

General

Frequency Response	20Hz - 20kHz
Total Harmonic Distortion	0.015%
Type	AV Amplifier
Input Sensitivity	200 mV (Line)
Channel Separation	60 dB
Speaker Load Impedance	4-16 ohms
Video Connections	Composite, S-Video
Surround Sound Formats	Dolby Digital, DTS
Signal-to-Noise Ratio	100 dB
Dimensions	435 x 171 x 476 mm
Damping Factor	80 (8 ohms, 1kHz)
Digital Inputs	2 Coaxial
DSP Modes	Cinema DSP
Inputs	Phono
Outputs	Speaker Outputs
