Yamaha DSP-A2 Owner's Manual

43
English

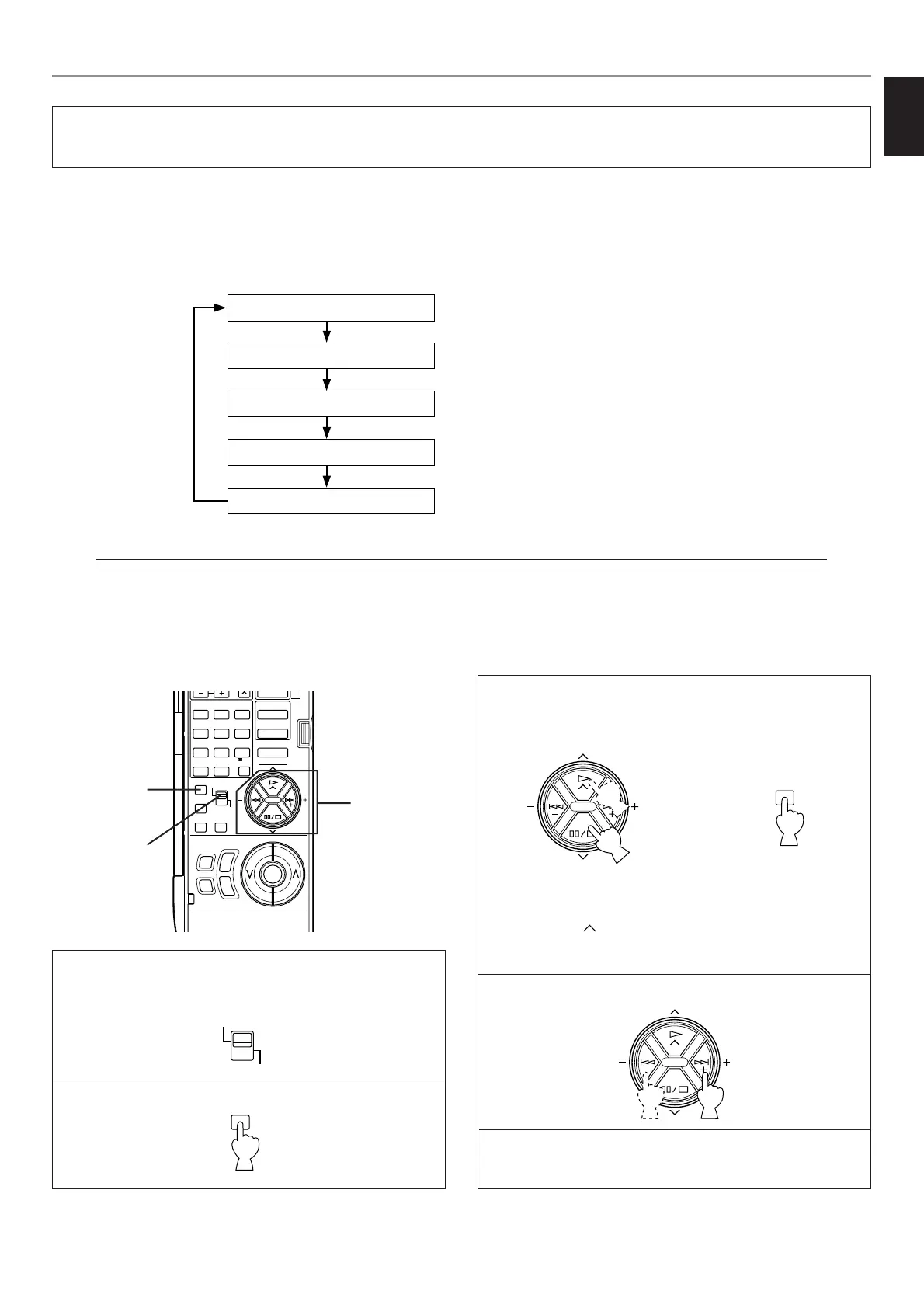

Adjusting output level of the center, right rear, left rear, front effect speakers
and subwoofer
You can adjust the sound output level of the each speaker
even if the output level is already set in “Speaker balance
adjustment” on pages 29 to 31.
1 Set the PARAMETER/SET MENU switch on the remote
controller to the PARAMETER position.
2
3 Press one of the keys shown below once or more until
the name of the speaker(s) whose level you want to
adjust appears on the display.
Whenever pressed, the selection changes as the above chart
shows.
* Pressing the key on the remote controller changes the
selection in the reverse order.
4 Adjust the level on the selected speaker(s).
5 Repeat steps 2 and 3 to make adjustments on the other
speaker(s).
CENTER
R SUR.
L SUR.
FRONT
SWFR
(Center speaker output level)
(Right rear speaker output level)
(Left rear speaker output level)
(Front effect speaker output level)
(Subwoofer output level)
m Method of adjustment
This adjustment can be made only by using the remote controller.
Note: The cover of the remote controller must be open.
LEVEL
LEVEL
PARAMETER
SET MENU
or
EXT. DEC.
PHONO
EFFECT
ON/OFF
V-AUX
CHURCH
123
CLUB
ENTER-
TAINMENT
JAZZ
STADIUM
THEATER 1
MOVIE
THEATER 2
MOVIE
VIDEO
CONCERT
THEATER
TV
CONCERT
ROCK
456
HALL 1 HALL 2
789
PARAMETER
SET MENU
SLEEP ON SCREEN
LEVEL
TEST
MASTER VOLUME
TV
VCR
STANDBY
SYSTEM
POWER ON
10 11
MUTE
/ DTS
SURROUND
12
2, 3
3, 4
1
BASIC OPERATION

Yamaha DSP-A2 Specifications

General

Frequency Response	20Hz - 20kHz
Total Harmonic Distortion	0.015%
Type	AV Amplifier
Input Sensitivity	200 mV (Line)
Channel Separation	60 dB
Speaker Load Impedance	4-16 ohms
Video Connections	Composite, S-Video
Surround Sound Formats	Dolby Digital, DTS
Signal-to-Noise Ratio	100 dB
Dimensions	435 x 171 x 476 mm
Damping Factor	80 (8 ohms, 1kHz)
Digital Inputs	2 Coaxial
DSP Modes	Cinema DSP
Inputs	Phono
Outputs	Speaker Outputs
