Yamaha DSP-A2 Owner's Manual

24
•
After completing all connections, plug the AC power cord
into an AC outlet.
•
Unplug the AC power cord from the AC outlet if this unit is
not to be used for a long period of time.
VOLTAGE SELECTOR
TION MANUAL FOR CORRECT SETTING.
A
B
REAR
MAIN
SWITCHED
AC OUTLETS
I00W
MAX.
TOTAL
CENTER : 4 Ω MIN. / SPEAKER
FRONT :6 Ω MIN. / SPEAKER
REAR :6 Ω MIN. / SPEAKER
MAIN A OR B :4 Ω MIN. / SPEAKER
A B :8 Ω MIN. / SPEAKER
CENTER : 8 Ω MIN. / SPEAKER
FRONT :8 Ω MIN. / SPEAKER
REAR :8 Ω MIN. / SPEAKER
MAIN A OR B :8 Ω MIN. / SPEAKER
A B : I 6 Ω MIN. / SPEAKER
( SURROUND )
SET BEFORE POWER ON
IMPEDANCE SELECTOR
SPEAKERS
To AC outlet
(General model)

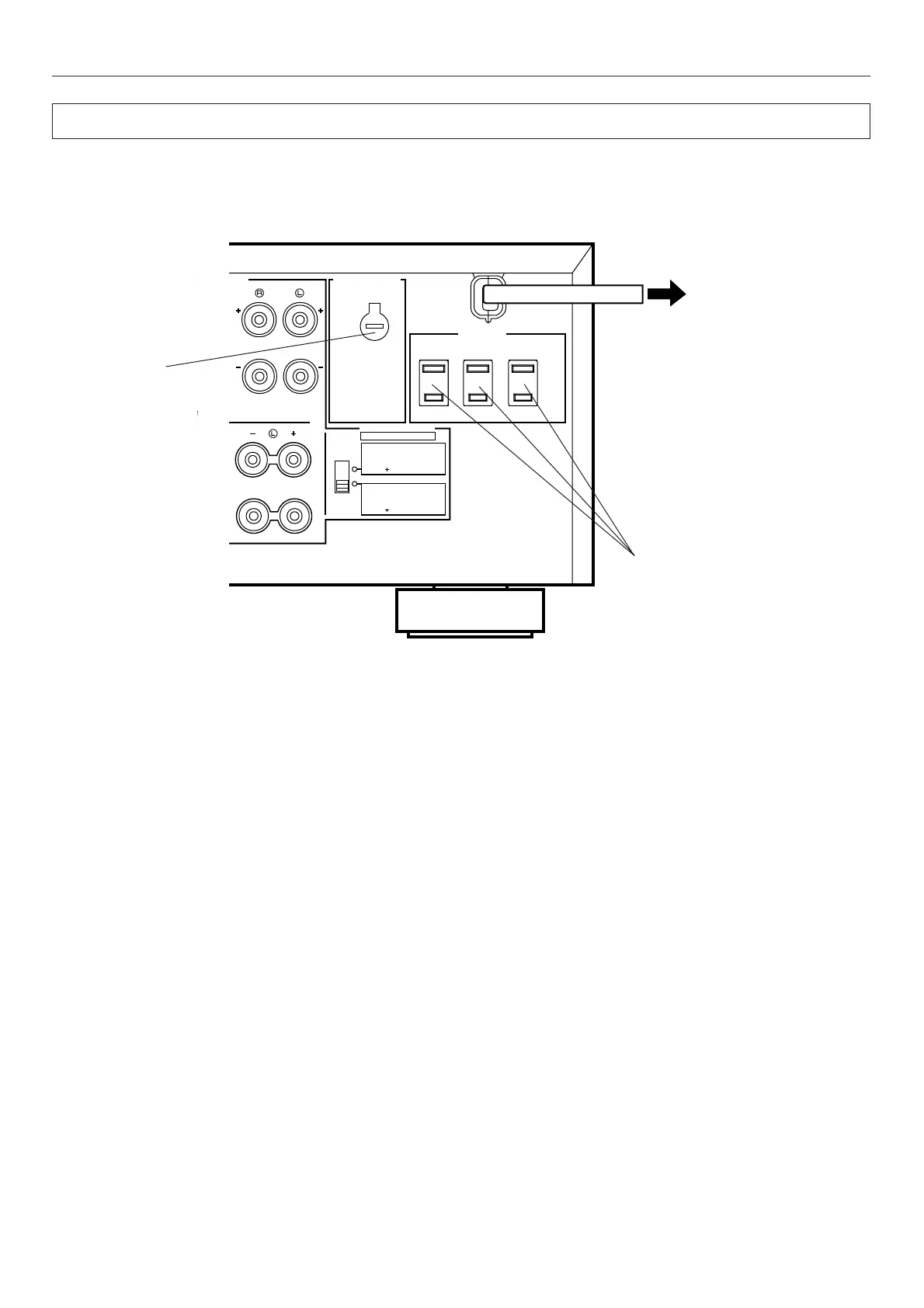

Plugging in this unit
AC OUTLET(S)
(Europe, China and General models)
.......................................................... 3 SWITCHED OUTLETS
(U.K. model) ........................................ 1 SWITCHED OUTLET
Use these to connect the power cords of your components to
this unit.
The power to the SWITCHED outlets is controlled by this unit’s
STANDBY/ON switch or the remote controller’s SYSTEM
POWER ON and STANDBY keys. These outlets will supply
power to any connected unit whenever this unit is turned on.
The maximum power (total power consumption of components)
that can be connected to the SWITCHED AC OUTLET(S) is
100W.
Voltage Selector (China and General models
only)
The voltage selector on the rear panel of this unit must be
set for your local main voltage BEFORE plugging into the
AC main supply.
Voltages are 110/120/220/240 V AC, 50/60 Hz.
PREPARATION
(*1): (*2):
(*1)
(*2)

Yamaha DSP-A2 Specifications

General

Frequency Response	20Hz - 20kHz
Total Harmonic Distortion	0.015%
Type	AV Amplifier
Input Sensitivity	200 mV (Line)
Channel Separation	60 dB
Speaker Load Impedance	4-16 ohms
Video Connections	Composite, S-Video
Surround Sound Formats	Dolby Digital, DTS
Signal-to-Noise Ratio	100 dB
Dimensions	435 x 171 x 476 mm
Damping Factor	80 (8 ohms, 1kHz)
Digital Inputs	2 Coaxial
DSP Modes	Cinema DSP
Inputs	Phono
Outputs	Speaker Outputs
