Yamaha DSP-A2 Owner's Manual

16
(Europe model)
No connection
TV monitor
Scart-plug connector
cable
MAIN
PRE
OUT
MAIN
IN
COUPLER
IN
TUNER
VCR 2
OUT
VIDEO
S VIDEO
IN
VCR 2
OUT
MONITOR
OUT
EXTERNAL DECODER INPUT
2
MAIN
SUB WOOFER CENTER
SURROUND
TV/DBS
TAPE/MD
IN
(PLAY)
OUT
(REC)
DVD/LD
DIGITAL SIGNAL
VIDEO
AUDIO L
AUDIO R

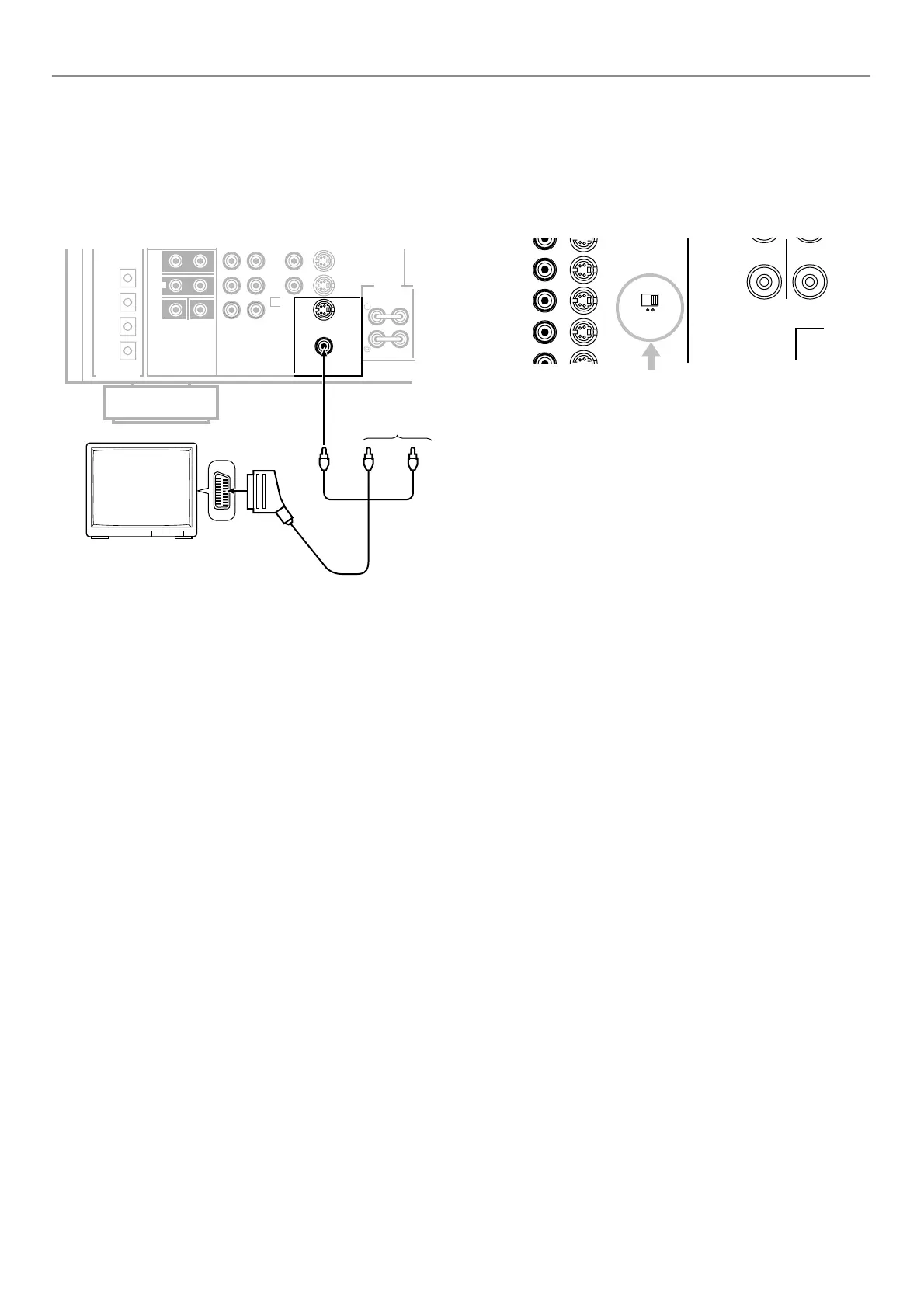

For connecting with a TV monitor that uses a 21 pin
connector for input (Europe and U.K. models only)
Make a connection as figured below with a commercially
available scart-plug connector cable.
PAL/NTSC switch (China and General models only)
This unit is designed for use with the NTSC and PAL television
formats. Set this switch to the position for the format your TV
monitor employs.
PAL: Set to this position if your TV monitor employs the
PAL format.
* Outputs signals in the PAL format no matter which
format (PAL or NTSC) of video signal is sent from
an external video unit to this unit.
NTSC: Set to this position if your TV monitor employs the
NTSC format.
* Outputs signals in the NTSC format no matter which
format (PAL or NTSC) of video signal is sent from
an external video unit to this unit.
Note
Be sure to input a video signal which employs the same format
that your TV monitor employs, otherwise a picture will not be
played back normally.
CAUTION
IN
VCR 1
OUT
IN
VCR 2
PAL NTSC
PAL/NTSC switch
PREPARATION

Yamaha DSP-A2 Specifications

General

Frequency Response	20Hz - 20kHz
Total Harmonic Distortion	0.015%
Type	AV Amplifier
Input Sensitivity	200 mV (Line)
Channel Separation	60 dB
Speaker Load Impedance	4-16 ohms
Video Connections	Composite, S-Video
Surround Sound Formats	Dolby Digital, DTS
Signal-to-Noise Ratio	100 dB
Dimensions	435 x 171 x 476 mm
Damping Factor	80 (8 ohms, 1kHz)
Digital Inputs	2 Coaxial
DSP Modes	Cinema DSP
Inputs	Phono
Outputs	Speaker Outputs
