m Connecting to S VIDEO terminals
If your video cassette recorder, LD player, etc. and your
monitor are equipped with “S” video terminals, connect them to
this unit’s S VIDEO terminals, and connect this unit’s S VIDEO
MONITOR OUT terminal to the “S” video input of your monitor.
With this connection, you can play back and record high quality
pictures. Otherwise, connect the “composite” video terminals
from your video cassette recorder, LD player, etc. to the
VIDEO terminals of this unit, and connect this unit’s VIDEO
MONITOR OUT terminal to the “composite” video input of your
monitor.
Note
If video signals are sent to both S VIDEO input and VIDEO
input terminals, the signals will be sent to their respective
output terminals.
Notes about the Video superimpose
●
If you watch a video source that is connected to both S
VIDEO and VIDEO input terminals of this unit, signals of
screen display information are output from only the S
VIDEO MONITOR OUT terminal.
●
When no video signal is input to either S VIDEO or VIDEO
input terminals of this unit, signals of screen display
information are output from both S VIDEO MONITOR OUT
and VIDEO MONITOR OUT terminals with a color
background.
* For China and General models, if the PAL/NTSC switch
on the rear panel is set to “PAL”, nothing will be output
from either S VIDEO MONITOR OUT or VIDEO
MONITOR OUT terminal in this case.
S VIDEO terminals
This unit provides you with S VIDEO terminals in addition
to standard type VIDEO terminals.
S VIDEO terminals transmit video signals separated into
luminance (Y) signals and color (C) signals. In comparison
with S VIDEO terminals, standard type VIDEO terminals
transmit “composite” video signals.

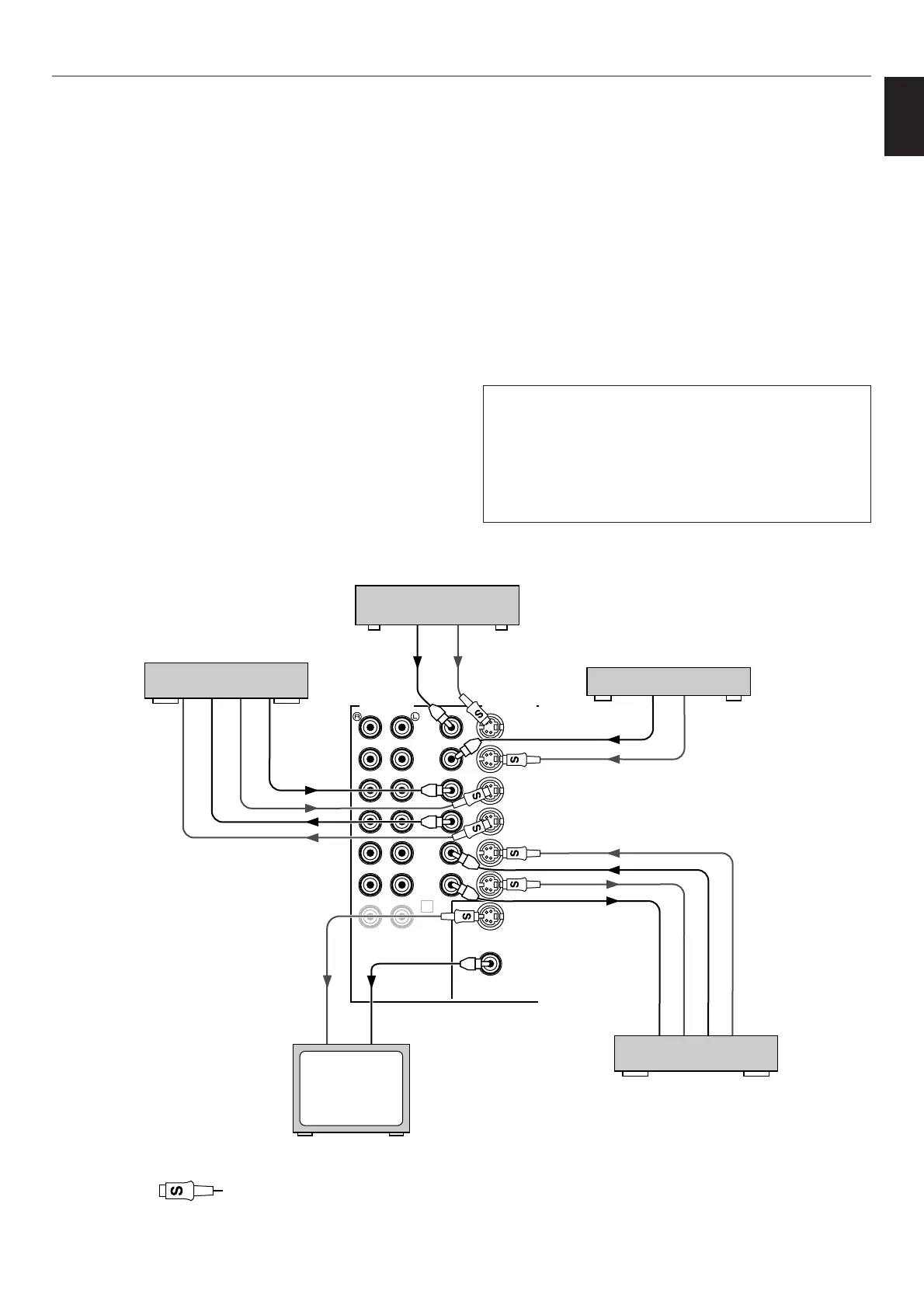

LD player or DVD player
TV/Satellite tuner
Video cassette recorder 1
Video cassette recorder 2
TV monitor
PREPARATION
: S-video cable
To Next Page
