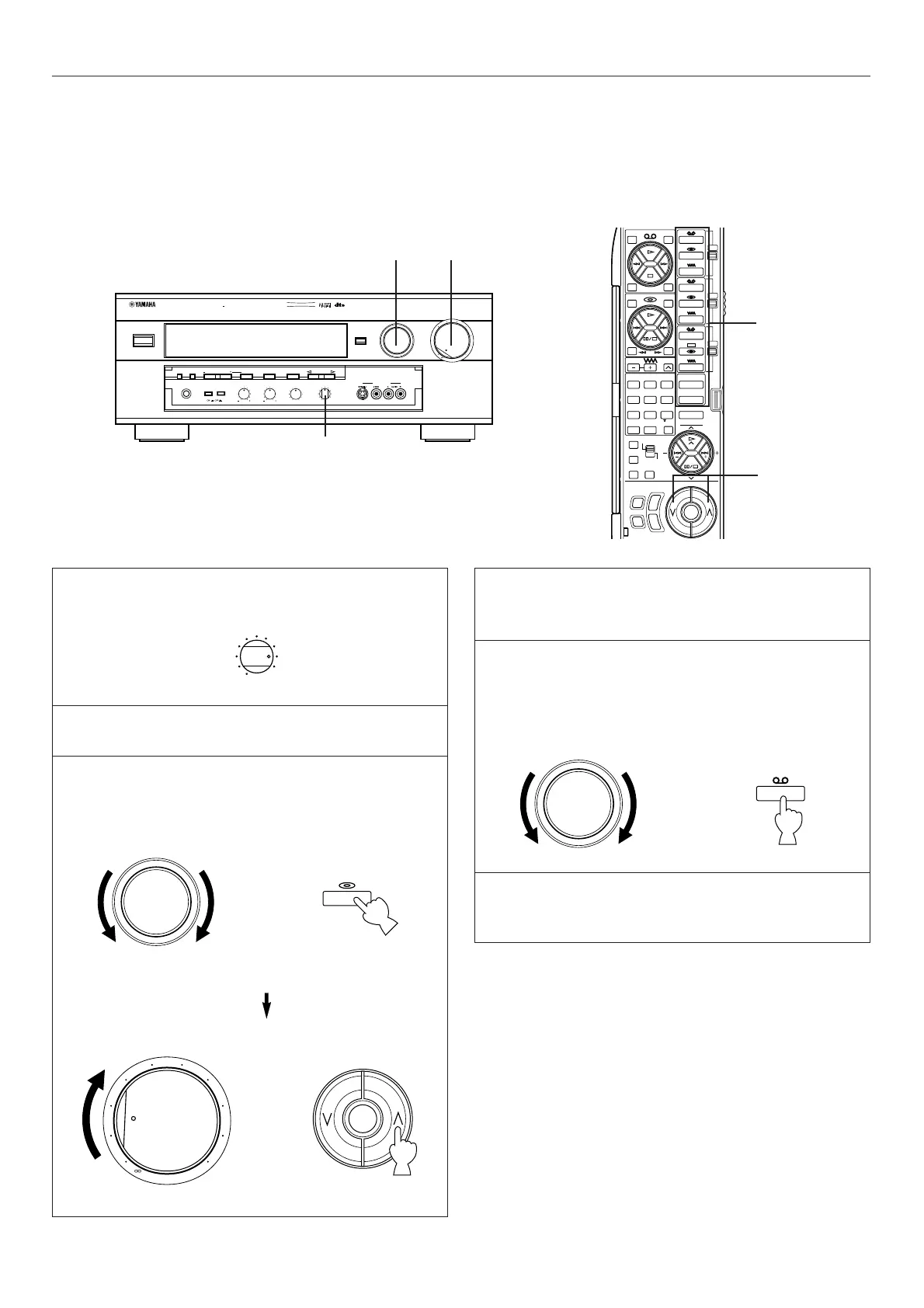

m Recording a source to tape (or MD) while listening to (or watching) another
source
The source (except for “SOURCE”) that is selected with the REC OUT selector can be recorded to a tape deck (MD recorder)
and/or VCR, regardless of the INPUT SELECTOR setting.
1 Select the source you want to record.
2 Play the source.
3 Select the source with the INPUT SELECTOR and
adjust the VOLUME control to check the sound output.
4 Begin recording on the tape deck (or MD recorder etc.)
or VCR.
5 The sound and/or picture of the recording can be
monitored by selecting the tape deck (or VCR) with the
INPUT SELECTOR.
6 Selecting another source to enjoy with the INPUT
SELECTOR will not effect the recording.
Note: The cover must be open when using the remote controller.
