Yamaha F25A - Page 128

5-8
E
POWR
RECOIL STARTER

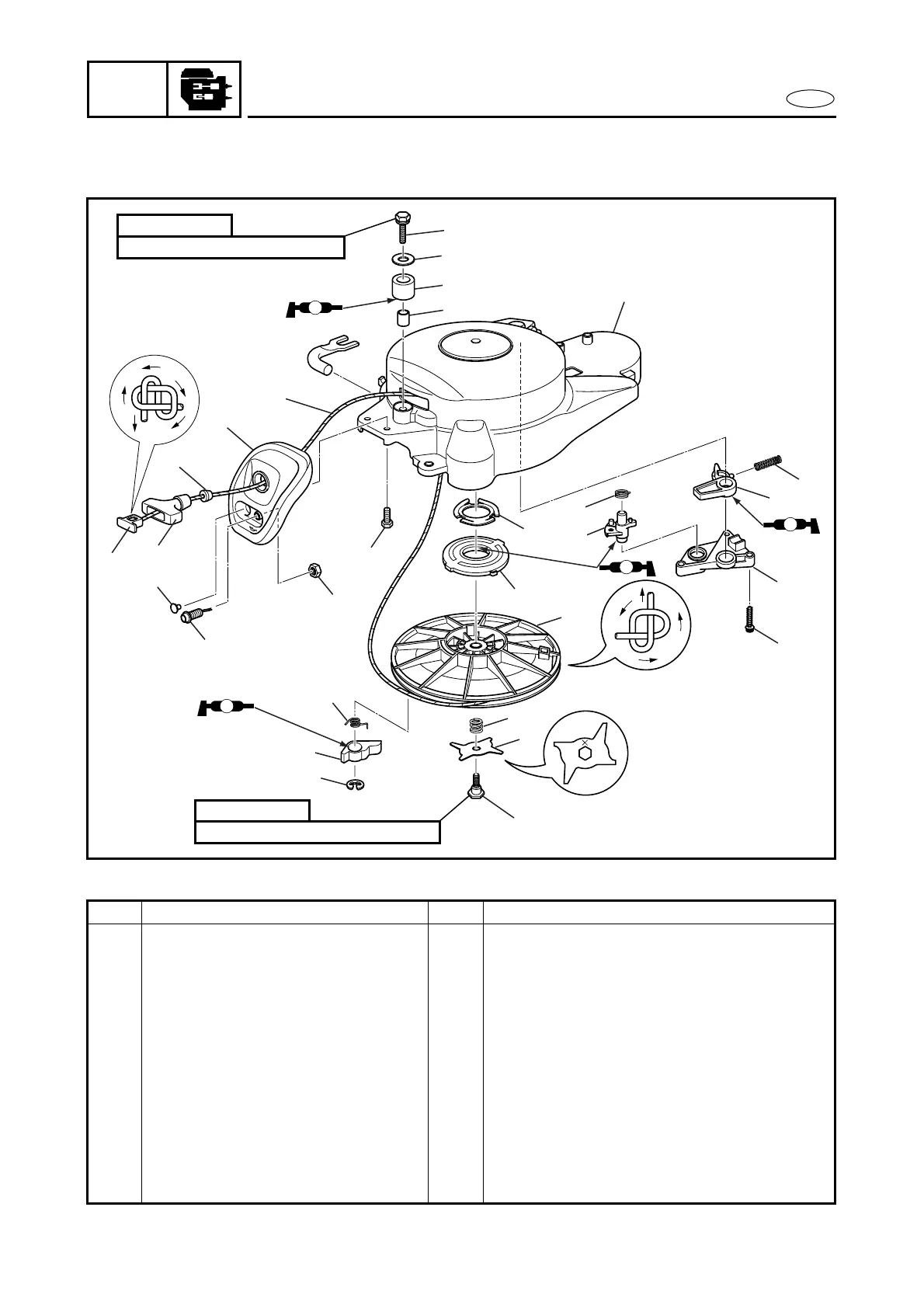

EXPLODED DIAGRAM
25
26
28
27
21
20
6
7
4
5 3
2
2
1
24
23
22
14
15
17
16
18
19
12
13
10
11
9
8
A
A
A
A
6 × 30 mm
8.0 Nm (0.8 m
• kg, 5.9 ft • Ib)
6 × 25 mm
15.0 Nm (1.5 m
• kg, 11.1 ft • Ib)
Step Procedure/Part name Q’ty Service points
11 Lock cam 1
12 Spring 1
13 Lock cam base plate 1
14 Bolt 1
15 Drive plate 1
16 Starter pulley 1
17 Spring 1
18 Cartridge spring 1
19 Spring washer 1
20 Starter rope 1
21 Recoil starter case 1
22 Circlip 2
