Damping force (SRX700S)
1. Adjust:
• Damping force
Adjustment steps:

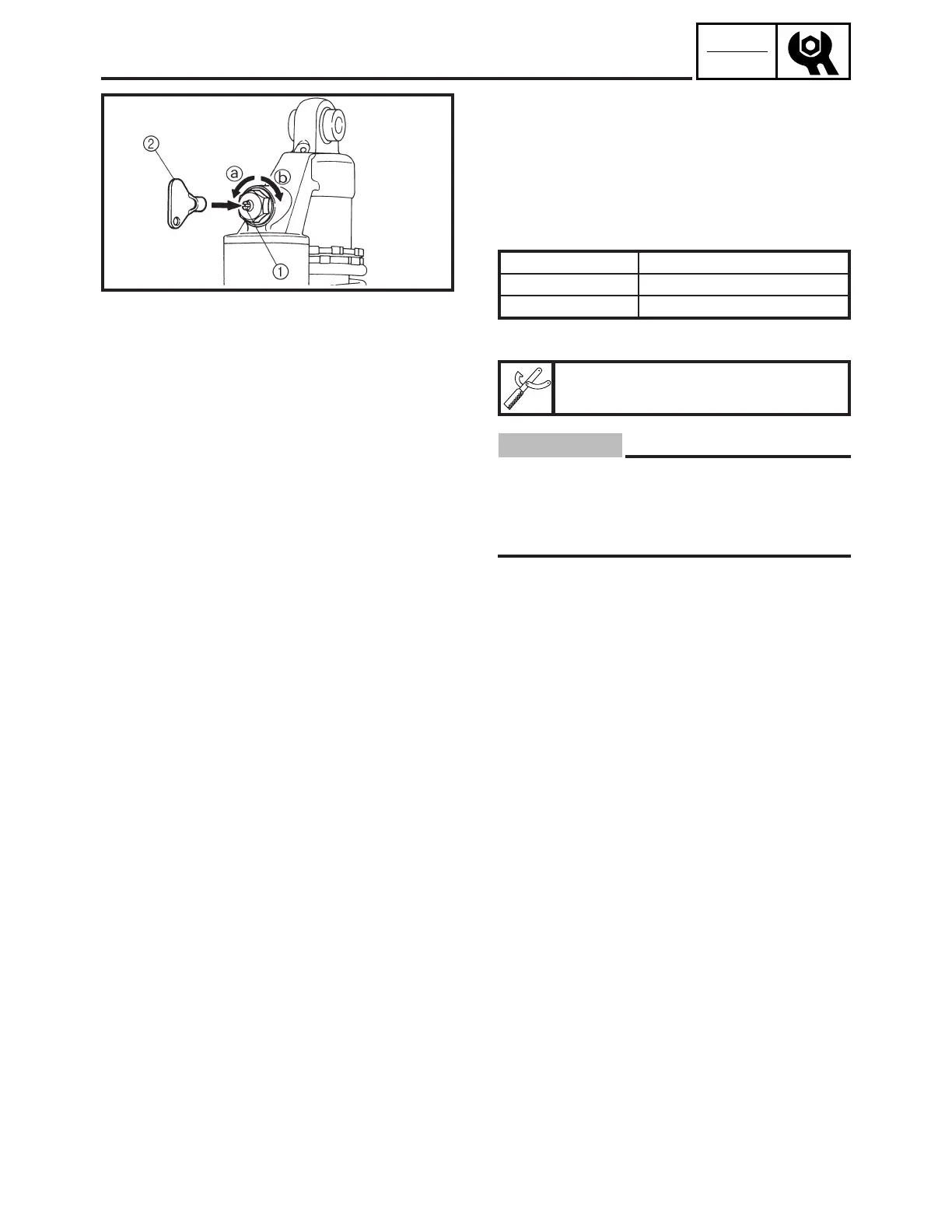

• Turn the adjusting screw 1 in or out with the
adjusting screwdriver 2.
Standard 8 Clicks out*
Minimum (hard) 1 Click out* (turns in
a
)
Maximum (soft)
16 Clicks out* (turns out b)
* From the fully turned-in position
Adjusting screwdriver:
8DE-23703-00
CAUTION:
• Never attempt to turn an adjuster beyond the
maximum or minimum setting.
• Be sure the left and right damping force is the
same.
SDN2A30
FRONT SUSPENSION
